6.9 inch screen with 480*1280 Resolution IPS LCD Touch Panel
The LTK069WXBCT11-V1 is a 6.86-inch IPS display with a 480x1280 resolution, designed for smart home applications. Featuring a luminance of 350 cd/m², it ensures clear, vibrant visuals. This model integrates a capacitive touch panel (CTP) with a G+G structure, using the GT9271 touch IC and IIC interface for smooth, responsive touch control. The display’s active area (60.22x160.59 mm) and compact outline (67.00x181.40x6.28 mm) make it ideal for various smart home devices. With an operating temperature range of -10°C to +60°C and storage temperatures from -20°C to +75°C, it offers durability and reliability for home automation systems.
- Product Details
| Size (inch) | 6.86'' |
| Part Number. |
LTK069WXBCT11-V1 |
|
Display Mode |
IPS |
|
Resolution |
480*1280 |
|
Interface |
MIPI |
|
Luminance (cd/m²) |
350 |
|
Active Area (mm) |
60.22*160.59 |
|

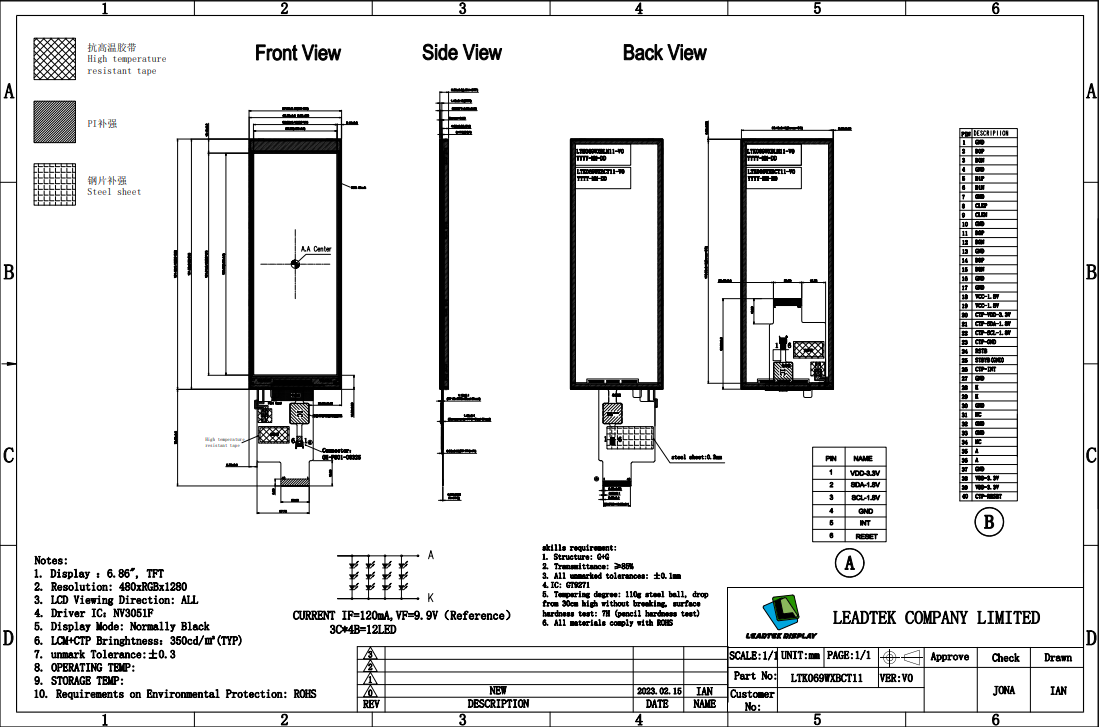

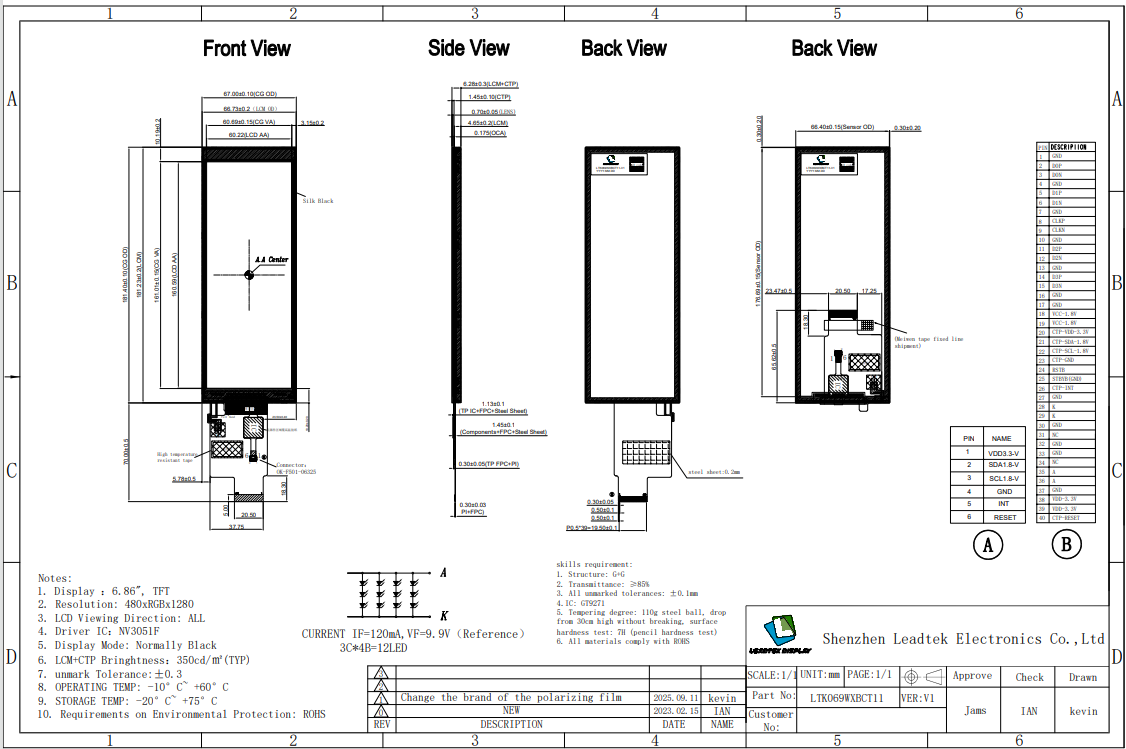

LCM+CTP Outline Dimension (mm) |
67.00*181.40*6.28 |
| Touch Screen | CTP |
| TP Structure | G+G |
| TP IC Model |
GT9271 |
| TP Interface |
IIC |
|
Operating Temp |
-10~+60℃ |
|
Storage Temp |
-20~+75℃ |
