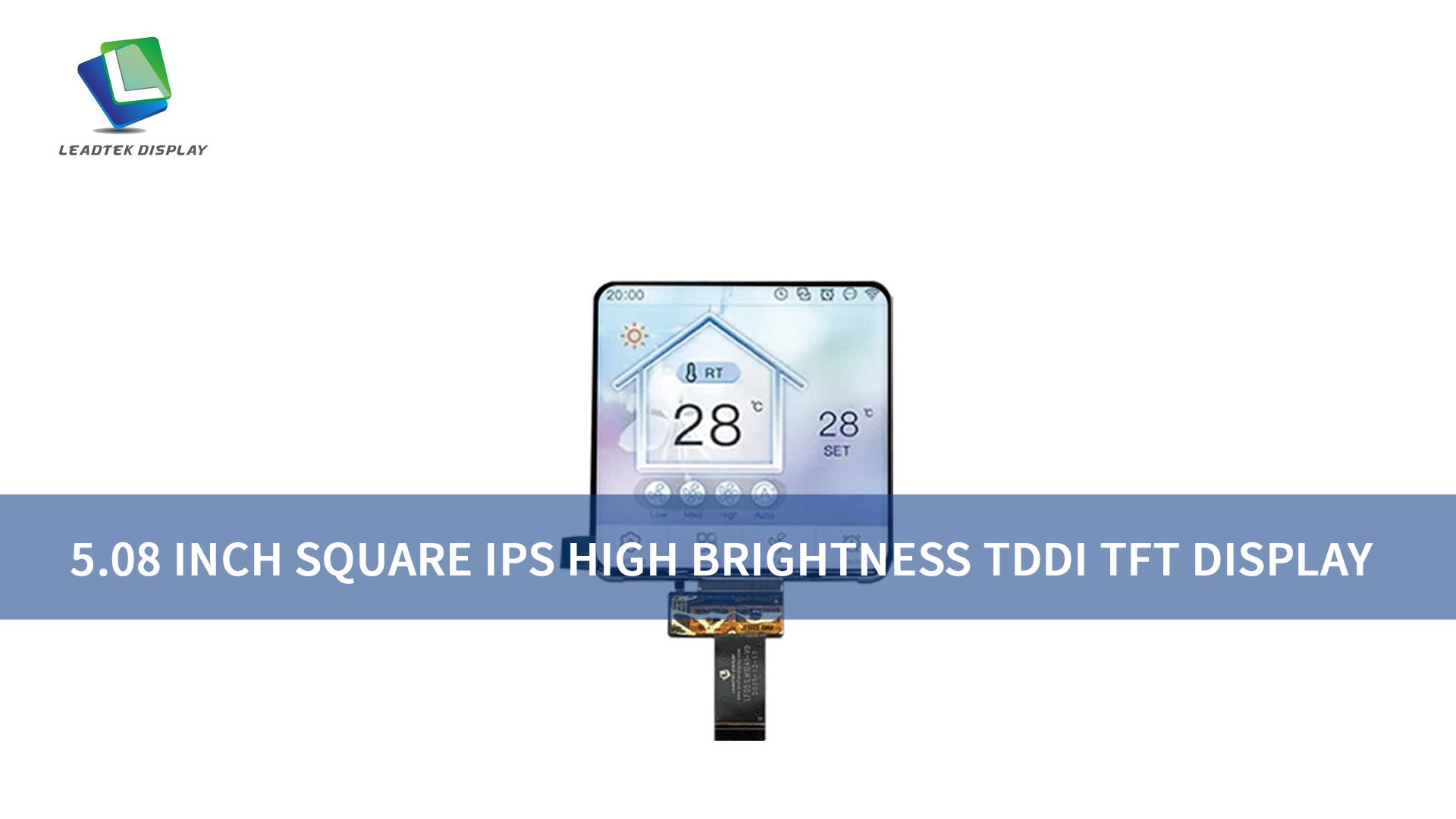

5.08 Inch Square IPS High Brightness TFT LCD Display with TDDI Technology
LTK051FTIIT10-V0 is a 5.08-inch IPS TFT LCD module with 720×720 resolution, delivering sharp and vivid display performance for smart home devices. Features advanced TDDI technology that integrates touch and display functions into a single IC solution, helping reduce overall module thickness, lower system cost, and simplify product integration. With 450 cd/m² high brightness, MIPI interface, and a compact ultra-thin design, it provides reliable performance and a modern user interaction experience.Designed for smart home applications such as smart control panels, smart speakers, and intelligent interactive terminals, it is ideal for compact and stylish device designs.
- Product Details
|
Part Number |
LTK051FTIIT10-V0 |
| Size(inch) | 5.08 |
|
Display Mode |
IPS |
|
Resolution |
720*720 |
|
Interface |
MIPI |
|
Luminance (cd/m²) |
450 |
| Touch Screen | CG |
| TP Interface | IIC |
|
Active Area(mm) |
91.37(W)*91.37(L) |
|
Outline Dimension(mm) |
106.07(W)*106.07(L)*2.97(T) |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
