3.95 Inch TDDI Square TFT LCD Display for Smart Home Control Panels
The LTK040FTBIT57-V0 is a 3.95-inch TDDI square TFT LCD display designed for smart home control panels. Featuring a 480 × 480 resolution, IPS technology, a MIPI display interface, and an IIC touch interface, it delivers clear visuals and responsive touch performance. The integrated TDDI design combines touch and display drivers into a single chip, enabling a thinner, lighter, and more durable structure while simplifying product design and improving reliability.

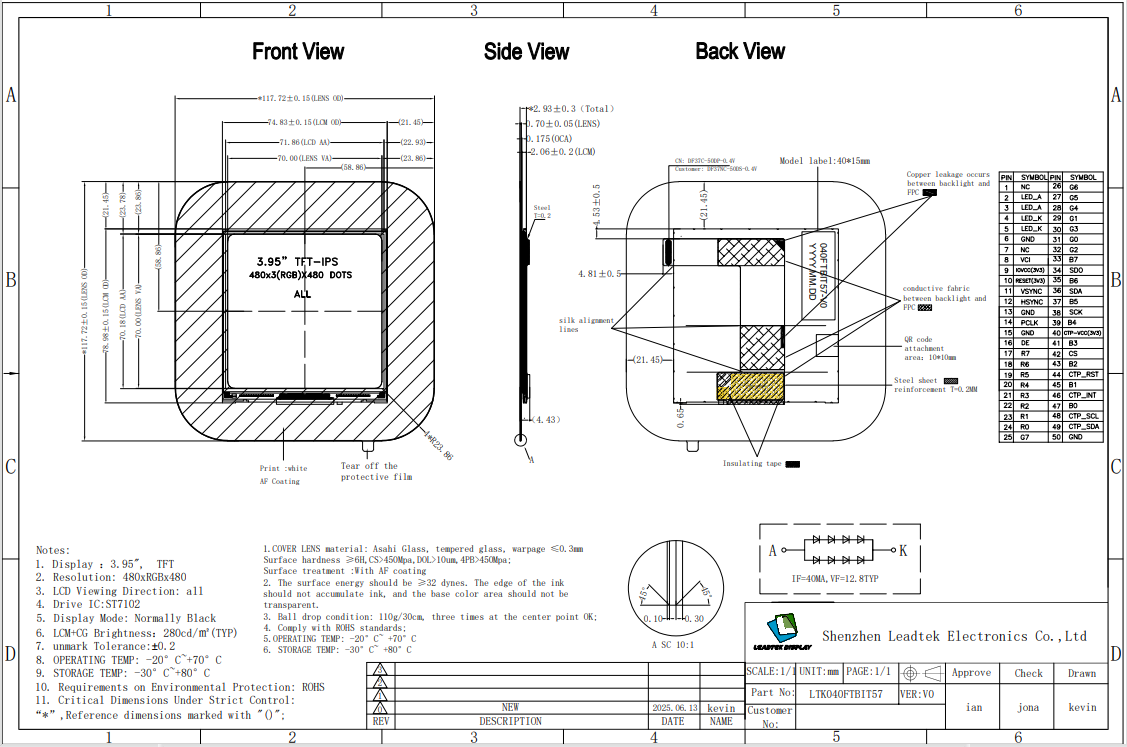

- Product Details
|
Part Number |
LTK040FTBIT57-V0 |
| Size(inch) | 3.95 |
|
Display Mode |
IPS |
|
Resolution |
480*480 |
|
Interface |
MIPI |
|
Luminance (cd/m²) |
260 |
| Touch Screen | NA |
| TP Structure | NA |
| TP Interface | IIC |
|
Active Area(mm) |
71.86(H)*70.18(V) |
|
Outline Dimension(mm) |
117.72(H)*117.72(V)*2.89(T) |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
