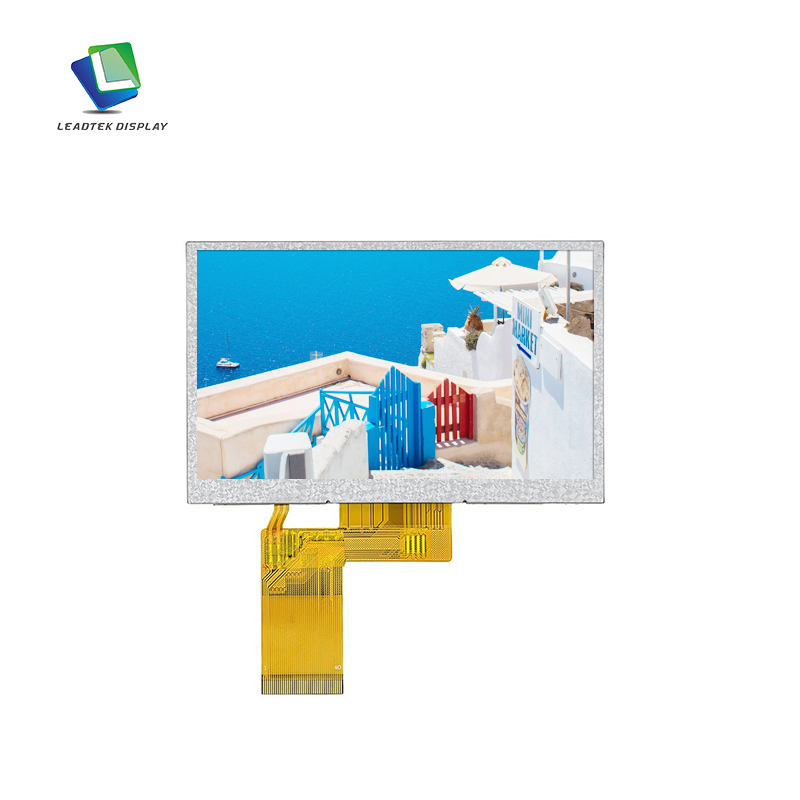

4.3 Inch LCD Screen TFT LCD Module 480*272 IPS Panel LCD Module
LTK043WQHLM01-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD and a driving circuit.This TFT LCD has a 4.3 inch diagonally measured active display area with (480*272 vertical pixel) resolution.
This model is composed of a TFT LCD and a driving circuit.This TFT LCD has a 4.3 inch diagonally measured active display area with (480*272 vertical pixel) resolution.
- Product Details
|
Module No |
LTK043WQHLM01-V0 |
|
Size (inch) |
4.3 |
|
Display Mode |
IPS |
|
Resolution |
480*272 |
|
Outline Dimension(mm) |
105.5*67.2*2.9 |
|
Active Area(mm) |
95.04* 53.86 |
| luminance | 600 |
|
interface |
SPI |
|
Expandable interface |
RGB |
|
Driver IC |
NV3041A |
|
Operating Temp |
-10~+60℃ |
|
Storage Temp |
-20~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
