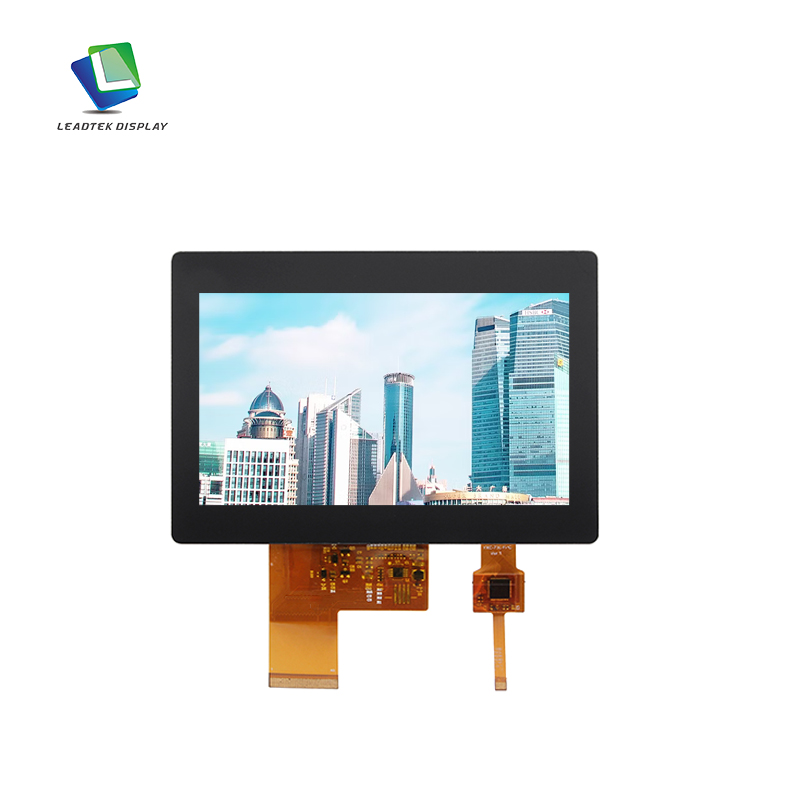

4.3 inch 800*480 tft lcd display, with CTP Touch
The LTK043HS40S-KC02-V0 is a 4.3-inch IPS LCD with a capacitive touch panel, ideal for smart home applications such as control panels, smart appliances, and security systems. Featuring a bright 530 cd/m² display, 800x480 resolution, and wide viewing angles, it ensures clear and responsive interaction. Integrated with GT911 touch controller and reliable RGB interface, it delivers smooth performance in compact embedded systems, even in demanding environments.
- Product Details
| Part Number. | LTK043HS40S-KC02-V0 |
| Type of LCD panel | 4.3inch LCM+CTP |
| View angle | Transmissive / IPS |
| Interface | RGB |
| Resolution | 800*480 |
|
Luminance (cd/m²) |
530 |
| LCM Driver IC | EK9716+EK73002 |
| Outline Dimension(mm) | 105.5*67.2*5.2 |
| Active Area(mm) | 95.04*53.86 |
| Touch Panel | C-TP (G+G) |
| CTP Driver IC | IIC 6PIN |
| CTP Driver IC | GT911 |
| Operating Temp | -10-+60℃ |
| Storage Temp | -20-+70℃ |
