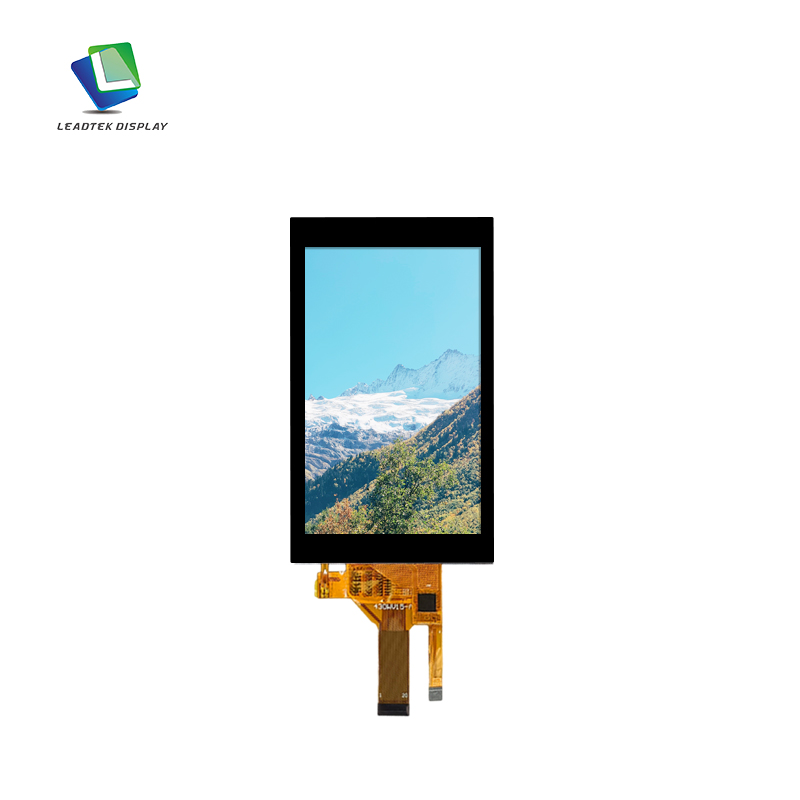

4.3 Inch 480*800 TFT LCD Display with Touch CTP
The LTK430WV15A-CT-V4 is a 4.3-inch IPS touch display designed for seamless integration into smart home devices. With a resolution of 480x800 and capacitive touch support, it offers responsive interaction and clear visuals, ideal for control panels, smart thermostats, and home automation hubs.
Equipped with a GT911 touch IC and G+F+F touch structure, this module ensures smooth and accurate user input. Its robust design and wide operating temperature range make it well-suited for diverse home environments, combining reliability with a modern, user-friendly interface.
- Product Details
|
Part Number. |
LTK430WV15A-CT-V4 |
| Size(inch) | 4.3 |
| Viewing Direction | IPS |
|
Resolution |
480*800 |
|
Interface |
MIPI |
|
Expandable Interface |
SPI+RGB |
|
Luminance (cd/m²) |
230 |
| Active Area (mm) | 56.16*93.60 |
| LCM+CTP Outline Dimension (mm) | 60.00*101.80*1.70 |
|
Driver IC |
ST7701S |
| Touch screen | CTP |
| Touch IC | GT911 |
| Touch Structure | G+F+F |
| TP Interface |
IIC |
| Operating Temperature | -20~+70℃ |
| Storage Temperature | -30~+80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
