21.5 inch 1920*1080 resolution LVDS interface tft lcd panel
LTK215S3015W-V0 is color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 21.45 inch diagonally measured active display area with (1920 horizontal by 1080 vertical pixel) resolution.（D）
- Product Details
| Part Number. | LTK215S3015W-V0 |
| Size(inch) | 21.5” TFT LCD |
| Resolution | 1920*1080 |
| Display Type | Transmissive / CSOT |
| View angle | IPS |
| Interface | LVDS |
| Luminance (cd/m²) | 300 |
| LCM Dimension(mm) | 495.64 * 292.21 *8.90 |
| Active Area(mm) | 478.66 * 260.28 |
| Operating Temperature | -10-+50℃ |
| Storage Temperature | -20-+60℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
Related Products
-
4.3 Inch 480x800 MIPI TFT Module with High Brightness 1000nits -
5.08 Inch Square IPS High Brightness TFT LCD Display with TDDI... -
13.3 Inch Full HD 430nits IPS TFT Display with eDP Interface -
2.8 Inch 240*320 High Bightness TFT LCD Module with MCU Interface -
5.0 inch 720*1280 High Brightness TDDI TFT Display with MIPI... -
5.7 Inch 640*480 RGB TFT Display with Wide Temprature -
5.7 Inch 640*480 IPS TFT Touch Display with RGB Interface -
8.0 Inch 1024*768 IPS Smart Touch TFT LCD Display -

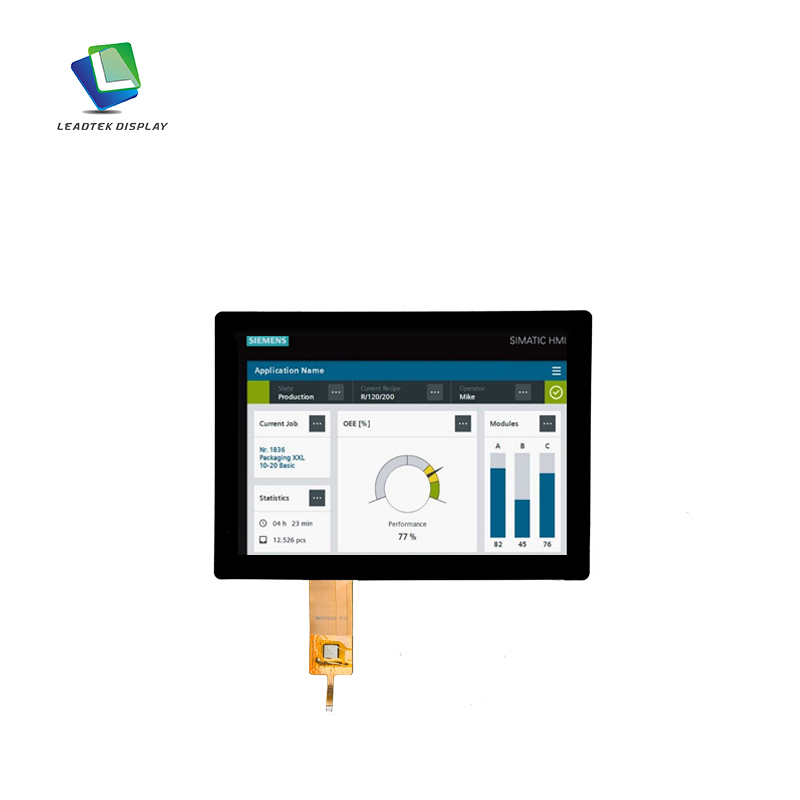

9.7 Inch 1024*768 TFT Touch Display for Industry and Medical -
