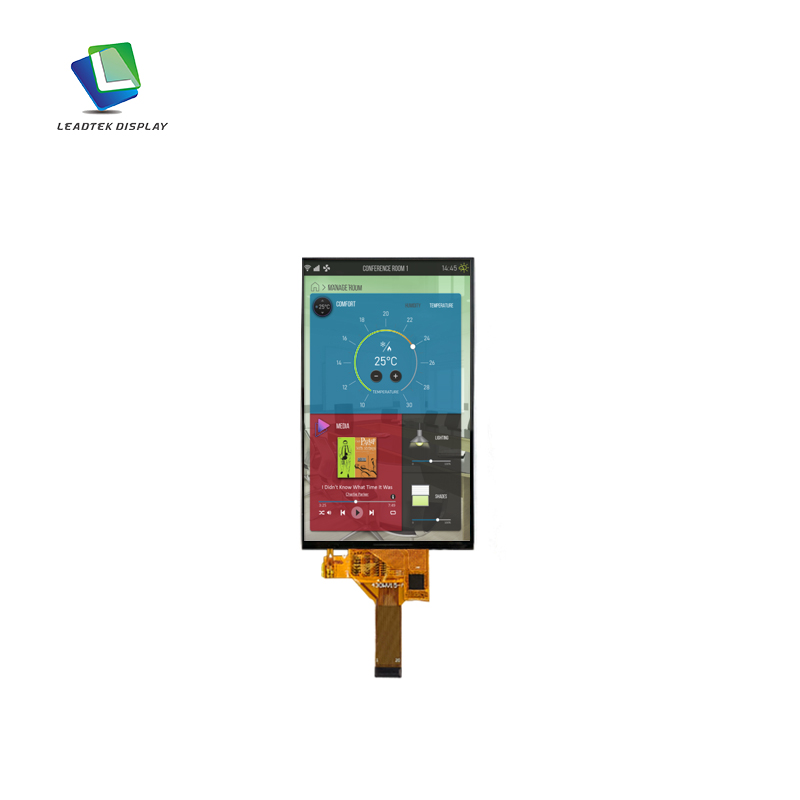

4.3 inch 480*800 TFT LCD module Iuse for Smart home Application
The LTK430WV15A-V4 is a 4.3-inch IPS display designed for modern smart home systems. With vibrant visuals, stable performance, and a sleek form factor, it integrates seamlessly into smart panels, home control interfaces, and intelligent appliances. Its reliable operation across a wide temperature range makes it a solid choice for both indoor and semi-outdoor environments.

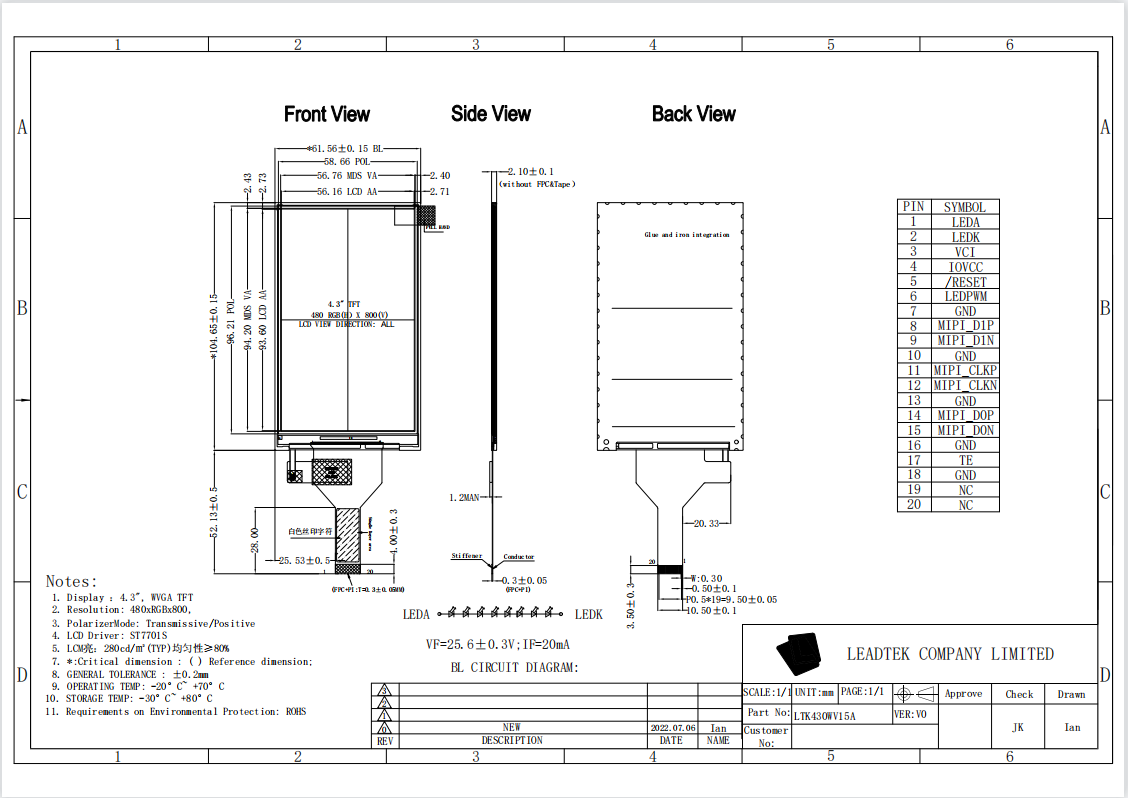

- Product Details
| Part Number. |
LTK430WV15A-V4 |
| Size(inch) | 4.3 |
| Display mode | IPS |
| Resolution | 480*800 |
| Interface | MIPI |
|
Expandable Interface |
SPI+RGB |
| Active Area (mm) |
56.16*93.60 |
| Outline Dimension (mm) |
60.00*101.80*1.70 |
| Colors | 16.7M |
|
Driver IC |
ST7701S |
| Operating temperature |
-20 °C~ +70°C |
| Storage temperature |
-30 °C~ +80°C |
