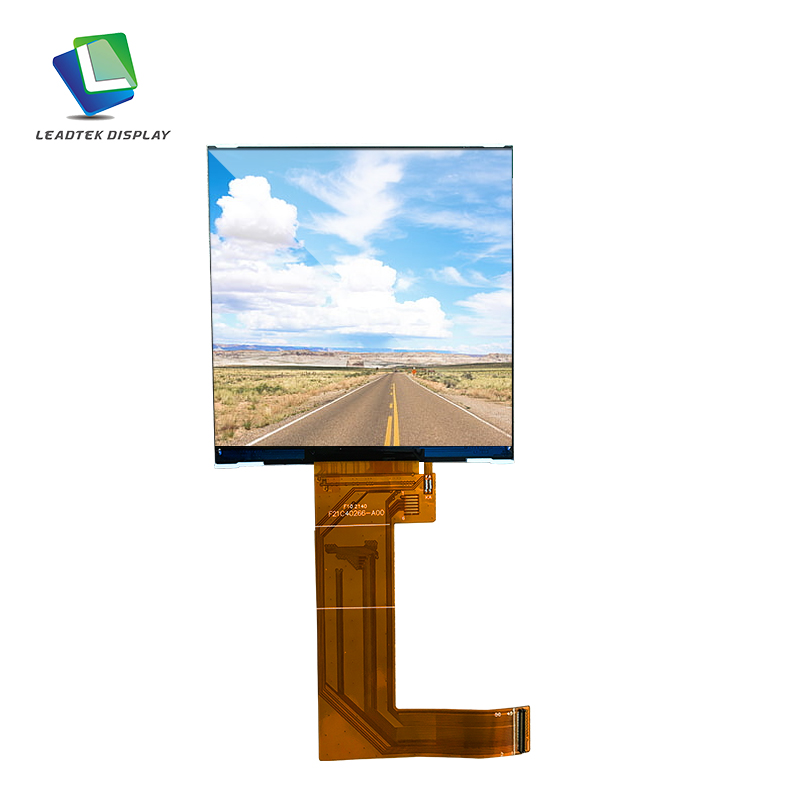

3.95 inch 480*480 resolution square screen, IPS tft lcd modules
LTK040FTHLM49-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 3.95 inch diagonally measured active display area with (480 horizontal by 480 vertical pixel) resolution.
- Product Details
| Module number |
LTK040FTHLM49-V0 |
|
Size (inch) |
3.95 |
|
Display Mode |
IPS |
|
Resolution |
480*480 |
|
Luminance (cd/m²) |
350 |
|
Interface |
RGB |
|
Expandable interface |
MIPI |
|

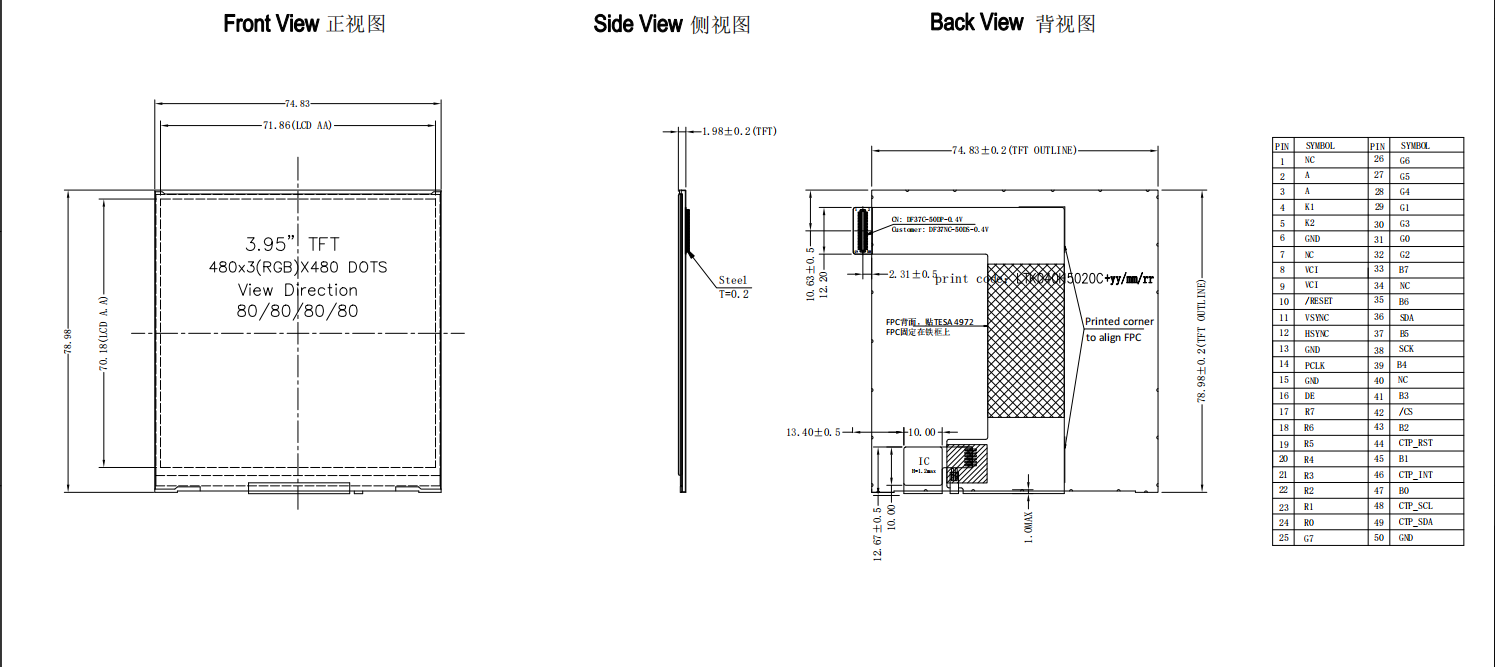

Outline Dimension |
74.83*78.98*2.0 mm |
|
Active Area |
71.86*70.18 mm |
|
Operating Temperature |
-20℃~ +70℃ |
|
Storage Temperature |
-30℃~ +80℃ |
|
Driver IC |
ST7701S |
