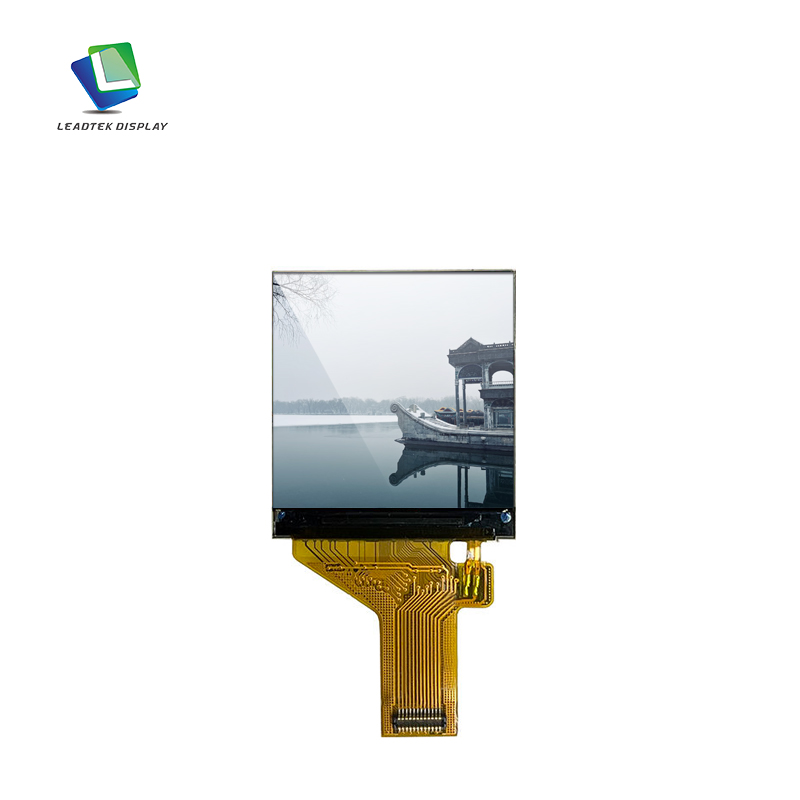

High Birghtness 1.3 Inch IPS LCD With 240*240 SPI/MCU Interface Display
LTK013QVBLM02-V1 is color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit. This TFT LCD has a 1.3 inch diagonally measured active display area with (240*240) resolurtion.
- Product Details
|
Model |
LTK013QVBLM02-V1 |
|
Display Mode |
IPS |
|
Resolution |
240*240 |
|
Interface |
SPI/MCU |
|
Expandable interface |
RGB |
|
Brightness |
1000cd/m2 |
|

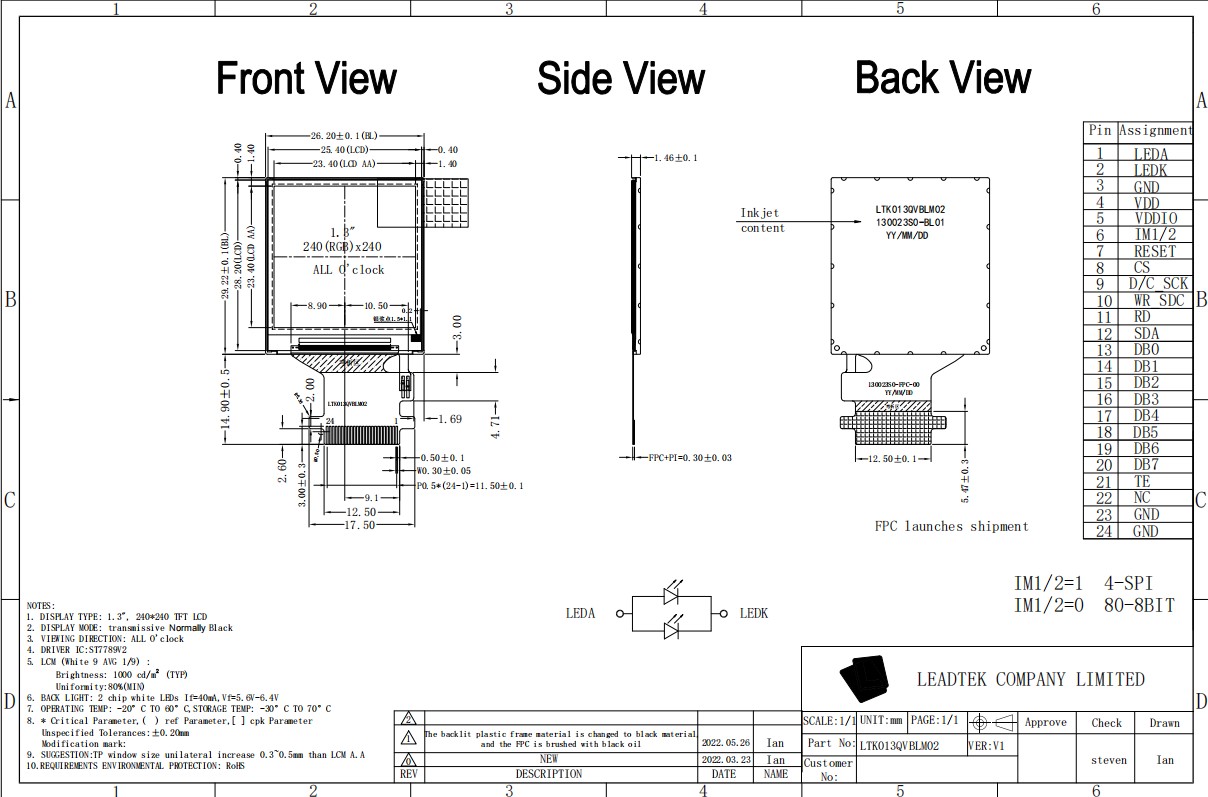

Active Area(mm) |
23.4*23.4 |
|
Outline Dimension(mm) |
26.20*29.22*1.46 |
|
Operating Temp |
-20~+60℃ |
|
Storage Temp |
-20~+70℃ |
