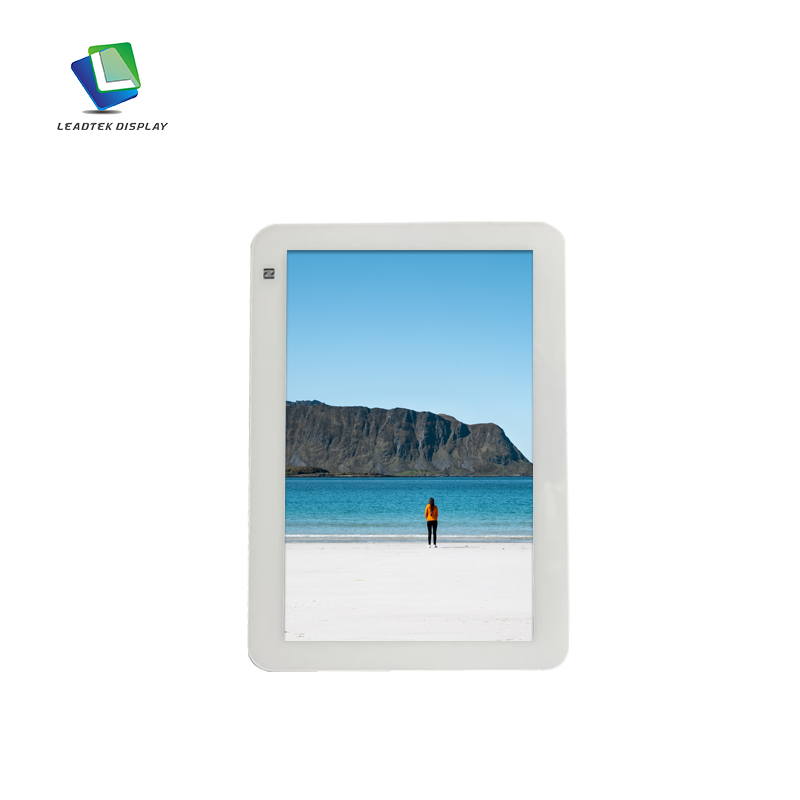

10.1inch 800*1280 MIPI Transmissive Display
10.1-inch MIPI Transmissive Standard Color Display, model LTK101WX08Q-QC-V3. Features 800*1280 resolution with MIPI interface. Portrait shape with an active area of 135.36*216.58 mm and overall dimensions of 174.5*251.0*4.1 mm. Ideal for Smart Industry applications. Brightness at 380 cd/m².
- Product Details
PRODUCT PARAMETERS:
| Moudle no | LTK101WX08Q-QC-V3 |
| Resolution | 800*1280 |
| Viewing Angle | IPS |
| Active Aera (mm) | 135.36*216.58 |
| TPM V.A (mm) | 134.16*215.38 |
| Outline Dimension (mm) | 143.00*228.60*2.75 |
| TPM O.D (mm) | 174.50*251.00*4.10 |
| TP Interface | IIC |
| TPM Luminance | 420 |
| Operating Temp | -20~+60℃ |
| Storage Temp | -30~+70℃ |

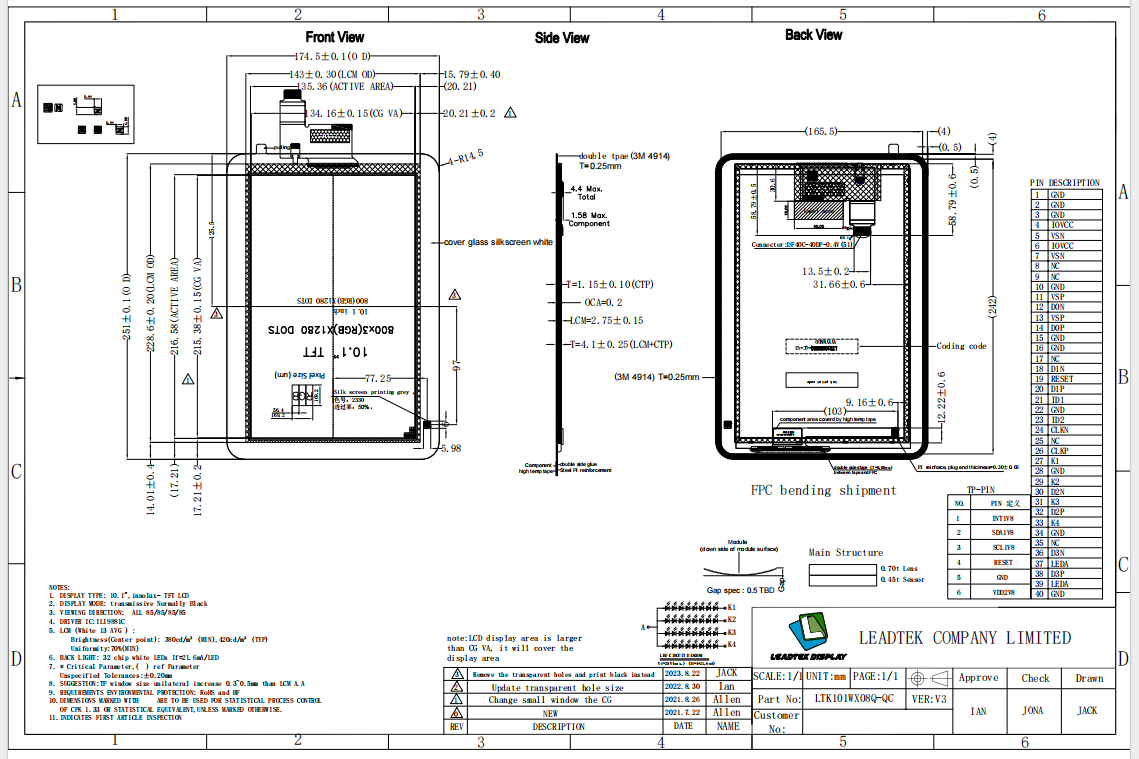

PRODUCT DRAWING:
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
