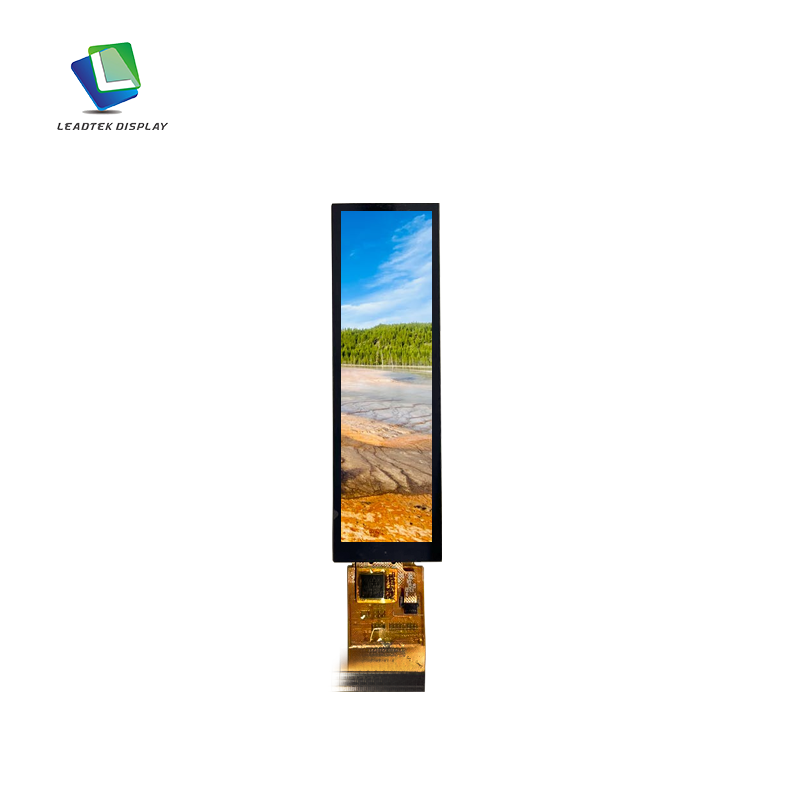

3.4" 180x640 MIPI IPS LCD Display with 300 cd/m Brightness
This 3.4" IPS display offers a resolution of 180x640 with MIPI interface and 300 cd/m² brightness. The active area measures 23.22(H) x 82.56(V) mm, and overall dimensions are 29.72(W) x 92.83(H) x 3.61(T) mm. It includes a Capacitive Touch Panel (CTP) and operates within a temperature range of -20°C to +70°C, with a storage temperature range of -30°C to +80°C.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 3.4 |
| Part Number. | LTK034MNBCT13-V0 |
| Display Mode | IPS |
| Resolution | 180*640 |
| Interface | MIPI |
|
Expandable interface |
QSPI+RGB |
| Luminance (cd/m²) | 300 |
| Active Area (mm) | 23.22*82.56 |
| Outline Dimension (mm) | 29.72*92.83*3.61 |
| Touch Screen | CTP |
|
TP Structure |
GG |
|
Touch screen IC model |
GT911 |
|
TP Interface |
IIC |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
