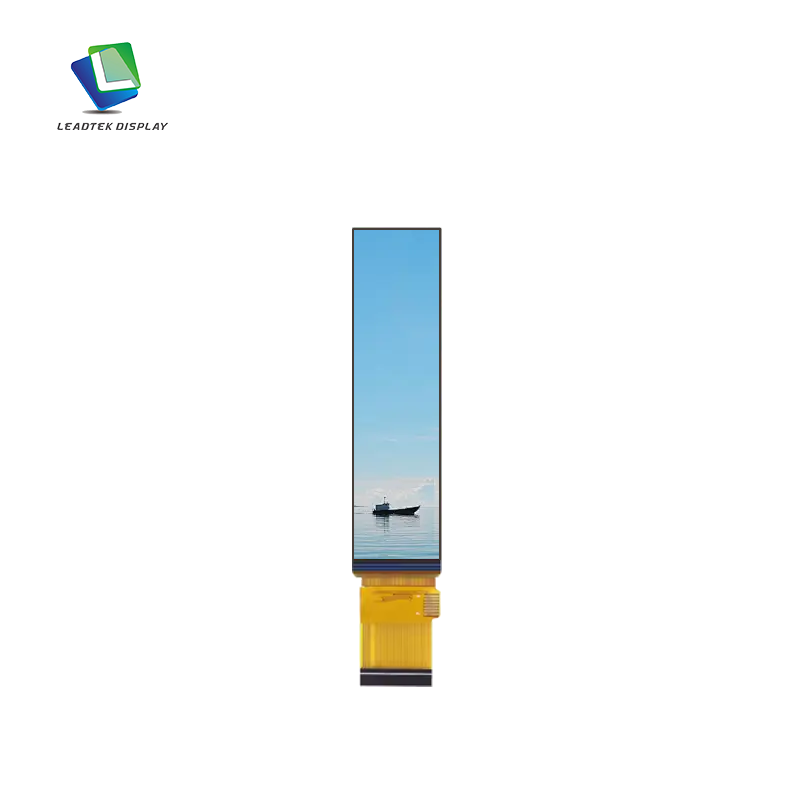

3.4 Inch 180*640 TFT LCD Display for Smart Home
This 3.4" display has a 180x640 resolution, SPI interface and 340 cd/m² brightness, making it ideal for home applications. The active area is 23.22*82.56 mm and the overall dimensions are 25.72*88.83*1.58 mm. It operates reliably in a temperature range of -20°C to +70°C, making it suitable for demanding home environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 3.4 |
| Part Number. | LTK034MNBLM13-V0 |
| Display Mode | IPS |
| Resolution | 180*640 |
| Interface |
MIPI |
|
Expandable interface |
QSPI+RGB |
| Luminance (cd/m²) | 340 |
| Active Area (mm) | 23.22*82.56 |
| Outline Dimension (mm) | 25.72*88.83*1.58 |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
PRODUCT DRAWING
