6.88" 480×1280 IPS TDDI Bar-Type TFT LCD Display with MIPI Interface
The LTK069FTBIT16-V0 is a 6.88-inch bar-type IPS TFT LCD featuring a 480×1280 resolution, 350 cd/m² brightness, and wide viewing angles for clear, vivid visuals. Its TDDI technology integrates touch and display driving, providing capacitive touch interaction in a compact module with a MIPI interface. With a wide operating temperature range of -30°C to +85°C, it is suitable for industrial control panels, transportation information displays, and smart home interfaces. Its narrow format also fits compact retail advertising screens and gaming machine auxiliary panels.

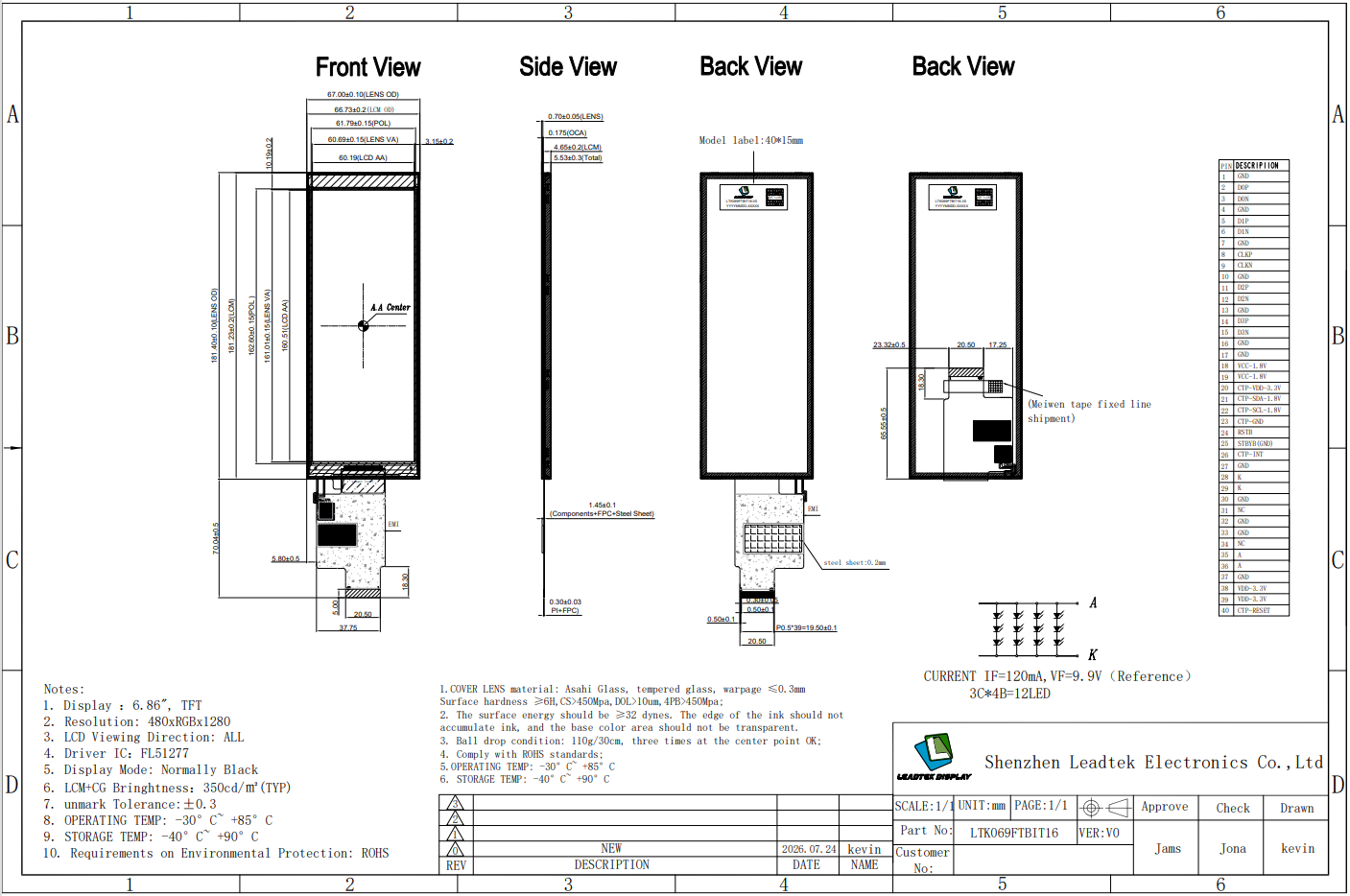

- Product Details
|
Part Number |
LTK069FTBIT16-V0 |
| Size(inch) | 6.88 |
|
Display Mode |
IPS |
|
Resolution |
480*1280 |
|
Interface |
MIPI |
|
Luminance (cd/m²) |
350 |
| Touch Screen | CTP(TDDI) |
|
Active Area(mm) |
60.19(H)*160.51(V) |
|
Outline Dimension(mm) |
67.18(H)*181.40(V)*5.53(T) |
|
Operating Temp |
-30~+85℃ |
|
Storage Temp |
-40~+90℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
