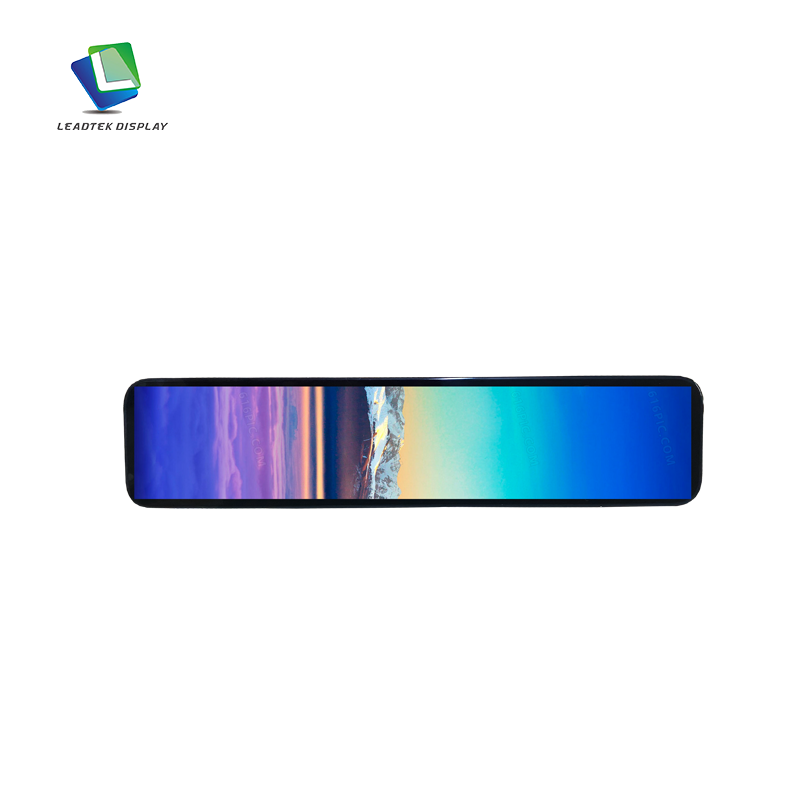

3.5 inch bar type TFT display , 340x800 resolution,MIPI interface, 300cd/m²
This 3.5-inch IPS display has a resolution of 340x800, a MIPI interface and a brightness of 300 cd/m². The active area size is 81.00(H) x 33.97(V) mm, and the overall size is 194.2(W) x 44.21(H) x 2.90(T) mm. Its expandable interface is SPI+RGB, it is equipped with a cover glass (CG), the operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C. Very suitable for applications in smart transportation scenarios
- Product Details
| Size (inch) | 3.51 |
| Part Number. | LTK346HS4003B-G-V4 |
| Display Mode | IPS |
| Resolution | 340*800 |
| Interface | MIPI |
|
Expandable interface |
SPI+RGB |
| Luminance (cd/m²) | 300 |
| Active Area (mm) | 81.00*33.97 |

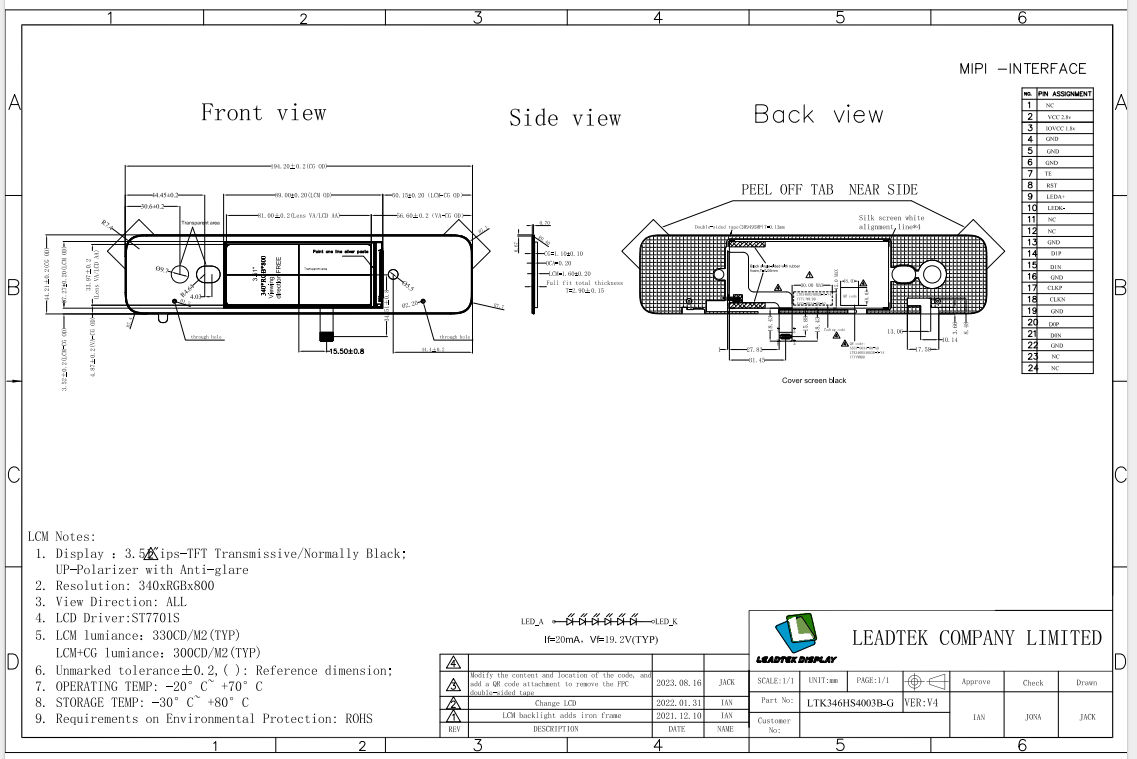

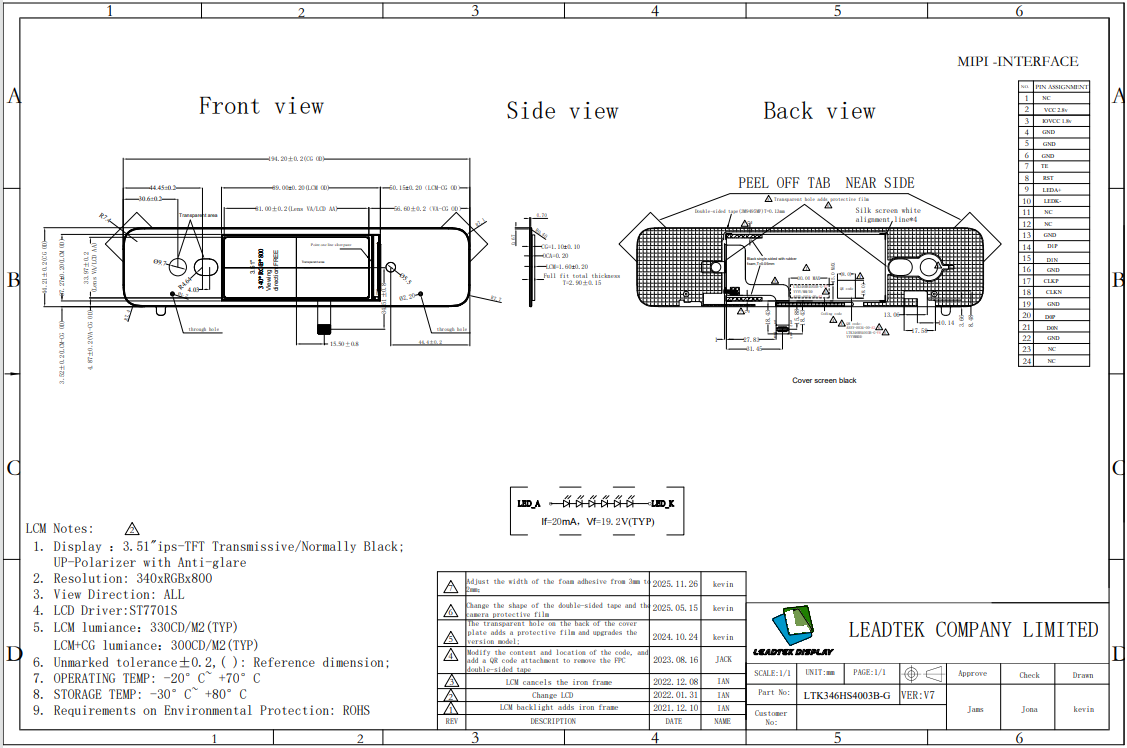

| Outline Dimension (mm) | 194.2*44.21*2.90 |
| Touch Screen | CG |
|
Module IC Model |
ST7701S |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
