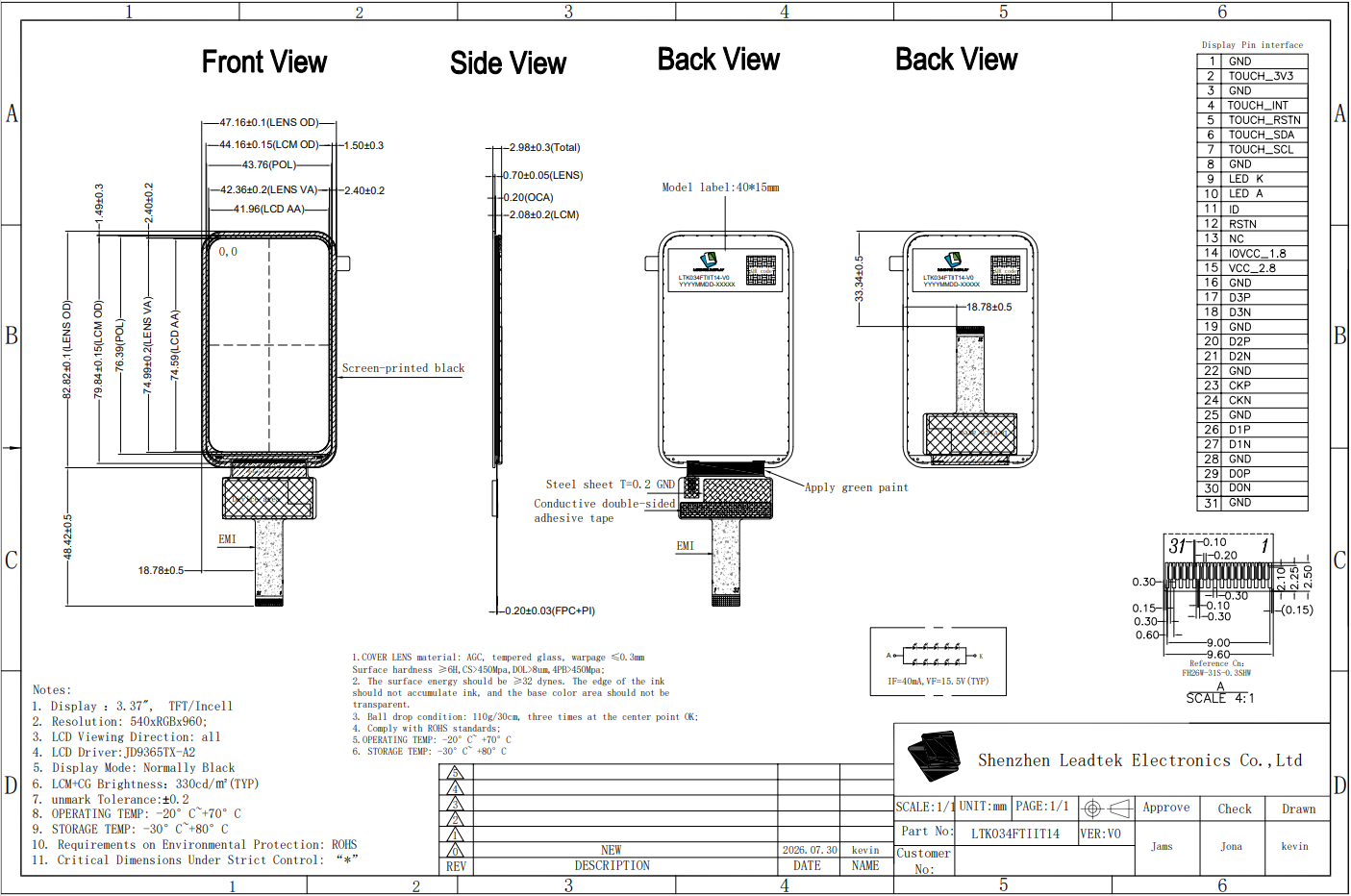

3.37" 540×960 IPS TDDI TFT LCD Display with MIPI Interface

The LTK034FTIIT14-V0 is a 3.37-inch IPS TFT LCD display featuring a 540×960 resolution, 330 cd/m² brightness, and capacitive touch with TDDI technology. With a MIPI interface and a slim 2.98 mm profile, it supports compact product designs and convenient integration. Its operating temperature range of -20°C to +70°C makes it suitable for smart home applications, including video door locks, smart control panels, and home appliance interfaces, as well as compact industrial handheld terminals and portable data collection devices.

Inquire Now

BackPrevious

Product Details

Part Number	LTK034FTIIT14-V0
Size(inch)	3.37
Display Mode	IPS
Resolution	540*960
Interface	MIPI
Luminance (cd/m²)	330
Touch Screen	CTP(TDDI)
Active Area(mm)	41.96(H)*74.59(V)
Outline Dimension(mm)	47.16(H)82.82(V)2.98(T)
Operating Temp	-20~+70℃
Storage Temp	-30~+80℃
