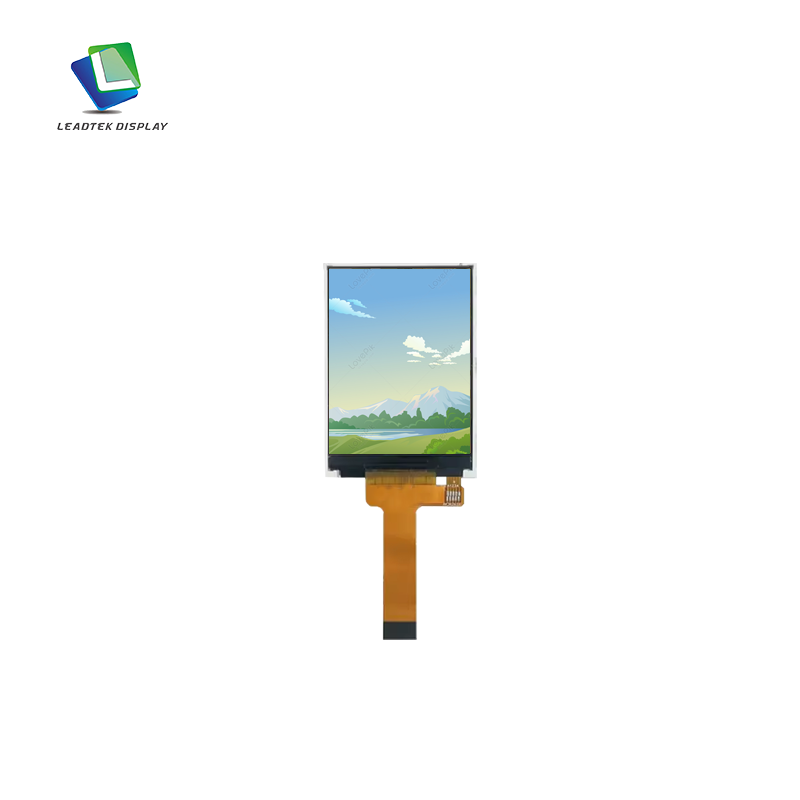

2.4" 240*320 IPS LCD Module for Smart Home Applications
This LTK024QVBLM20-V0 IPS LCD module features a resolution of 240*320 pixels and operates via SPI interface with a brightness of 300 cd/m². The active area measures 36.72*48.96 mm, and the overall dimensions are 40.92*57.45*2.46 mm. Featuring Cover Glass (CG) technology, it functions reliably in temperatures ranging from -20℃ to +70℃, with storage conditions from -30℃ to +80℃. Designed for smart home applications, it delivers clear, high-quality visuals and stable performance in various home environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 2.4 |
| Part Number. | LTK024QVBLM20-V0 |
| Display Mode | IPS |
| Resolution | 240*320 |
| Interface | SPI |
|
Expandable interface |
RGB/MCU |
| Luminance (cd/m²) | 300 |

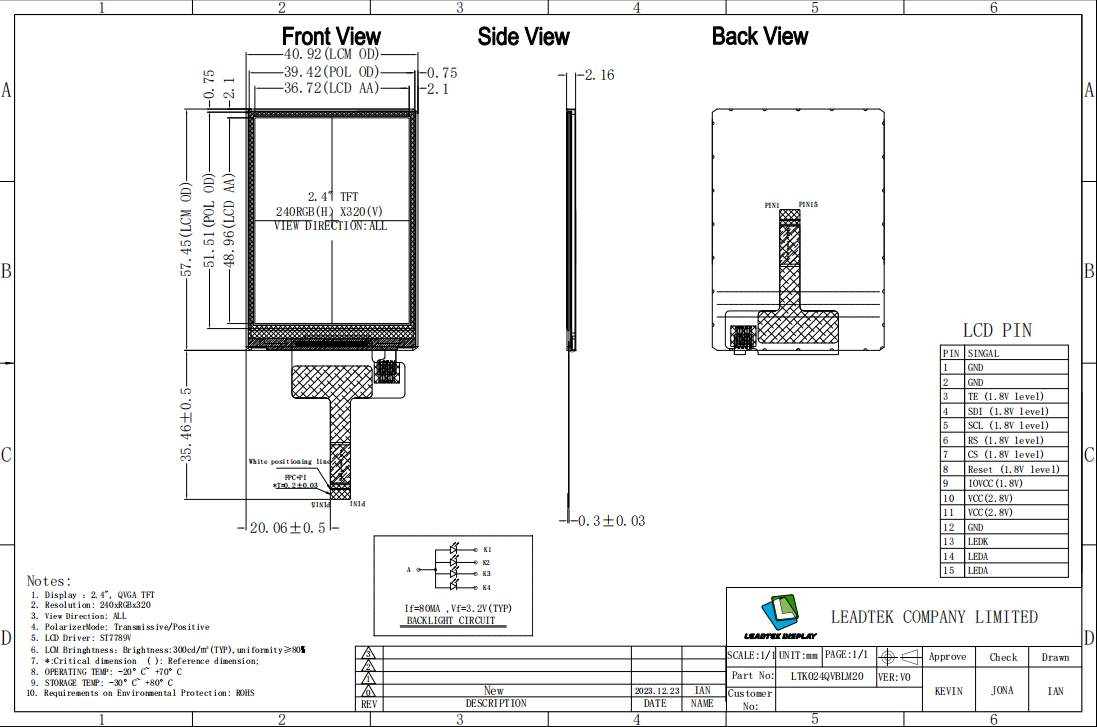

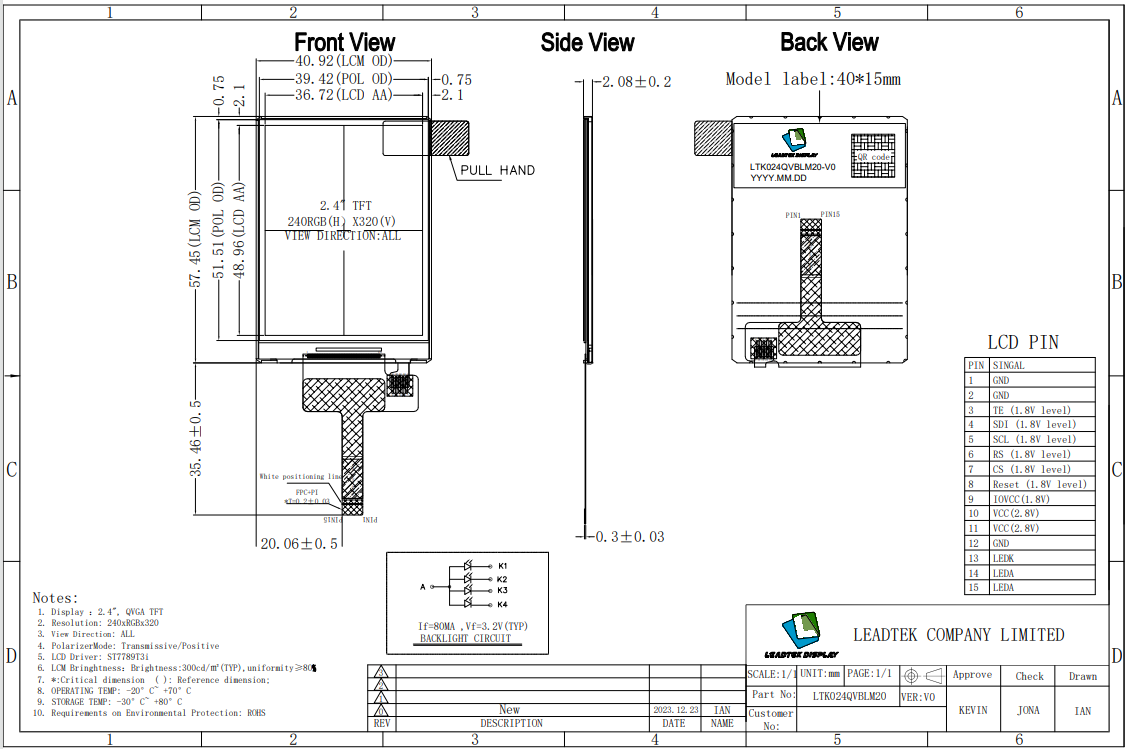

| Active Area (mm) | 36.72*48.96 |
| Outline Dimension (mm) | 40.92*57.45*2.46 |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
