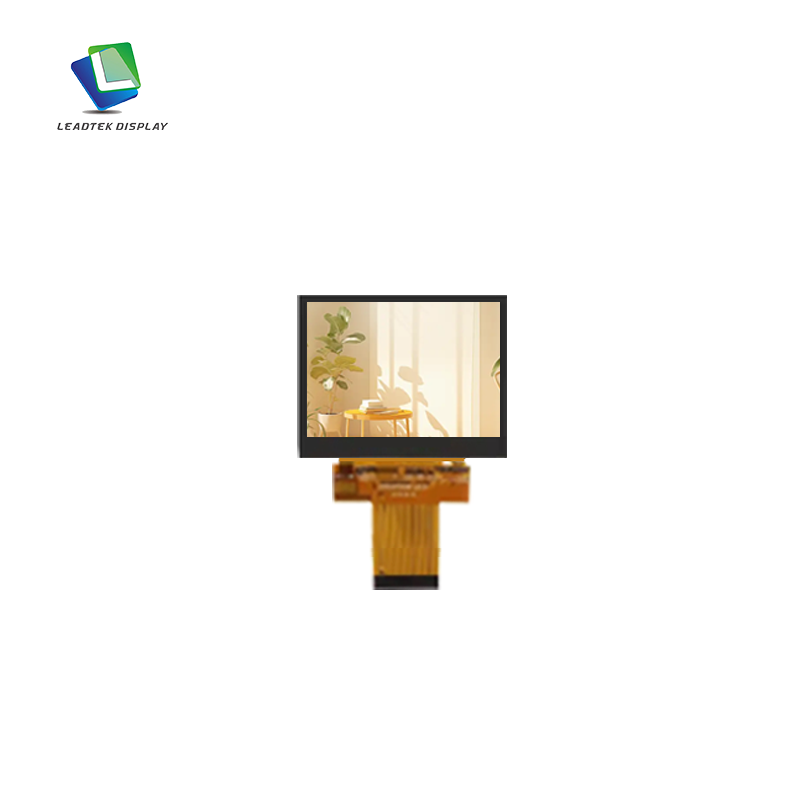

3.5" 640*480 IPS TFT LCD Screen for Smart Home Applications
This LTK035VGCCT40-V0 IPS LCD module features a high-resolution display of 640*480 pixels and operates via RGB interface with a brightness of 340 cd/m². The active area measures 70.08*52.56 mm, and the overall dimensions are 76.60*63.60*3.67 mm. Equipped with a capacitive touch panel (CTP), it functions reliably in temperatures ranging from -20℃ to +70℃, with storage conditions from -30℃ to +80℃. Designed for smart home applications, it ensures clear, detailed visuals and stable performance in various home environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 3.5 |
| Part Number. | LTK035VGCCT40-V0 |
| Display Mode | IPS |
| Resolution | 640*480 |
| Interface | RGB |
|
Expandable interface |
MIPI |
| Luminance (cd/m²) | 340 |
| Active Area (mm) | 70.08*52.56 |
| LCM+CTP Outline Dimension (mm) | 76.60*63.60*3.67 |
|
LCM Outline Dimension (mm) |
74.50*62.40*2.29 |
| Touch Screen | CTP |
|
CTP Type |
GG |
|
CTP Driver IC |
GT911 |
|
CTP Interface |
IIC |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
