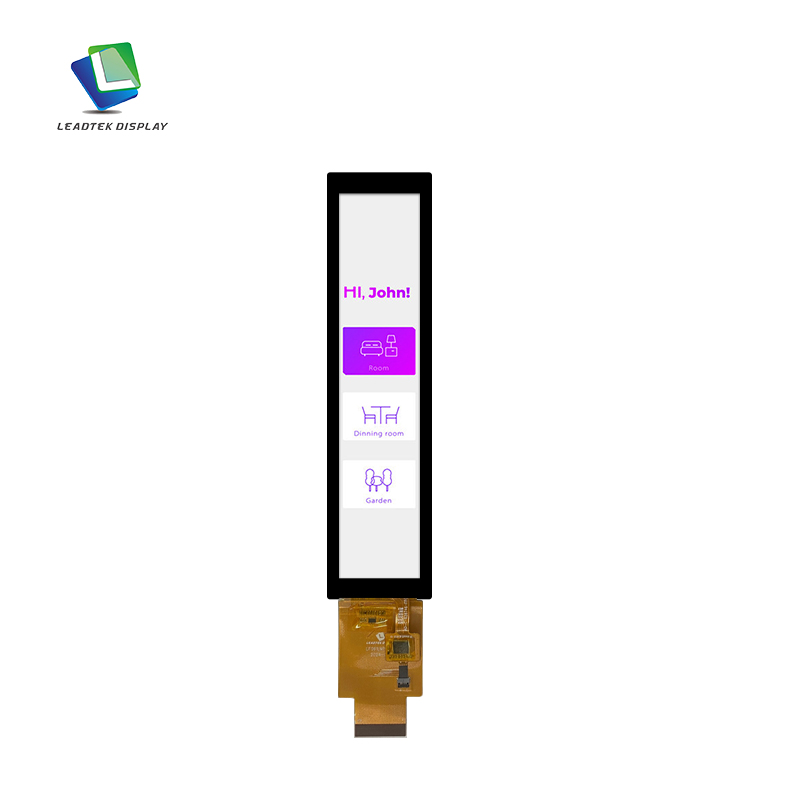

6.1 inch 280*1424 MIPI Interface Stretched Bar Lcd Screen
The LTK061FTBCT11-V0 is a 6.1-inch, long-form IPS touchscreen display designed for smart home applications. With a 280x1424 resolution and 350 cd/m² luminance, it delivers clear visuals and responsive touch functionality via IIC interface. The G+G touch structure ensures durability, while its compact size (41.79 x 169.51 x 6.39 mm) makes it ideal for space-efficient designs. Operating in temperatures from-20°C to +70°C, it is perfect for use in smart control panels, thermostats, and interactive systems.
- Product Details
| Size (inch) | 6.1 |
| Part Number. | LTK061FTBCT11-V0 |
| Display Mode | IPS |
| Resolution | 280*1424 |
| Interface | MIPI |
| Luminance (cd/m²) | 350 |
| Active Area (mm) | 29.99*152.51 |
| Outline Dimension (mm) | 41.79*169.51*6.39 |
| Touch Screen | CTP |
| TP Structure |
G+G |
| TP Interface |
IIC |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp | -30℃~ +80℃ |
