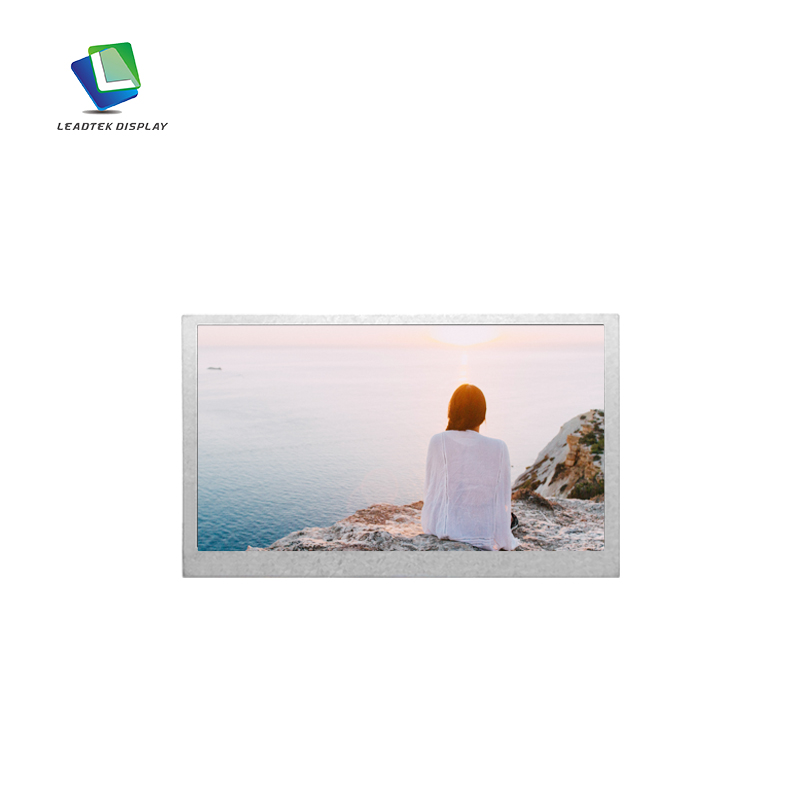

5.0" Normal Black TFT LCD Display with 800x480 Resolution
The 5.0" Normal Black Display (LTK050WVNLM05-V0) features an 800xRGBx480 resolution, delivering crisp and clear visuals. Utilizing RGB interface technology, it offers a brightness of 380 cd/m², ensuring vibrant colors and sharp contrast. With dimensions of 108.00(W)×64.80(H) mm and an overall size of 120.25(W)×75.40(H)×2.50(T) mm, this display is compact and versatile. It operates efficiently in temperatures ranging from -20℃ to +70℃ and can withstand storage conditions from -30℃ to +80℃. Ideal for a variety of applications, this display combines durability with excellent visual performance.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 5.0 |
| Part Number. | LTK050WVNLM05-V0 |
| Display Mode | Normal Black |
| Resolution | 800xRGBx480 |
| Interface | RGB |
|
Expandable Interface |
LVDS |
| Luminance (cd/m²) | 380 |
| Active Area (mm) | 108.00(W)×64.80(H) |
| Outline Dimension (mm) | 120.25(W)×75.40(H)×2.50(T) |
| Touch Screen | NA |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp | -30℃~ +80℃ |
PRODUCT DRAWING
