7 inch 1024*600 IPS TFT LCD Touch Panel for Smart Home
This 7.0-inch IPS display (Part Number: LTK070B40FPD-QC04-V4) is designed for smart home applications, offering a high resolution of 1024x600 pixels with a luminance of 480 cd/m². Featuring a capacitive touch panel (CTP) with a G+G structure and GT911 touch IC, it supports IIC interface and ensures smooth, responsive touch input, even with wet hands. The display operates within a temperature range of -20℃ to +70℃, making it ideal for various environments. Its compact LCM+CTP outline dimension (187.60 x 118.60 x 5.20 mm) allows for easy integration into space-constrained devices. With excellent clarity, durability, and touch performance, this screen is perfect for modern smart home control panels.
- Product Details
| Size (inch) | 7.0 |
| Part Number. | LTK070B40FPD-QC04-V4 |
| Display Mode | IPS |
| Resolution | 1024*600 |
| Interface | MIPI |
| Luminance (cd/m²) | 480 |
| Active Area (mm) | 154.21*85.92 |

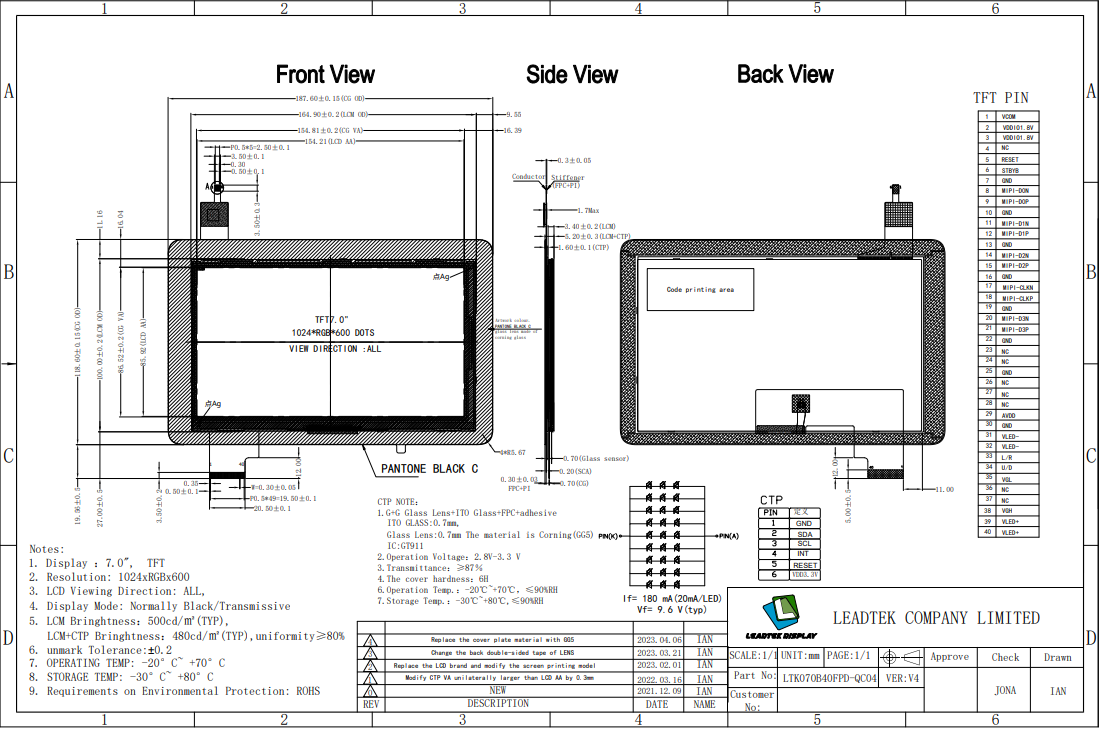

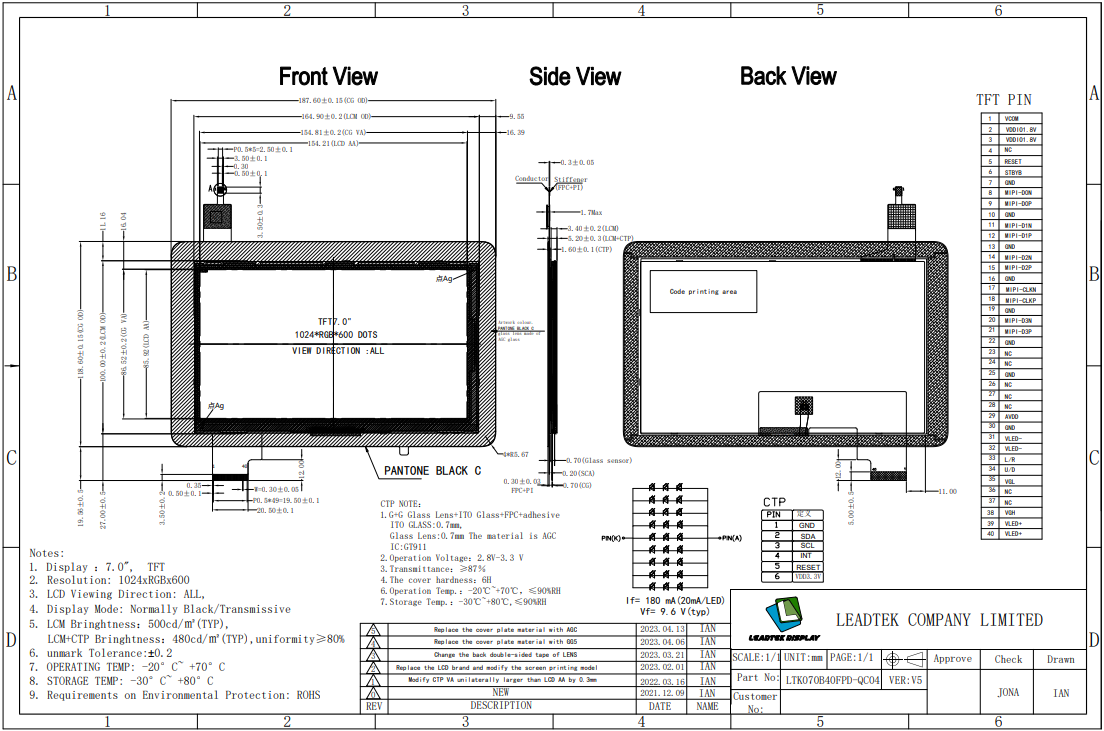

| LCM+CTP Outline Dimension (mm) | 187.60*118.60*5.20 |
| Touch Screen | CTP |
| TP Structure |
G+G |
| TP IC Model | GT911 |
| TP Interface | IIC |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp | -30℃~ +80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
