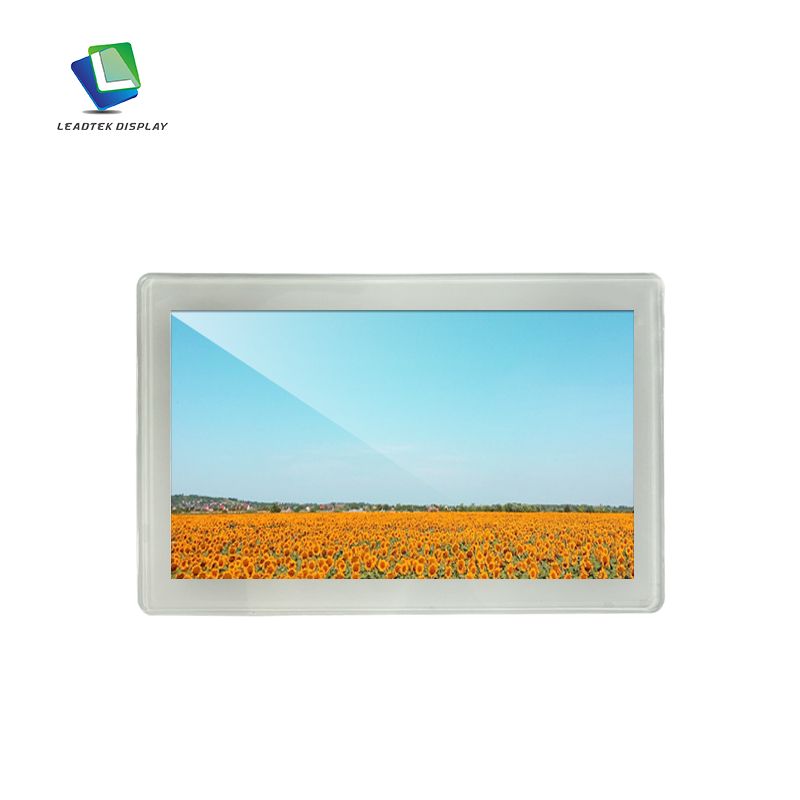

7.0-inch 1024*600 IPS Touch LCD Display with High Brightness 900Nits
The LTK070WSHCT15-V1 is a 7.0-inch IPS display module designed for smart home applications, offering a resolution of 1024x600 pixels and a high luminance of 900 cd/m² for clear and vibrant visuals. The display features a capacitive touch panel (G+G structure) with an IIC interface, enabling responsive touch functionality, even with wet or gloved hands, making it ideal for household environments where convenience and ease of use are key. Its wide operating temperature range of -20℃ to +70℃ensures reliable performance in diverse home settings, from kitchens to living rooms. This display offers the durability and functionality needed for smart home control panels and interactive devices.
- Product Details
| Size (inch) | 7.0 |
| Part Number. | LTK070WSHCT15-V1 |
| Display Mode | IPS |
| Resolution | 1024*600 |
| Interface | LVDS |
| Luminance (cd/m²) | 900 |
| Active Area (mm) | 154.21*85.92 |
| Outline Dimension (mm) | 176.00*109.00*9.46 |
| Touch Screen | CTP |
| TP Structure |
G+G |
| TP Interface | IIC |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp | -30℃~ +80℃ |
