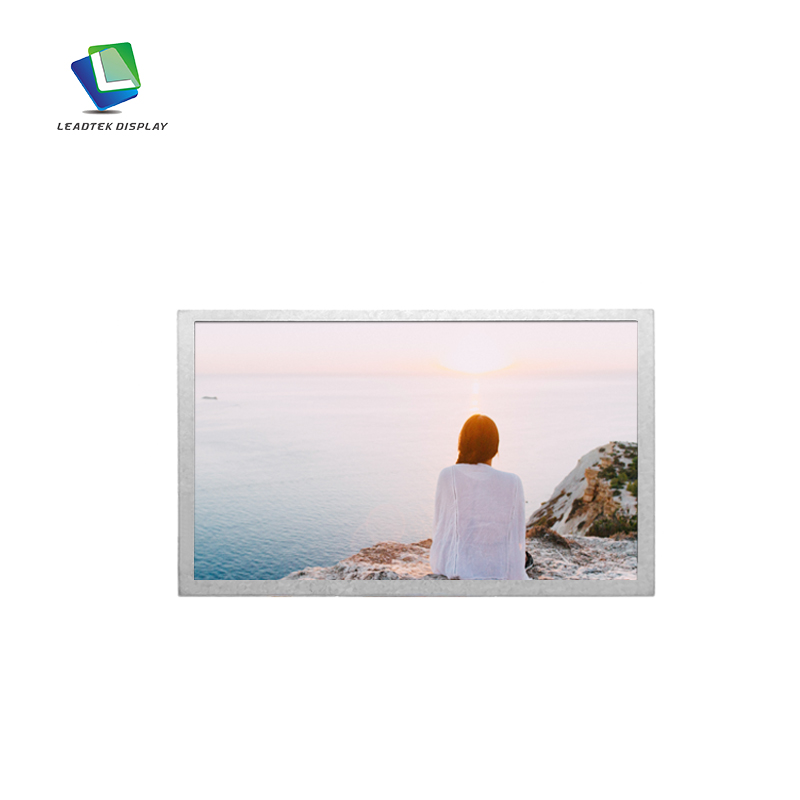

7.0-inch Normally Black TFT LCD 1024(RGB)x600 LVDS 1200 cd/m²
The LTK070WSHLM38-V0 is a 7.0-inch Normally Black TFT LCD with a resolution of 1024 (RGB) x 600 pixels and LVDS interface. It measures 154.21 mm (W) x 85.92 mm (H) x 3.32 mm (T) and operates reliably in temperatures ranging from -20℃ to +70℃, with storage capabilities from -30℃ to +80℃.
- Product Details
PRODUCT PARAMETER

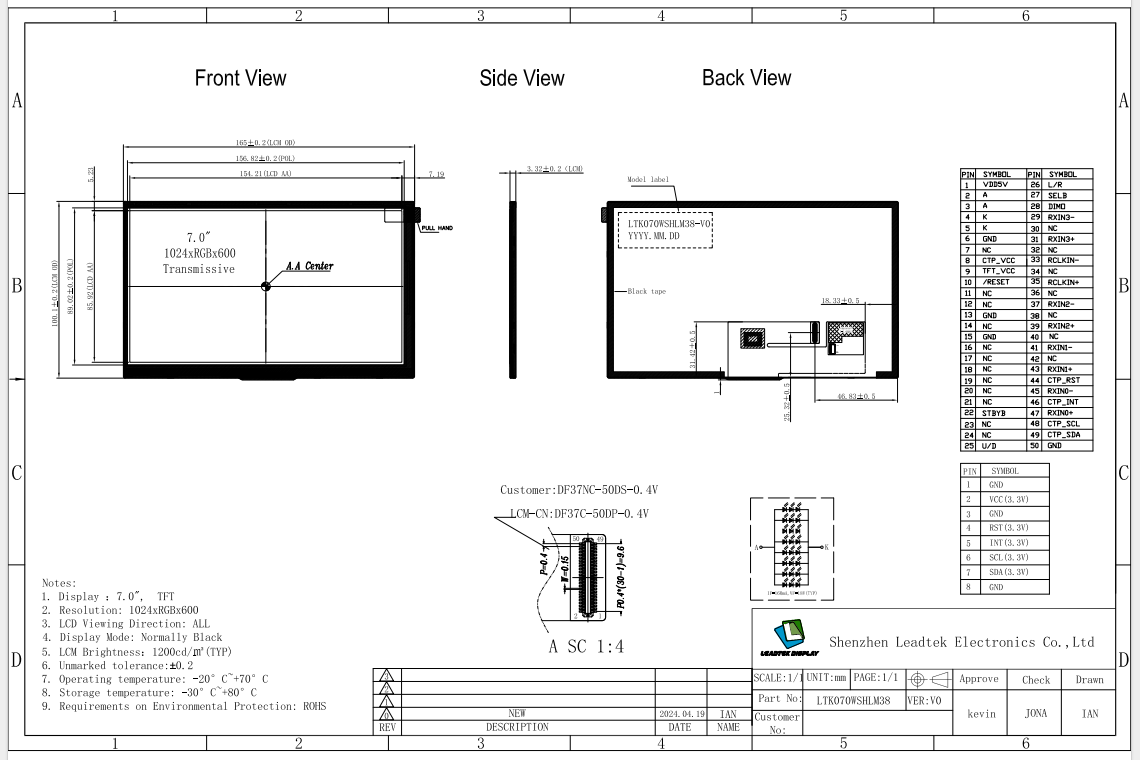

PRODUCT DRAWING
| Size (inch) | 7.0 |
| Part Number. | LTK070WSHLM38-V0 |
| Display Mode | IPS |
| Resolution | 1024*RGB*600 |
| Interface | LVDS |
| Luminance (cd/m²) | 1200 |
| Active Area (mm) | 154.21*85.92 |
| Outline Dimension (mm) | 165*100.1*3.32 |
| Touch Screen | NA |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp |
-30℃~ +80℃
|
