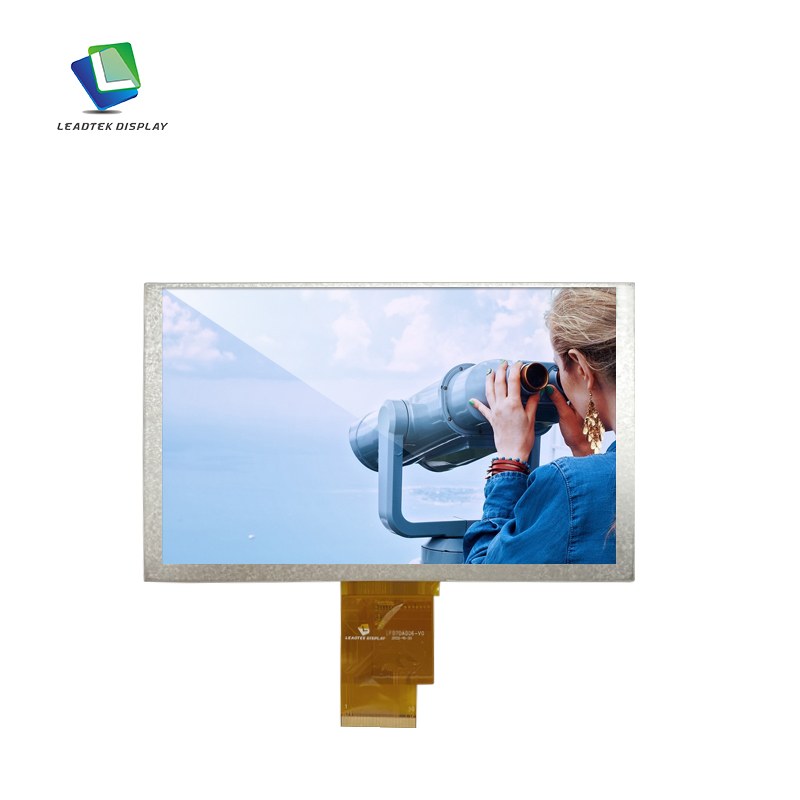

6.8 inch Transmissive Display IPS View Angle with 800*480 Resolution RGB Interface Panel Module
LTK070WVBLM13-V1_800480_IPS_H is a color active matrix TFT LCD module using amorphous silicon TFT‘s(Thin Film Transistors) as an active switching devices. It i s a transmissive type display operating in the normal black. The LCM has a 7 in ch diagonally measured active area with WV resolutions (800 horizontal by 480 ve rtical pixel arrays). Each pixel is divided into RED,GREEN, BLUE dots which are arranged in vertical stripe and this panel can display 16.7M colors. This LCM is ad apted for a low reflection and higher Luminance type. (D)
- Product Details
Specification of 6.8 inch Transmissive Display IPS View Angle with 800*480 Resolution RGB Interface Panel Module
1 | P/N | LTK070WVBLM13-V1 |
2 | Type of LCD panel | 6.8" TFT LCM |
3 | View angle | IPS 85/85/85/85 |
4 | Cell Type | BOE |
5 | Interface | RGB |
6 | Resolution | 800*480 |
7 | Brightness | 450nits |
8 | Driver IC | ST72658 |
9 | Outline Dimensional(mm) | 165.0(H)*100.0(V)*5.56(D) |
10 | Active Area(mm) | 148.10(H)*88.86(V) |
11 | Operating Temperature | -30-+80℃ |
12 | Storage Temperature | -40-+85℃ |
13 | CTP | Without |
14 | Application | Rail Transit |
15 | The general tolerance is ±0.2mm | |
16 | All materials in the figure are RoHS compliant. |

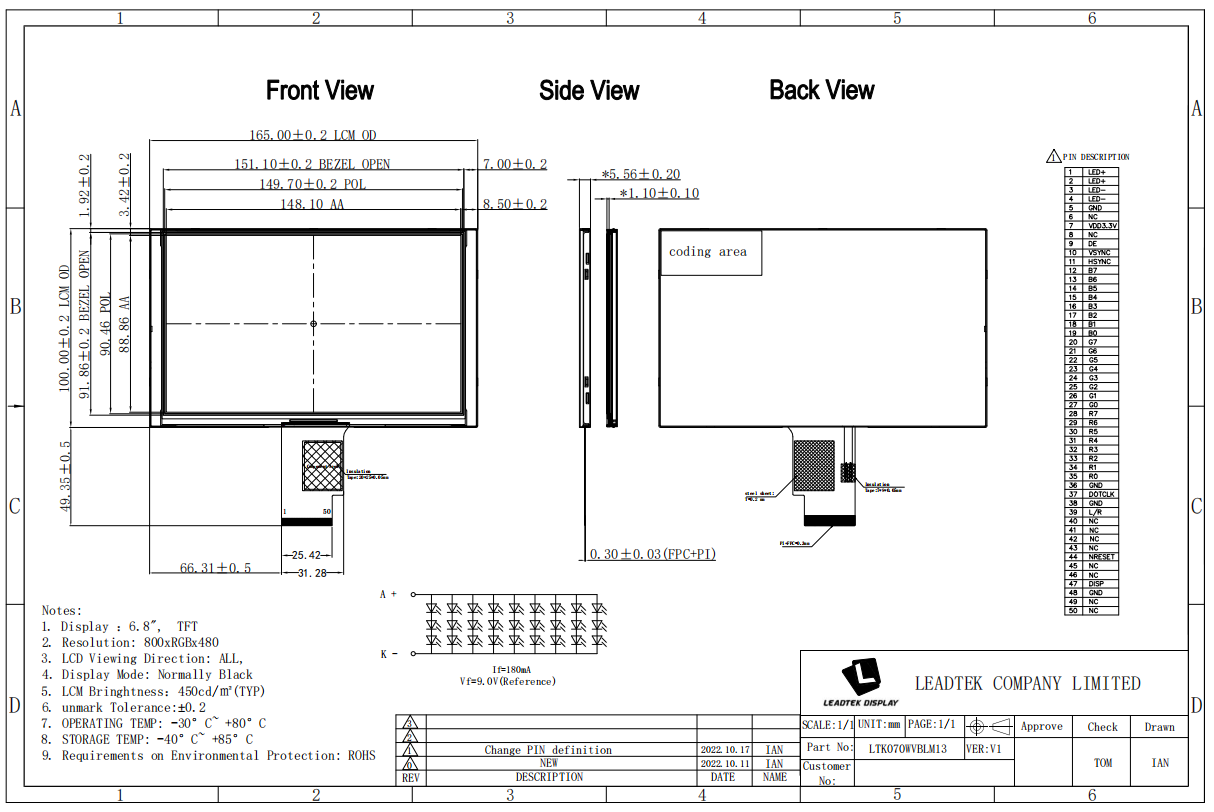

Drawing of 6.8 inch Transmissive Display IPS View Angle with 800*480 Resolution RGB Interface Panel Module
