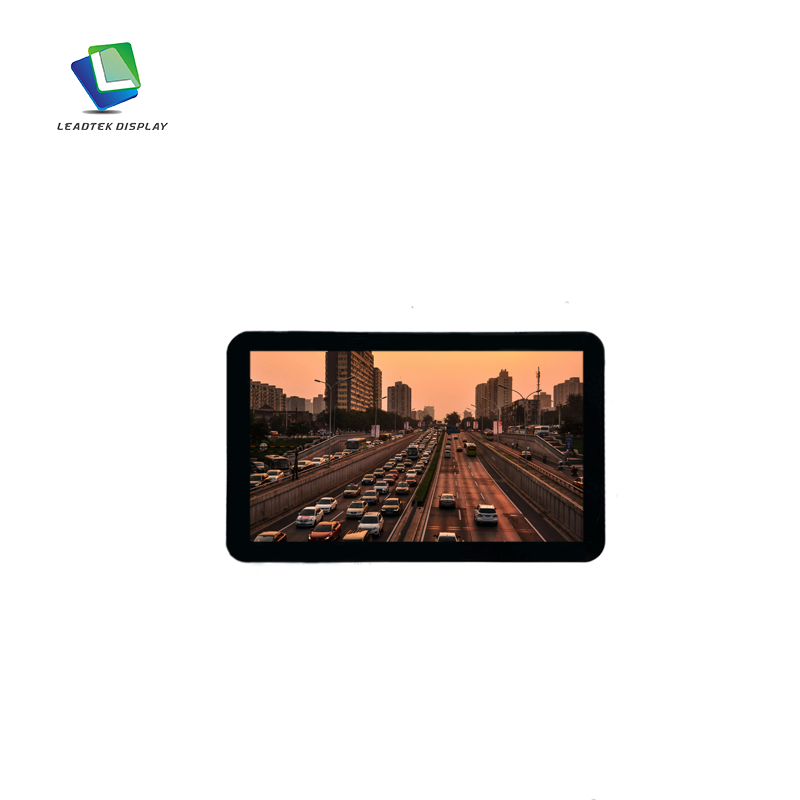

6.8" IPS Display, 800x480, 450 Nits without Touch Panel
The LTK070WVBLM13-V1 is a 6.8-inch IPS display tailored for smart transportation applications. Offering a resolution of 800x480 and vibrant color reproduction, it ensures exceptional clarity and visibility under various lighting conditions with a luminance of 450 cd/m². The display features both RGB and LVDS interfaces for flexible integration, powered by the reliable ST72568 drive IC. With an operating temperature range of -30°C to +80°C and storage temperatures from -40°C to +85°C, this display is designed for rugged, outdoor environments.
- Product Details
| Size(inch) | 6.8'' |
| Part Number. | LTK070WVBLM13-V1 |
| Display Mode | IPS |
| Resolution | 800x480 |
| Interface | RGB |
|
Expandable Interface |
LVDS |
| Drive IC | ST72568 |
| Luminance (cd/m²) | 450 |
| Outline Dimensional(mm) | 165.0(H)*100.0(V)*5.56(D) |
| Active Area(mm) | 148.10(H)*88.86(V) |
| Operating Temperature | -30-+80℃ |
| Storage Temperature | -40-+85℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
