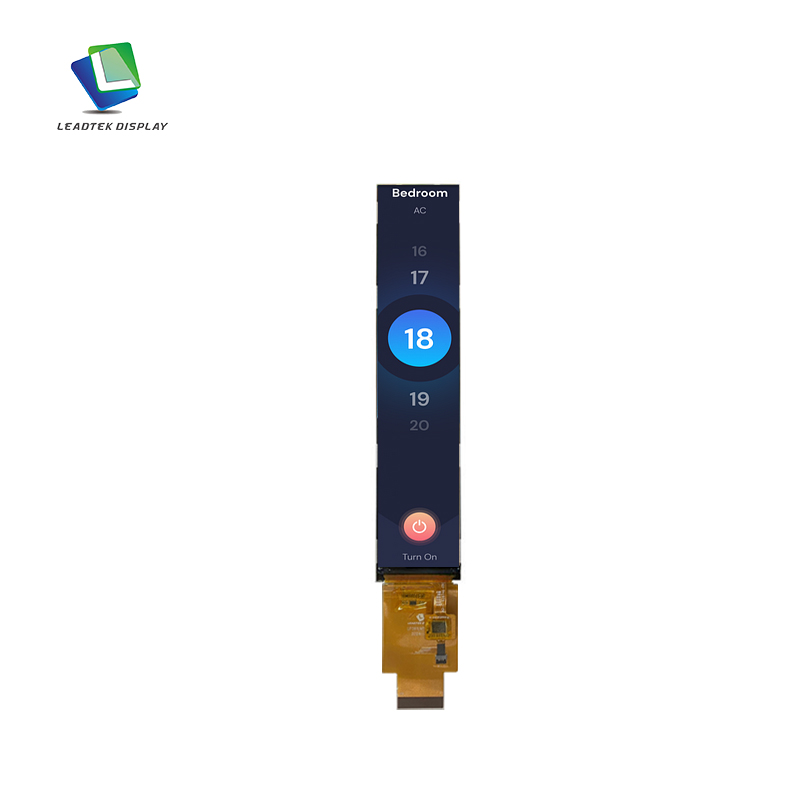

6.1" IPS LCD Module for Smart Home Applications
The 6.1-inch LTK061FTBLM11-V0 IPS display (280×1424 resolution) delivers crisp visuals with 450 cd/m² brightness and wide viewing angles, perfect for smart home control panels and IoT devices. Featuring a compact 36.39×163.86×4.36mm design with MIPI interface and NV3051F driver IC, it operates reliably from -20°C to +70°C, making it ideal for thermostats, security systems, and voice assistants. (Active Area: 29.99×152.51mm | Storage: -30°C to +80°C)
- Product Details
| Size (inch) | 6.1 |
| Part Number. | LTK061FTBLM11-V0 |
| Display Mode | IPS |
| Resolution | 280*1424 |
| Interface | MIPI |
| Luminance (cd/m²) | 450 |
|
Module IC Model |
NV3051F |
| Active Area (mm) | 29.99*152.51 |

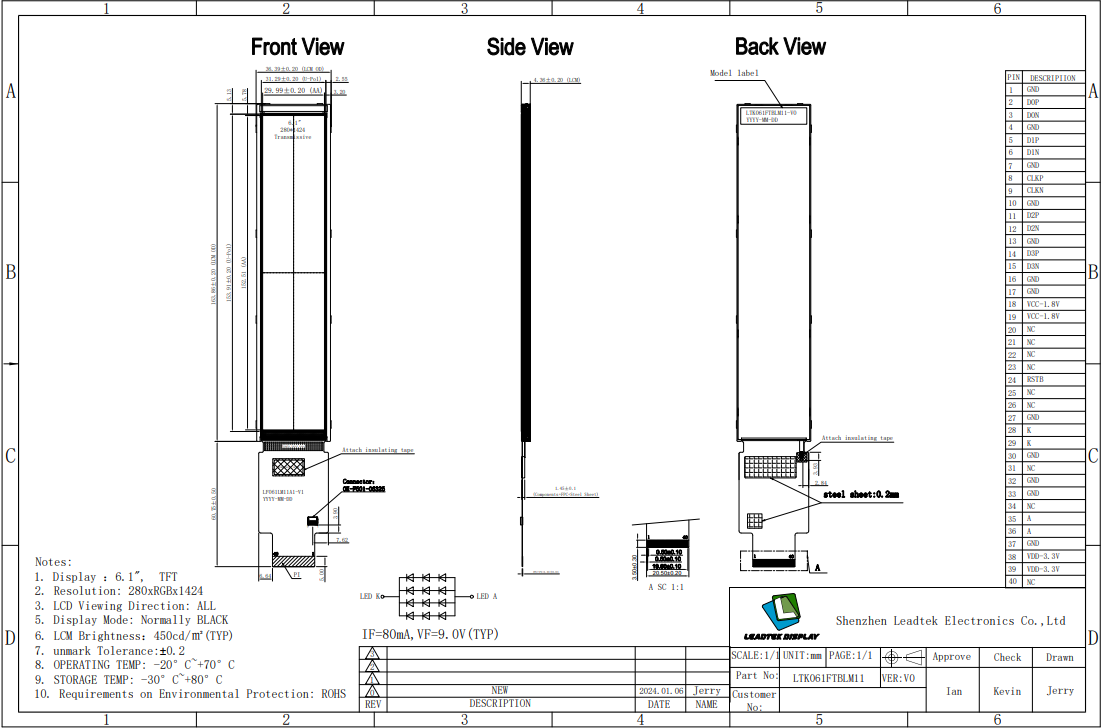

| LCM Outline Dimension (mm) | 36.39*163.86*4.36 |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
