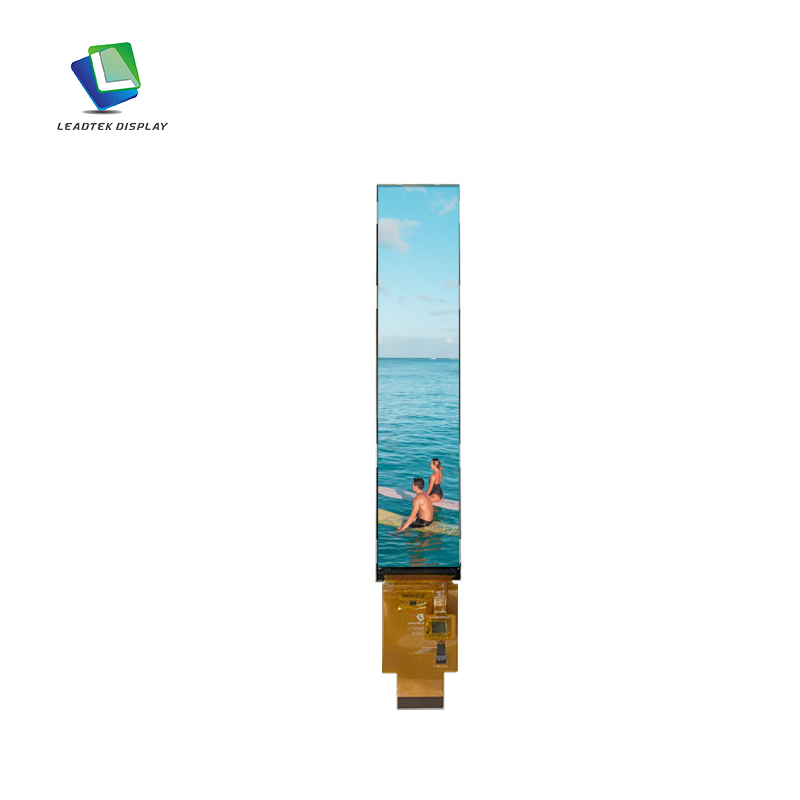

High-Brightness 5.5" 1080*1920 IPS LCD Module for Industrial Applications
Introducing the LTK061FTBLM11-V0, a 6.1" IPS LCD module tailored for smart industrial applications. The module has a resolution of 1080*1920 pixels, works via the MIPI interface, and has a brightness of up to 800cd/m². The effective display area is 68.04*120.96mm, and the package size is 70.64*129.21*1.47mm. The module can operate stably in a temperature range of -20℃ to +70℃, and the storage temperature range is -30℃ to +80℃. The module ensures clear, high-quality visuals and stable performance, making it an ideal choice for a variety of smart industrial applications.
- Product Details
| Size (inch) | 6.1 |
| Part Number. | LTK061FTBLM11-V0 |
| Display Mode | IPS |
| Resolution | 1080*1920 |
| Interface | MIPI |
| Luminance (cd/m²) | 800 |
| Drive IC |
HX8399C |
| Active Area (mm) | 68.04*120.96 |
| Outline Dimension (mm) | 70.64*129.21*1.47 |
| Touch Screen | NA |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
