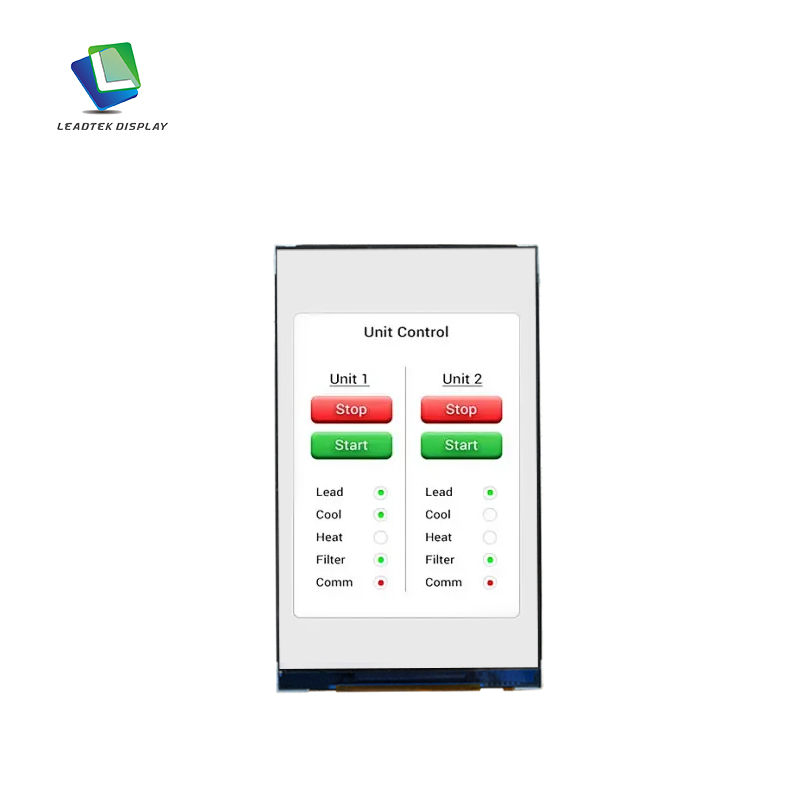

8.0" 800*1280 IPS LCD Module for Smart Industrial Applications
The LTK080WXBLM15-V0 is an 8.0-inch IPS TFT LCD module designed for industrial applications requiring high reliability and wide viewing angles. Featuring a resolution of 800×1280 and 16.7M colors, it delivers sharp and vibrant visuals across all directions. The module supports a MIPI 4-lane interface and integrates the ILI9881C driver IC for stable performance. With a brightness of 420 cd/m², it ensures clear visibility even in high-ambient light environments. Its wide operating temperature range (-20°C to +60°C) make it ideal for harsh or demanding industrial environments.
- Product Details
| Size (inch) | TFT 8.0'' |
| Part Number. | LTK080WXBLM15-V0 |
| Display Mode | IPS |
| Resolution |
800*1280 |
|
Display colors |
16.7M |
|
Viewing Direction |
ALL |
| Interface | MIPI 4 lane |
| Luminance (cd/m²) | 420 |
| Active Area (mm) | 107.64(H)x172.22(V) |
| LCM Outline Dimension (mm) |
114.70(H)x184.20(V)x2.51(T) |
|
Driver IC |
ILI9881C |
| Operating Temp | -20~+60℃ |
| Storage Temp | -30~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
