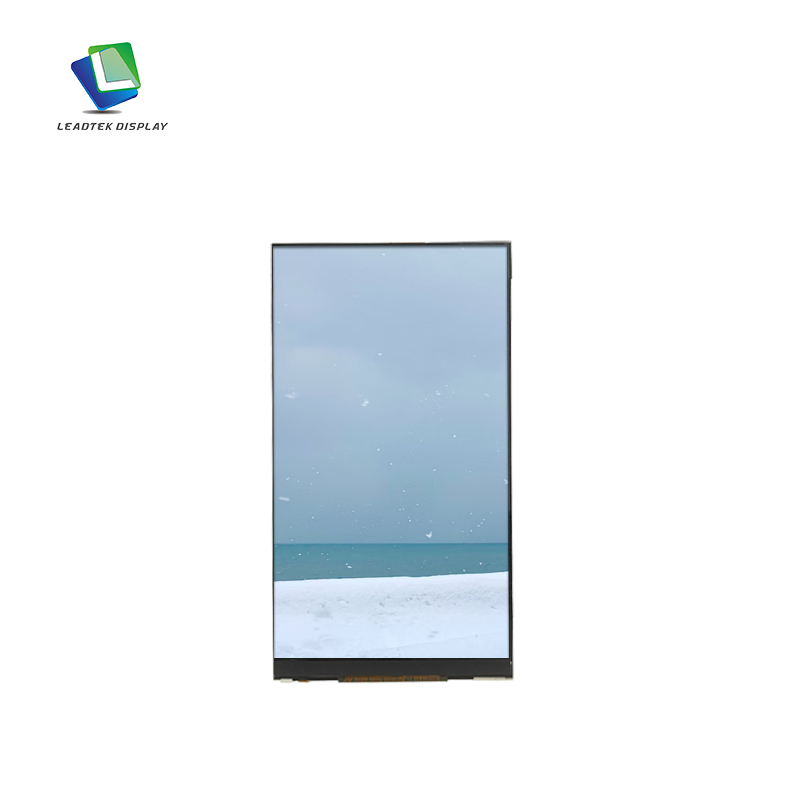

5.0 Inch TFT LCD Display 720*1280 Mipi LCD Display Module
The LTK050H3146W-V0 is a 5.0-inch IPS display engineered for smart medical and healthcare applications. Featuring a 720x1280 resolution and 300 cd/m² luminance, it delivers sharp, bright visuals for critical information display.
Its compact and slim design fits seamlessly into handheld diagnostic tools, medical monitoring systems, and digital health interfaces. With a wide operating temperature range and MIPI interface, this display ensures reliable performance and efficient integration in modern healthcare environments.
- Product Details
| Size (inch) | 5.0 |
| Part Number. | LTK050H3146W-V0 |
| Display Mode | IPS |
| Resolution | 720*1280 |
| Interface | MIPI |
| Luminance (cd/m²) | 300 |
| Active Area (mm) | 62.10*110.40 |
| Outline Dimension (mm) | 65.30*119.30*1.70 |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
