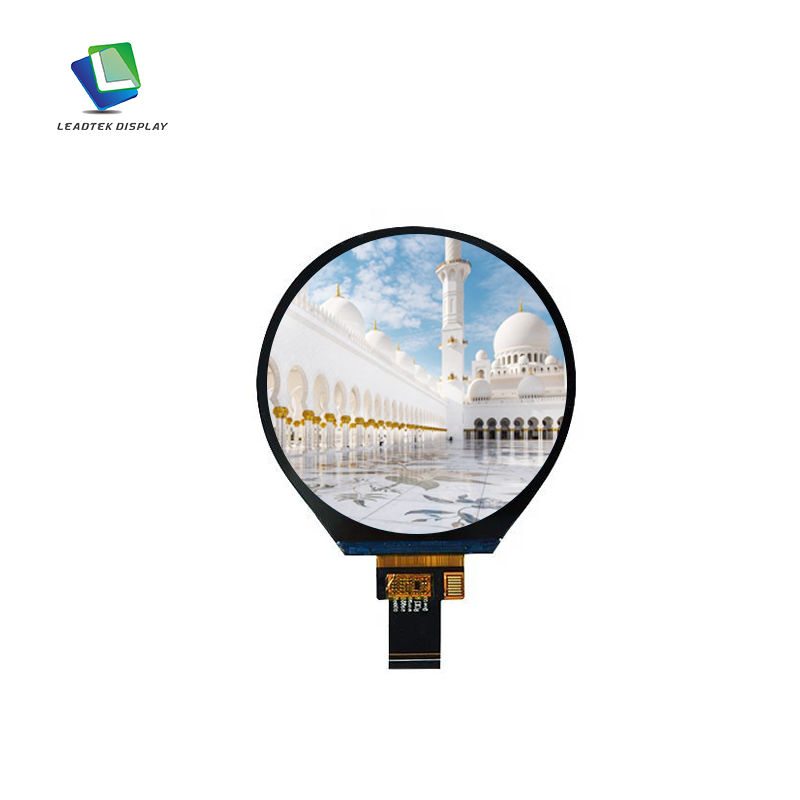

3.4" Round TFT LCD Display with Resolution 800*800p for Smart Home
This 3.4" display, model LTK034MNBLM12-V0, features a Normal Black mode and a high resolution of 800x800 pixels with RGB. It utilizes a MIPI interface and offers a brightness of 350 nits. The compact dimensions are 87.60mm (W) x 87.60mm (L) for the active area and 94.90mm (W) x 96.95mm (L) x 2.24mm (T) for the overall size. Operating reliably in temperatures from -20℃ to +70℃ and capable of storage between -30℃ to +80℃, this display is ideal for various applications demanding clarity and durability.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 3.4 |
| Part Number. | LTK034MNBLM12-V0 |
| Display Mode | Normal Black |
| Resolution | 800*RGB*800 |
| Interface | MIPI |
|
Expandable interface |
SPI+RGB |
| Luminance (cd/m²) | 350 |
| Active Area (mm) | 87.60*87.60 |
| Outline Dimension (mm) |
94.90*96.95*2.24 |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp | -30℃~ +80℃ |

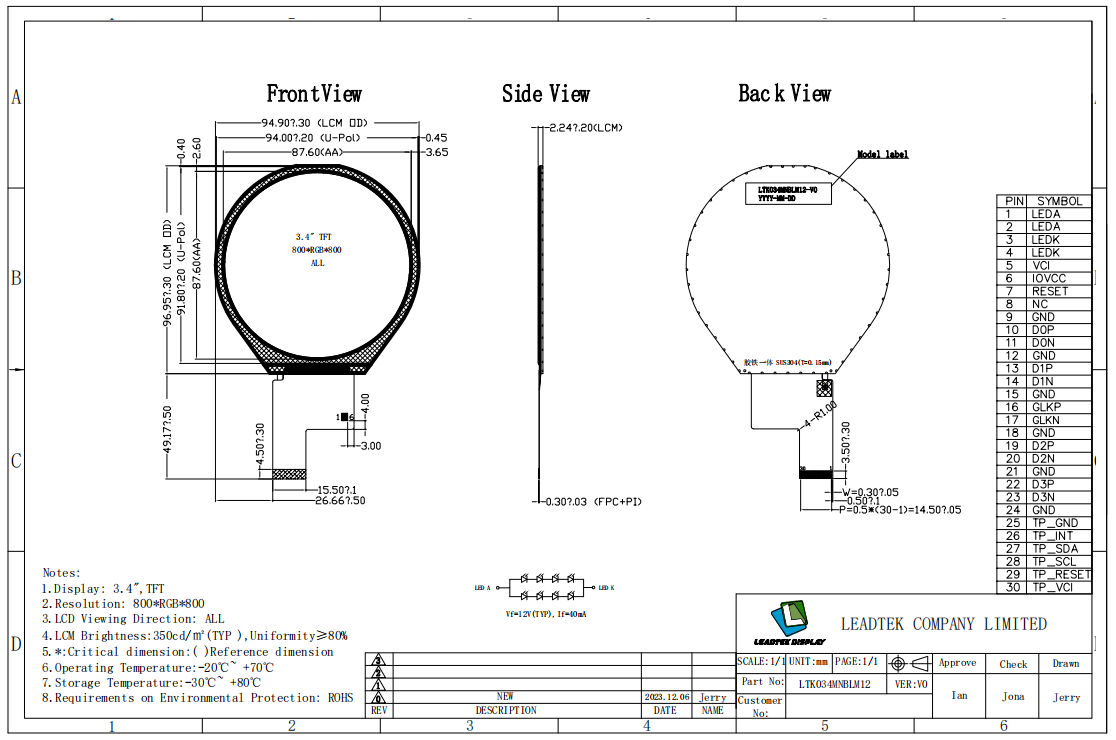

PRODUCT DRAWING
