5 Inch LCD Screen TFT LCD Display 720*1080 IPS Panel RGB 300 Nits

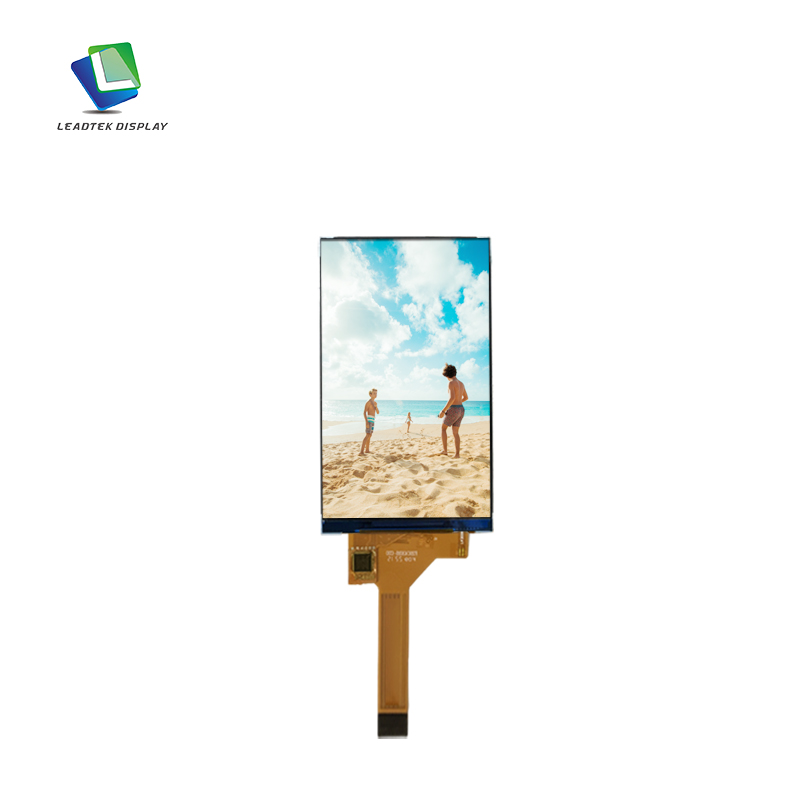

The LTK050HDHLM13-V0 is a 5.0-inch IPS LCD module designed for industrial applications, delivering sharp HD (720×1280) resolution with wide viewing angles and consistent color performance. With a 300 cd/m² high-brightness display and an RGB/MIPI interface, it ensures reliable visibility and flexible integration in smart industrial equipment. The compact 65.3×119.3×1.7mm design houses an active area of 62.1×110.4mm, while its -10°C to +60°C operating range and NV3052CGRB driver IC provide stability in harsh environments. Suitable for HMIs, control panels, and IoT devices, it balances durability and high-quality display performance for industrial automation solutions.
- Product Details
|
Part Number. |
LTK050HDHLM13-V0 |
| Size(inch) | 5.0 |
|
Display Mode |
IPS |
|
Resolution |
720*1280 |
|
Interface |
RGB |
|
ExpandableInterface |
MIPI |
|
Luminance (cd/m²) |
300 |
|
Driver IC |
NV3052CGRB |
|
Active Area (mm) |
62.10*110.40 |
|

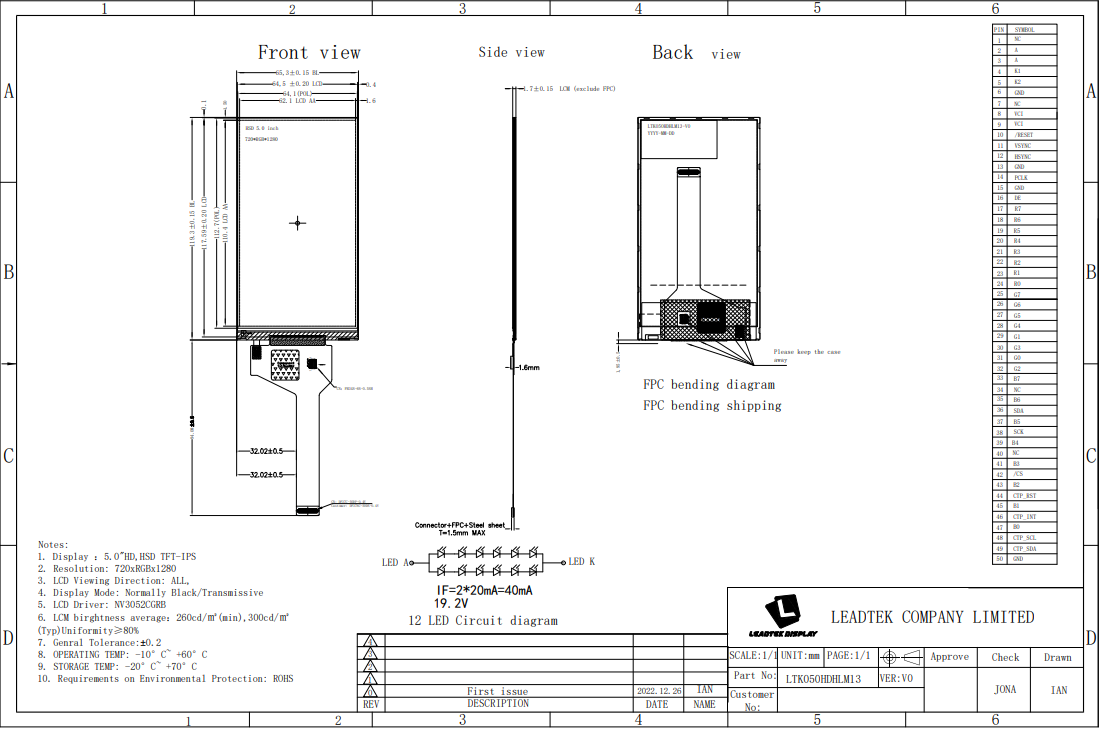

Outline Dimension (mm) |
65.30*119.30*1.70 |
|
Operating Temp |
-10~+60℃ |
|
Storage Temp |
-20~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
