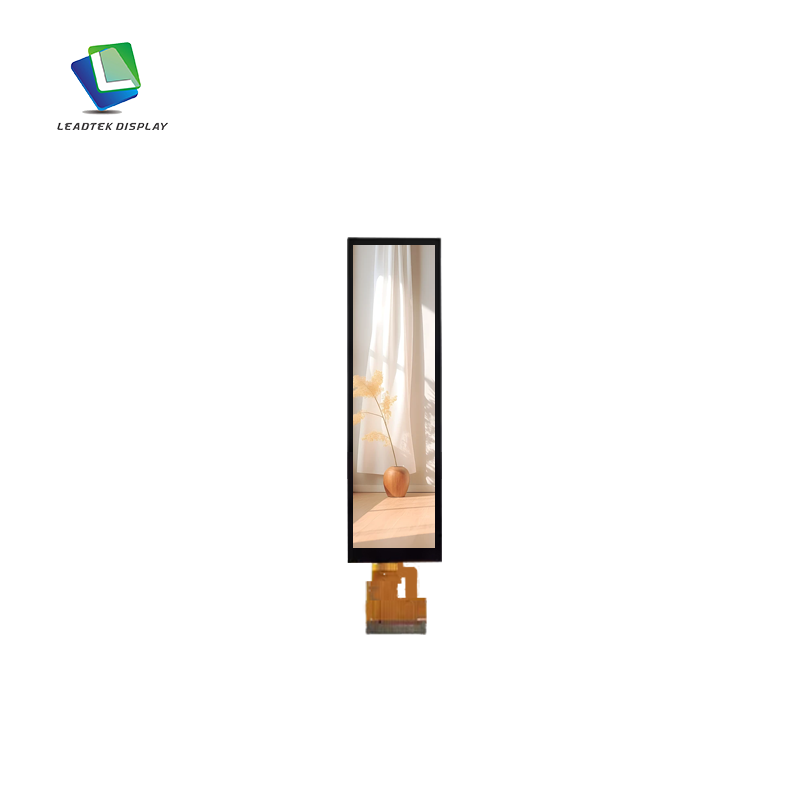

3.69" 172*640 IPS LCD Module for Smart Home Applications
This LTK037FTBCT11-V0 IPS LCD module features a resolution of 172*640 pixels and operates via MIPI interface with a brightness of 350 cd/m². The active area measures 22.58*84.00 mm, and the overall dimensions are 28.89*93.10*4.03 mm. Equipped with a capacitive touch panel (CTP), it functions reliably in temperatures ranging from -20℃ to +70℃, with storage conditions from -30℃ to +80℃. Designed for smart home applications, it ensures clear, detailed visuals and stable performance in various home environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 3.69 |
| Part Number. | LTK037FTBCT11-V0 |
| Display Mode | IPS |
| Resolution | 172*640 |
| Interface | MIPI |
|
Expandable interface |
QSPI+RGB |
| Luminance (cd/m²) | 300 |
|
Module IC Model |
AXS15231B |

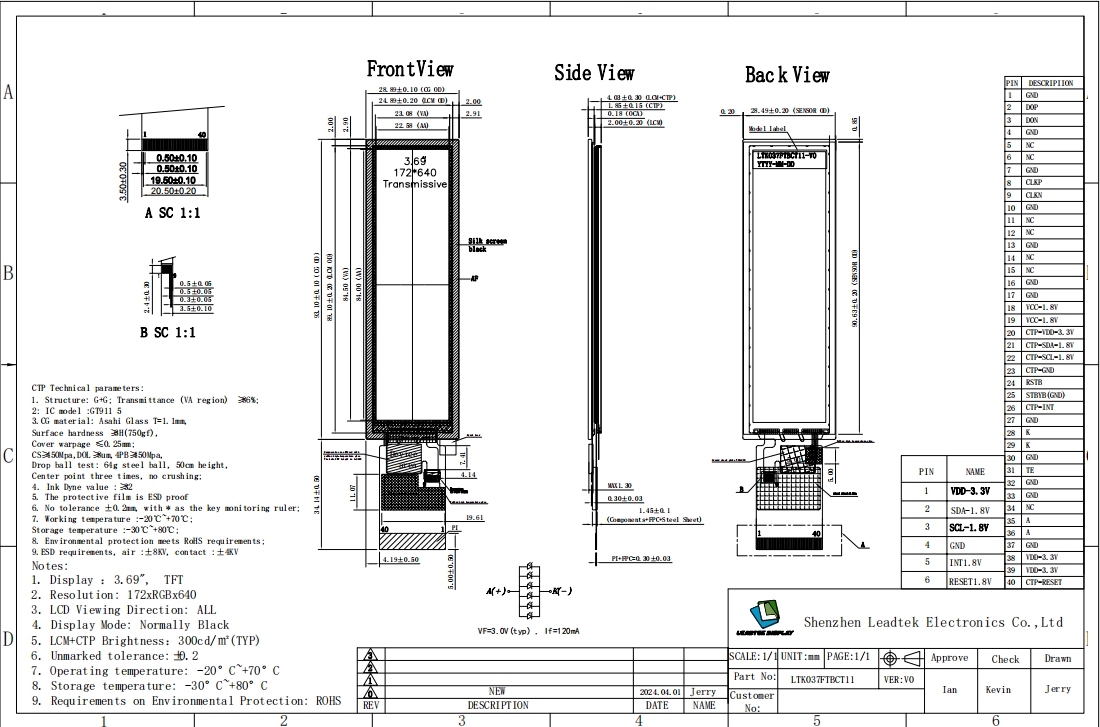

| Active Area (mm) | 22.58*84.00 |
| Outline Dimension (mm) | 28.89*93.10*4.03 |
| Touch Screen | CTP |
|
CTP Type |
GG |
|
CTP Driver IC |
GT911 |
|
CTP Interface |
IIC |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
