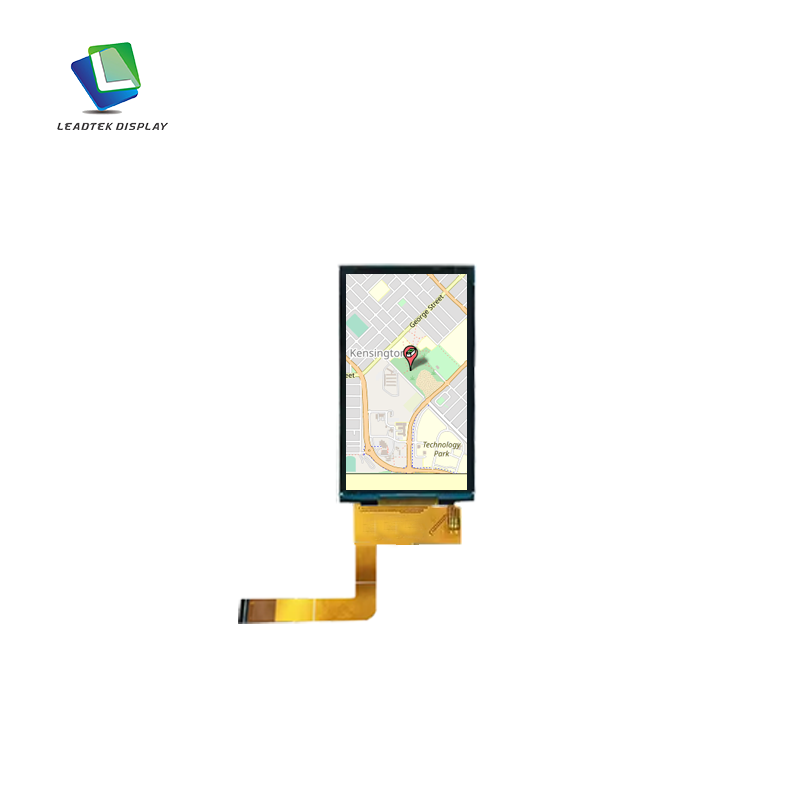

Custom 3.51 inch 340*800 LCD Display Module Screen
This LTK346HS4003B-V4 IPS LCD module features a resolution of 340*800 pixels and operates via MIPI interface with a brightness of 330 cd/m². The active area measures 81.00*33.97 mm, and the overall dimensions are 89.00*37.27*1.60 mm. It functions reliably in temperatures ranging from -20℃ to +70℃, with storage conditions from -30℃ to +80℃. Designed for smart transportation applications, it ensures clear, high-quality visuals and robust performance in various transportation environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 3.51 |
| Part Number. | LTK346HS4003B-V4 |
| Display Mode | IPS |
| Resolution | 340*800 |
| Interface | MIPI |
|
Expandable interface |
SPI+RGB |
| Luminance (cd/m²) | 330 |
| Active Area (mm) | 81.00*33.97 |
| Outline Dimension (mm) | 89.00*37.27*1.60 |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
