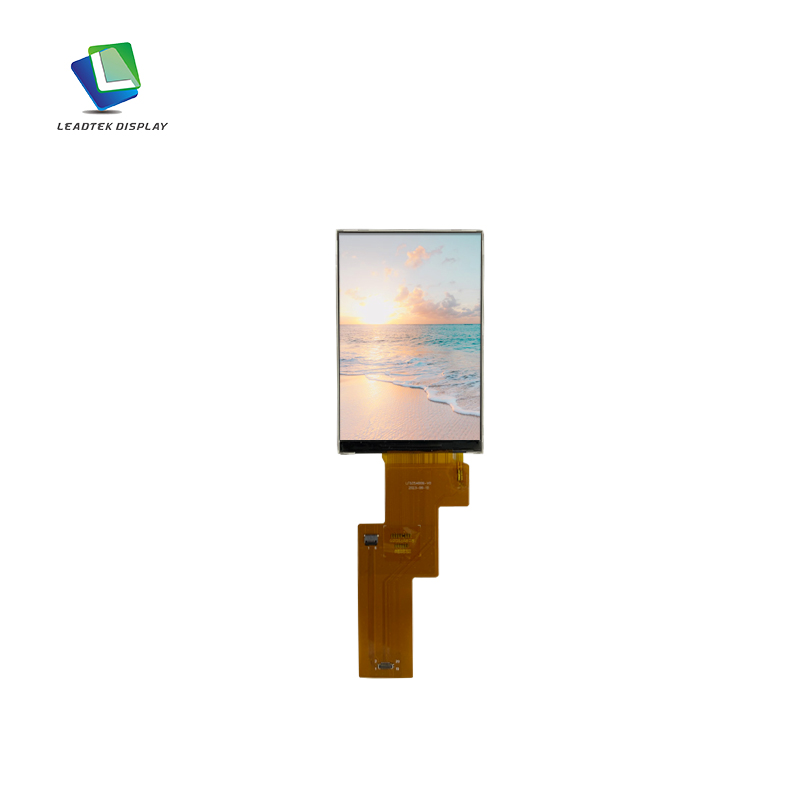

3.5 inch 320*480 TFT LCD Display use for Smart Home Portrait
The LTK035HVCLM34-V1 is a 3.5-inch TFT LCD display specifically designed for smart home applications. It features an IPS display mode with a resolution of 320x480. The display utilizes a SPI 4Line interface for easy connectivity. With a luminance of 380cd/㎡(TYP), it offers bright and vibrant colors. The active area measures 48.96mm x 73.44mm, and the outline dimension is 54.50*83.00*2.20mm. This LCD product is an ideal choice for smart home systems.
- Product Details
|
Part Number. |
LTK035HVCLM34-V1 |
| Size | 3.5'' |
|
Display Mode |
TN |
|
Resolution |
320*480 |
|
Interface |
SPI |
|
Expandable interface |
MCU/RGB |
|
Luminance (cd/m²) |
380 |
|
Active Area (mm) |
48.96*73.44 |
|
Outline Dimension (mm) |
54.50*83.00*2.20 |
|
Operating Temp |
-10~+60℃ |
|
Storage Temp |
-20~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
Related Products
-
4.3 Inch 480x800 MIPI TFT Module with High Brightness 1000nits -
5.08 Inch Square IPS High Brightness TFT LCD Display with TDDI... -
13.3 Inch Full HD 430nits IPS TFT Display with eDP Interface -
2.8 Inch 240*320 High Bightness TFT LCD Module with MCU Interface -

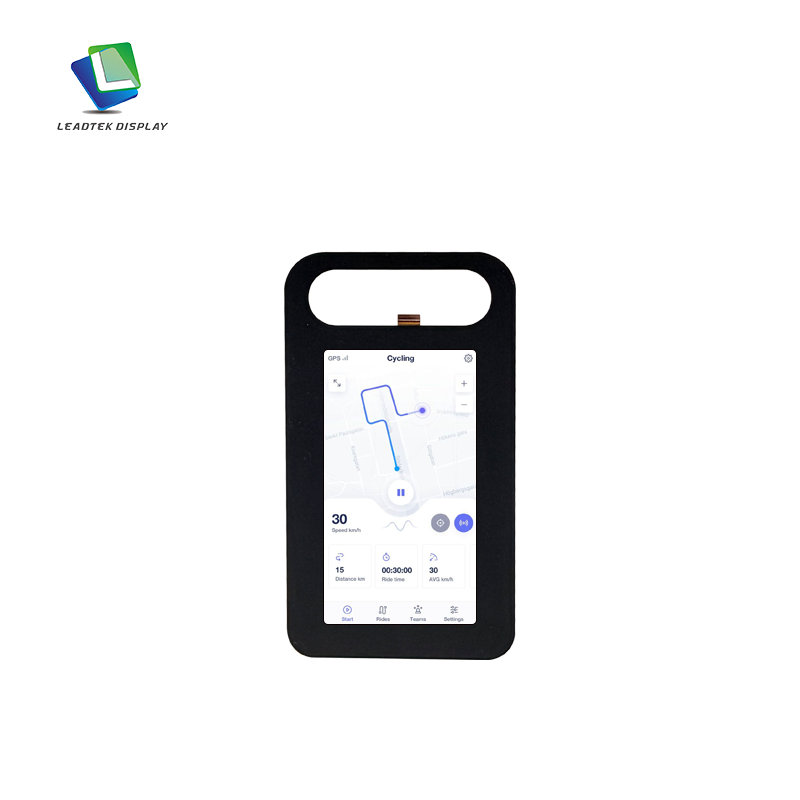

5.0 inch 720*1280 High Brightness TDDI TFT Display with MIPI... -

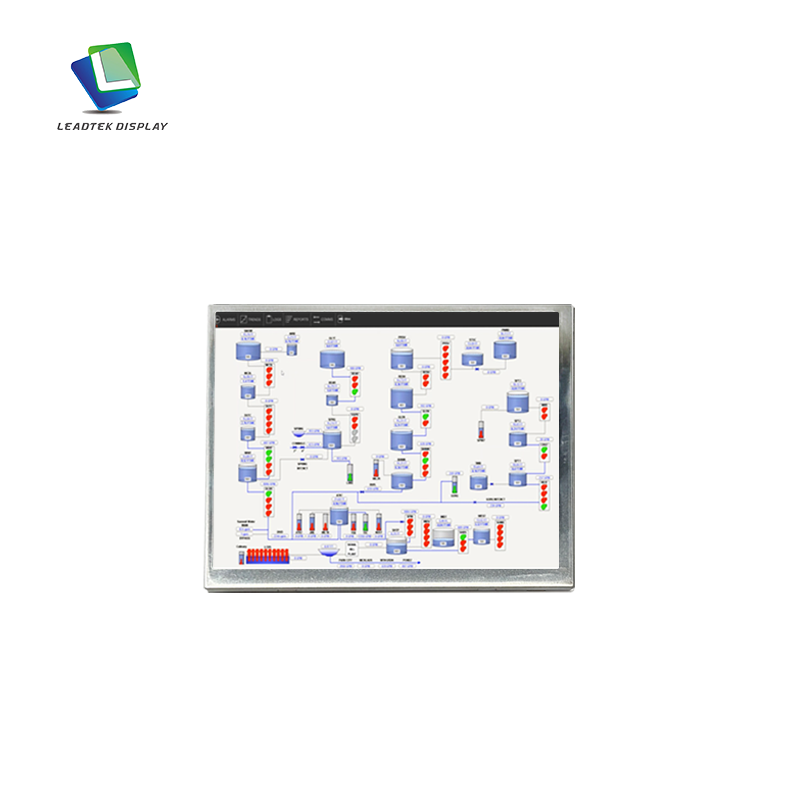

5.7 Inch 640*480 RGB TFT Display with Wide Temprature -
5.7 Inch 640*480 IPS TFT Touch Display with RGB Interface -
8.0 Inch 1024*768 IPS Smart Touch TFT LCD Display -
9.7 Inch 1024*768 TFT Touch Display for Industry and Medical -

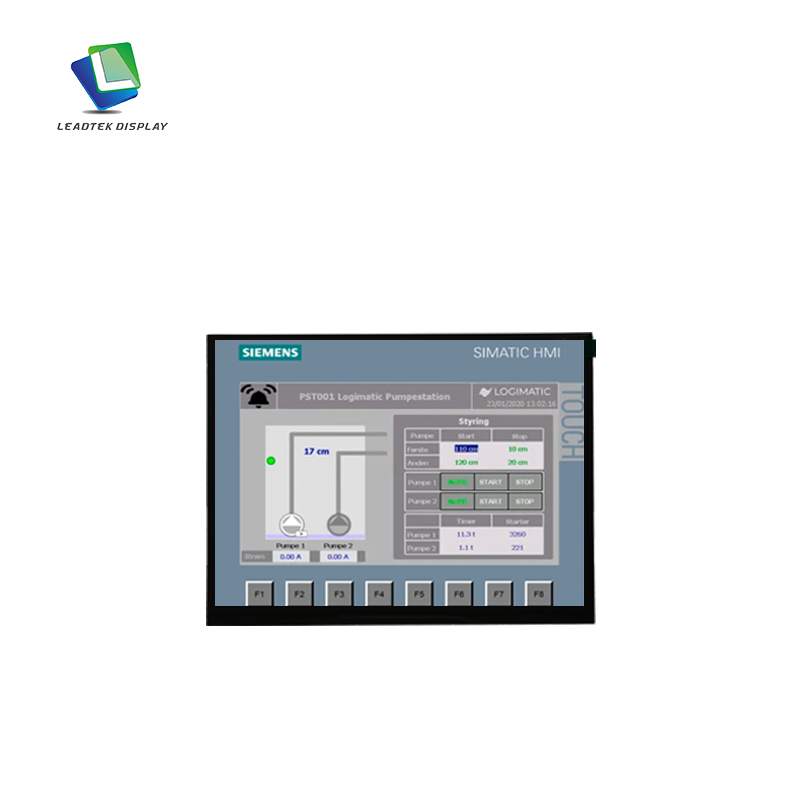

9.7 Inch 1024*768 LVDS TFT Display for Smart Industry
