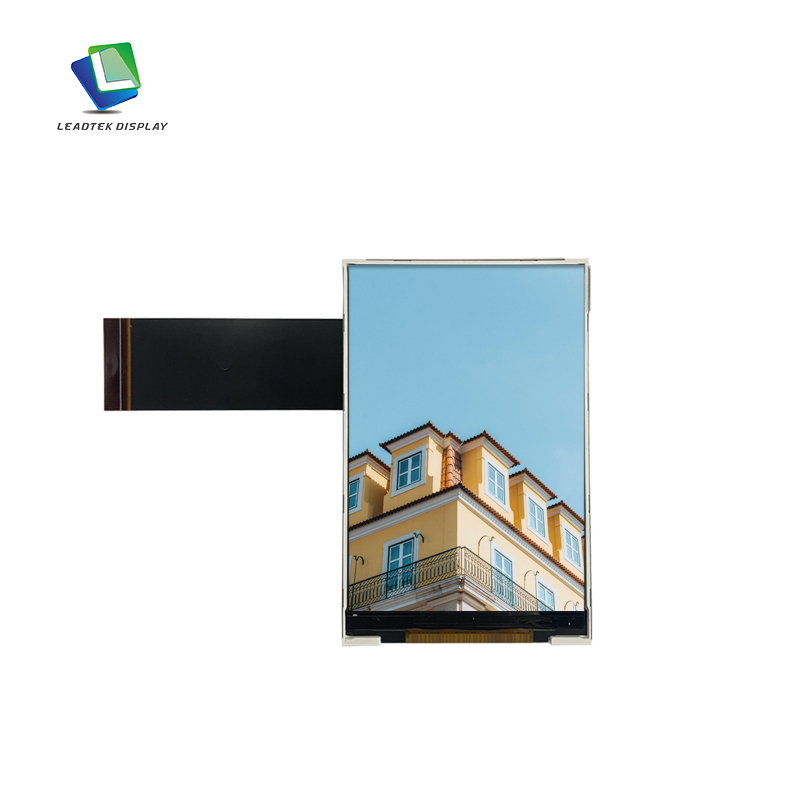

3.5'' 320RGB x480 TFT LCD module for portable device
The LTK035HVCLM36-V2 is a 3.5-inch LCD display with a portrait shape and IPS display mode. It has a resolution of 320x480 and supports an 8/9/16/MCU interface. With a luminance of 300cd/㎡(TYP), it provides clear and vibrant visuals. The active area measures 48.96mm x 73.44mm, and the outline dimension is 0.153mm x 0.153mm. This LCD product is suitable for applications in smart homes.
- Product Details
| Moudle no | LTK035HVCLM36-V2 |
| Size(inch) | 3.5 |
| Resolution | 320*480 |
| Viewing Angle | IPS |
| Active Aera (mm) | 48.96*73.44 |

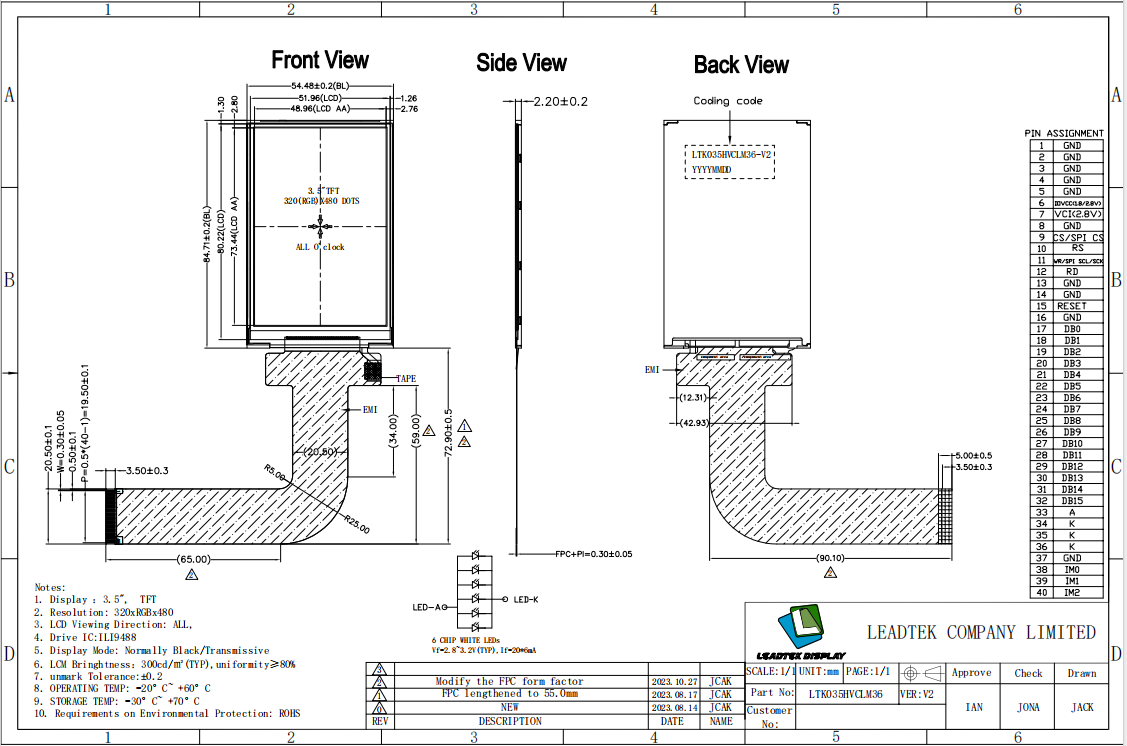

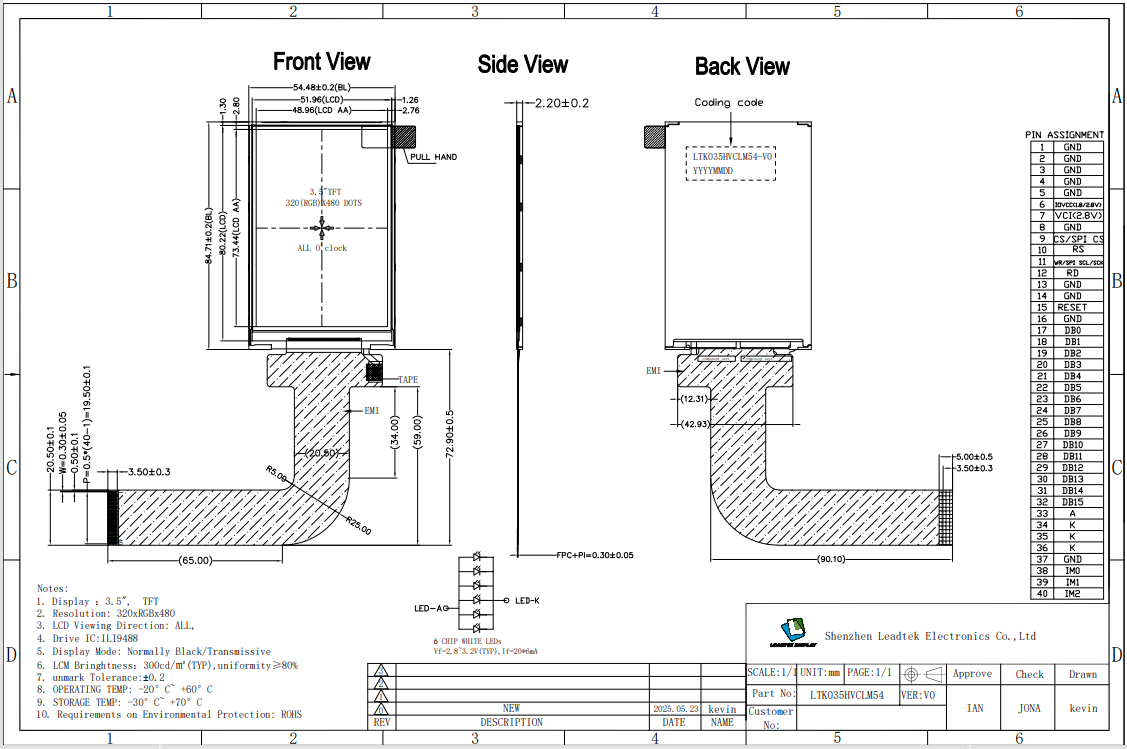

| Outline Dimension (mm) | 54.48*84.71*2.20 |
| Interface | MCU |
|
Expandable interface |
RGB/SPI |
| Luminance | 300 |
| Operating Temp | -20~+60℃ |
| Storage Temp | -30~+70℃ |
