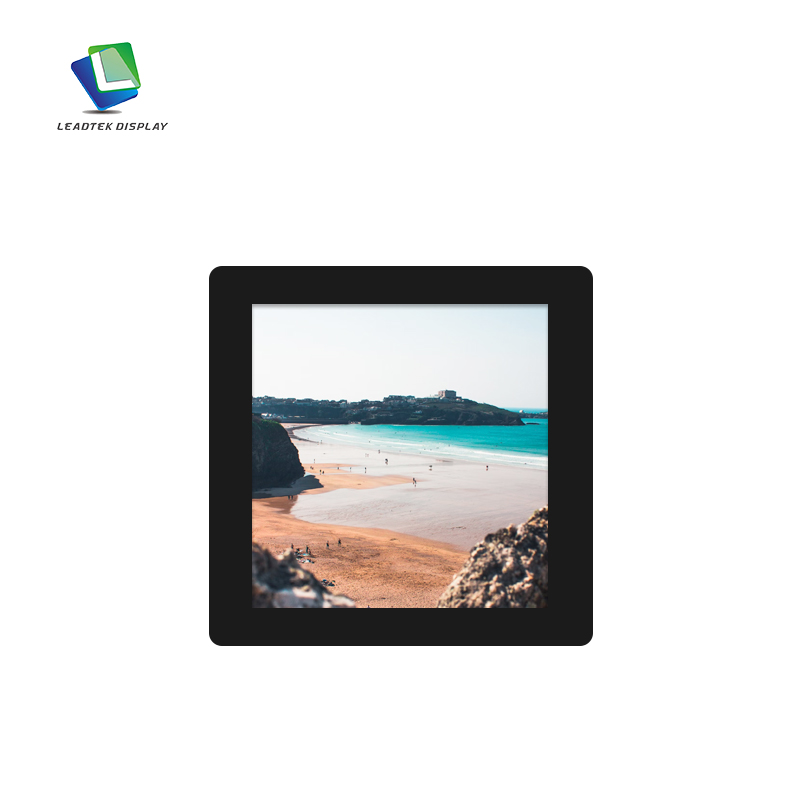

3.95 inch 480*480 TFT LCD Touch Panel use for Smart Home
The LTK040H5025C-CTP-B-TDM-V2 is a 3.95-inch IPS display with a G+FF capacitive touchscreen, designed for smart home applications. It offers a 71.86mm × 70.18mm active area, wide viewing angles, and supports RGB and MIPI interfaces for flexible connectivity. With reliable performance in temperatures from -20℃ to +70℃, it is ideal for smart control panels, locks, voice assistants, and appliances, enhancing user interaction in modern smart home systems.
- Product Details
| Model number |
LTK040H5025C-CTP-B-TDM-V2 |
| Size(inch) | 4.0 |
| Viewing Direction | ALL |
|
Resolution |
480*480 |
| Outline dimension(mm) |
84.80(W)×84.80(H)×3.55(T)
|
| LCD AA(mm) |
71.86(W)×70.18(H)
|
| Interface |
RGB
|
|
Expandable interface |
MIPI |
| Luminance (cd/m²) |
280
|
|
Touch Screen |
CTP |
|
CTP Type |
G+FF |
|
CTP Driver IC |
FT5446DQS-Q03 |
|
CTP Interface |
IIC |
|
Operating Temperature |
-20~+70℃ |
| Storage Temperature | -30~+80℃ |
