5.5" 1080x1920 IPS TFT Display with 680 cd/m² Brightness
This 5.5-inch IPS display has a resolution of up to 1080x1920, is equipped with a MIPI interface, and has a brightness of up to 680cd/m². The effective display area is 68.04 (H) x 120.96 (W) mm, and the overall size is 80.00 (W) x 211.11 (H) x 3.30 (D). It is equipped with a capacitive touch screen (CTP), the touch screen structure is GFF, the operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C. It is suitable for special applications in industrial scenarios and supports glove touch and harsh environments.
- Product Details
| Size (inch) | 5.5 |
| Part Number. | LTK055FHMCT11-V0 |
| Display Mode | IPS |
| Resolution | 1080*1920 |
| Interface | MIPI |
| Luminance (cd/m²) | 680 |
| Active Area (mm) | 68.04*120.96 |
| Outline Dimension (mm) | 80.00*211.11*3.30 |
| Touch Screen | CTP |
|
TP Structure |
GFF |
| TP IC Model |
GT1151QM |
| IC Interface |
IIC |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |

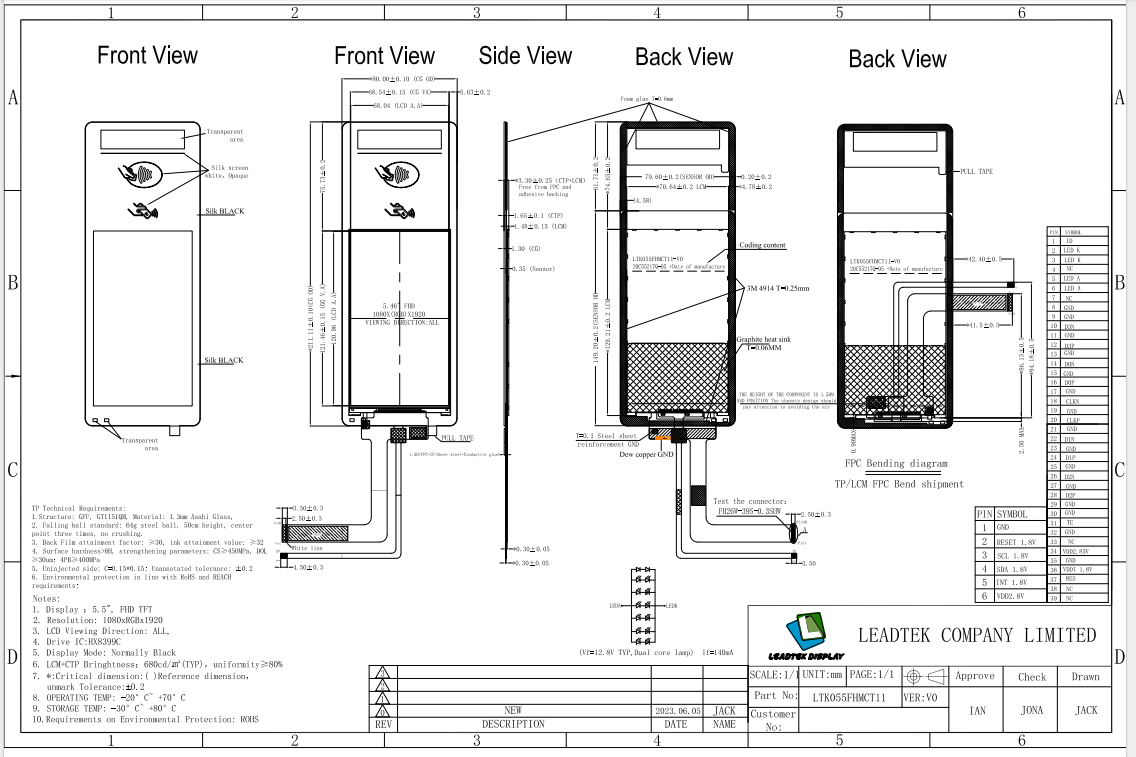

PRODUCT DRAWING
