10.1 Inch 800*1280 resolution MIPI Interface IPS LCD Panel
The LTK101WX08Q-V2 is a 10.1-inch IPS display designed for smart industrial applications. With an 800x1280 resolution and 500 cd/m² brightness, it ensures clear and vibrant visuals in diverse environments. Its MIPI interface allows for efficient data transmission, while the wide operating temperature range (-20°C to +60°C) guarantees reliable performance in harsh conditions. The slim 2.75 mm profile and robust build make it ideal for embedded systems, control panels, and industrial automation solutions. The display's wide viewing angles and high contrast enhance user interaction and system visibility. Perfect for next-generation smart devices.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 10.1 |
| Part Number. | LTK101WX08Q-V2 |
| Display Mode | IPS |
| Resolution |
800*1280 |
| Interface | MIPI |
| Luminance (cd/m²) | 500 |
| Active Area (mm) | 135.36*216.58 |
| LCM Outline Dimension (mm) | 143.00*228.60*2.75 |
| Operating Temp | -20~+60℃ |
| Storage Temp | -30~+70℃ |

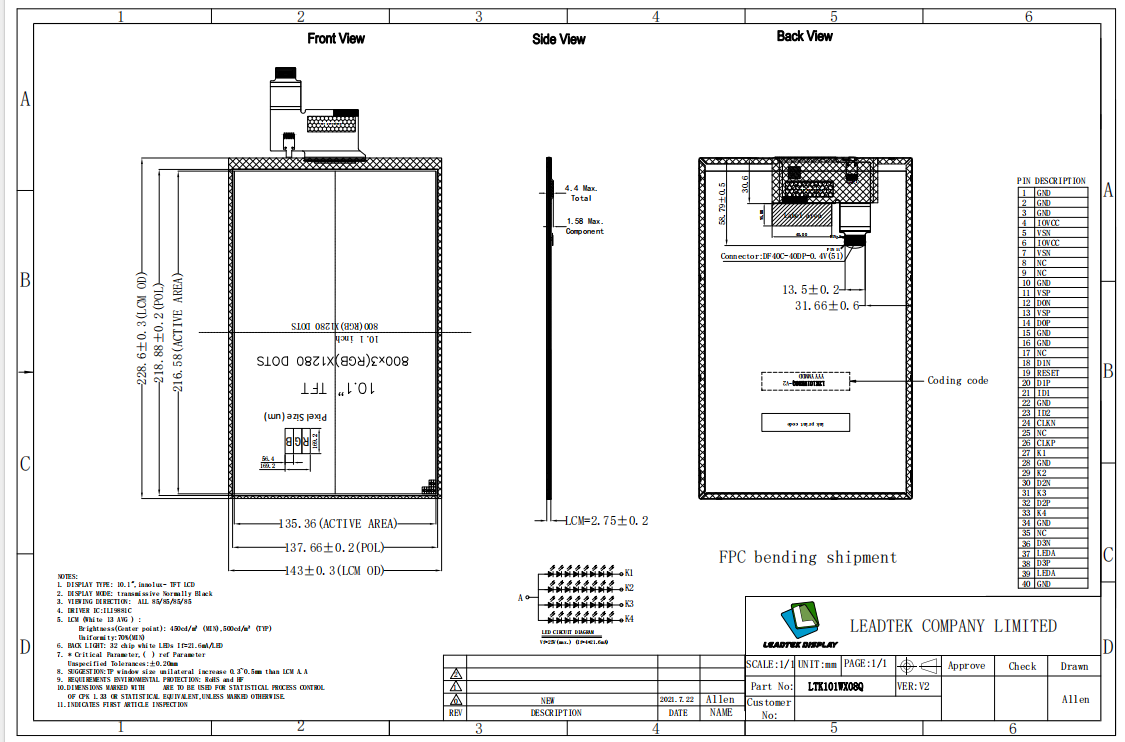

PRODUCT DRAWING
