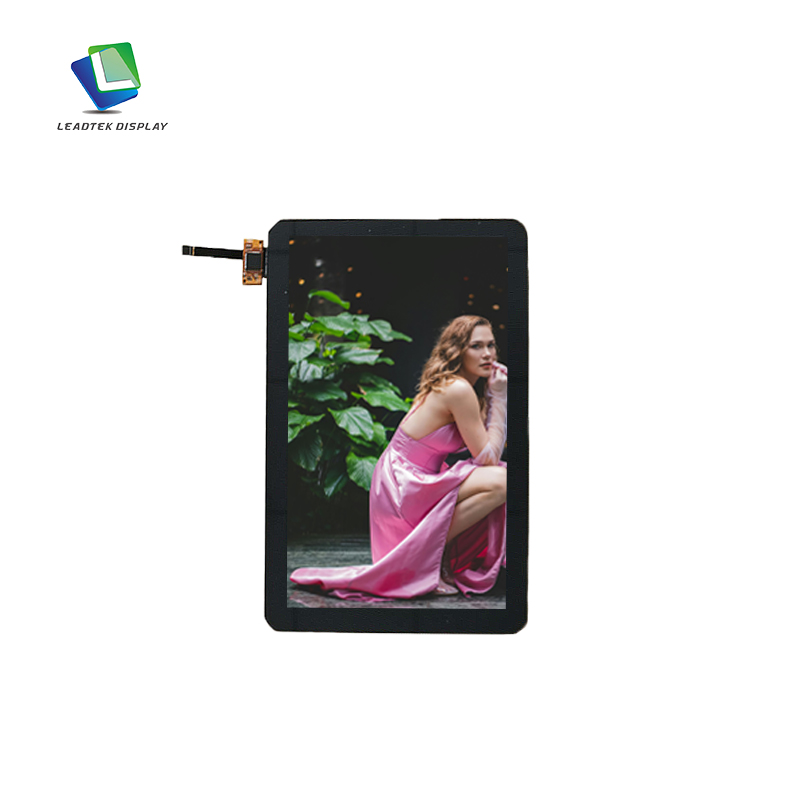

8.0" Portrait IPS MIPI Touch Display with 1200x1920 Resolution

The LTK080FTBCT25-V0 is an 8.0-inch IPS display with integrated capacitive touch functionality, designed for rugged smart industrial applications where reliability and flexibility matter most. With a sharp 1200 x 1920 resolution and support for 16.7 million colors, this display delivers crisp, vibrant visuals from all viewing angles—perfect for complex monitoring and control interfaces. Its luminance of 510 cd/m² ensures excellent visibility even in bright factory settings. The robust G+FF touchscreen structure, powered by the GT9271 touch controller, offers reliable glove and wet-finger touch support, making it ideal for operators wearing protective gear.

Inquire Now

BackPrevious Next

Product Details

Size (inch)	8.0
Part Number.	LTK080FTBCT25-V0
Display Mode	IPS
Resolution	1200*1920
Display colors	16.7M
Viewing Direction	ALL
Interface	MIPI
Luminance (cd/m²)	510
Active Area (mm)	107.64(H) x 172.22 (V)

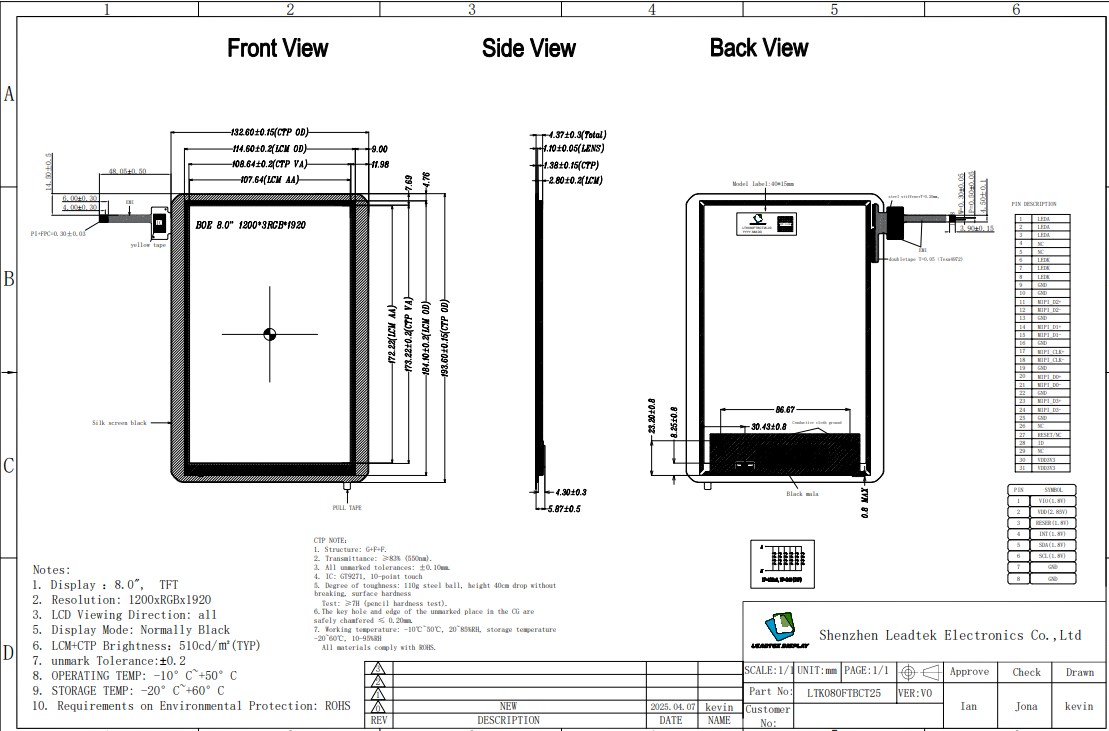

LCM+CTP Outline Dimension (mm)	132.60 (W) x193.60(V) x4.37(T)
Touch Screen	CTP
TP Structure	G+FF
TP IC Module	GT9271
TP Interface	IIC
Operating Temp	-10~+50℃
Storage Temp	-20~+60℃
