10.1 inch 1200*1920 MIPI interface TFT LCD display module
The LTK101FHNLM19-V1 is a high-performance10.1-inch IPS display designed for smart home applications. With a resolution-optimized MIPI interface and dual OTA7290B driver ICs, this display delivers vibrant visuals and smooth operation. It features a bright 350 cd/m² luminance, ensuring clear visibility in various lighting conditions. The ultra-slim2.65mm profileand wide-20°C to +60°C operating temperature rangemake it ideal for integration into modern smart home control panels, wall-mounted displays, and intelligent appliances. Itsactive area of 135.36mm × 216.57mmprovides ample screen space while maintaining a compact footprint.
- Product Details
| Part Number. |
LTK101FHNLM19-V1 |
| Size(inch) | 10.1 |
| Display Mode | IPS |
| Drive IC |
OTA7290B*2 |

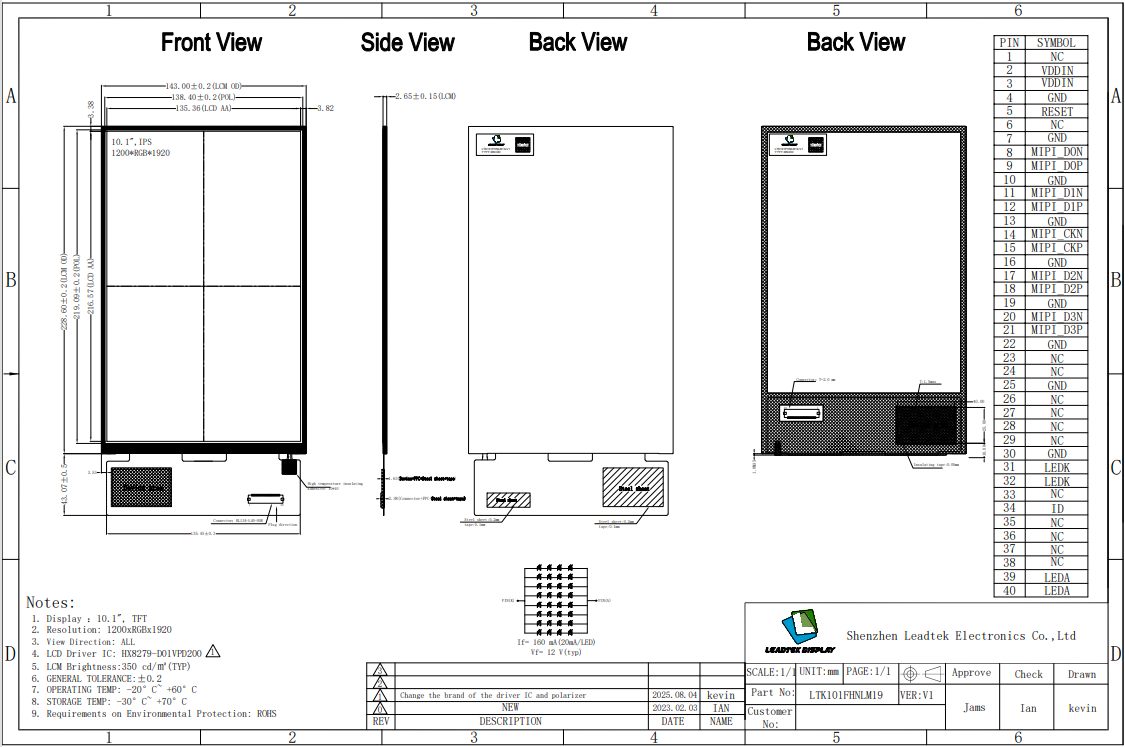

| Outline dimension(mm) |
143.0*228.6*2.65 |
| Active Area (mm) |
135.36*216.57 |
| Interface | MIPI |
| Luminance (cd/m²) | 350 |
|
Operating Temperature |
-20~+60℃ |
| Storage Temperature | -30~+70℃ |
