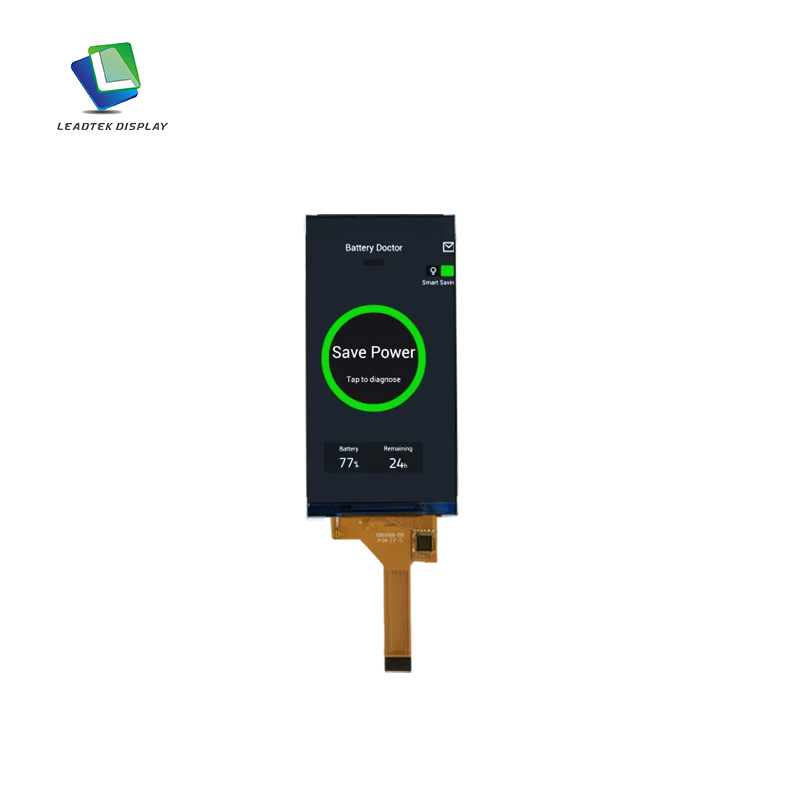

5 inch 480*854 20 pins MIPI interface TFT LCD display for smart home control system
This high-performance 5.0-inch IPS display features a sharp resolution of 480×854 and a bright 530 cd/m² luminance, ensuring excellent visibility in smart home environments. With an MIPI interface (expandable to SPI+RGB), it offers flexible connectivity for control panels, touchscreens, and IoT devices. The compact design (64.8×118.63×2.08 mm) and wide operating temperature range (-20~+70°C) make it ideal for indoor/outdoor smart home systems, including thermostats, security panels, and automation hubs.
- Product Details
| Part Number. |
LTK050FWHLM10-V0 |
| Size(inch) | 5.0 |
| Display Mode | IPS |
|
Resolution |
480*854 |
|
Interface |
MIPI |
|
Expandable Interface |
SPI+RGB |
|
Luminance (cd/m²) |
530 |
|
Active Area (mm) |
61.63*109.65 |
| Outline dimension(mm) |
64.80*118.63*2.08 |
|
Operating Temp |
-20~+70℃ |
| Storage Temp | -30~+80℃ |
