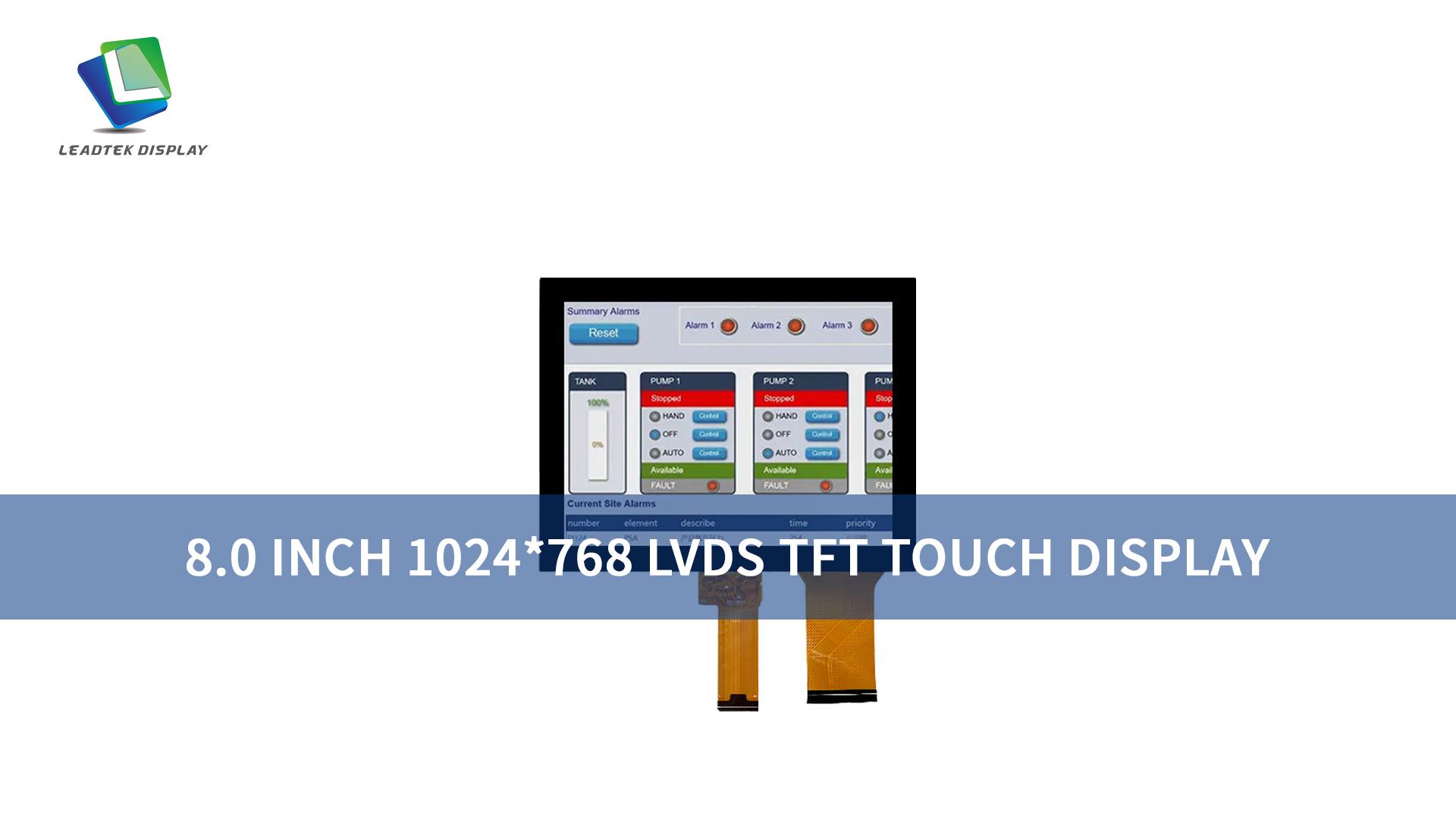

8.0 Inch 1024*768 IPS Smart Touch TFT LCD Display
The LTK080FTNCT29-V0 delivers clear, vibrant visuals with a 1024×768 resolution and wide viewing angles. Its G+G capacitive touch panel with ILI2511 driver IC provides smooth and responsive interaction. Featuring a LVDS interface, a 162.05×121.54 mm active area, and a slim 187.05×148.54×4.65 mm profile, it integrates seamlessly intosmart home devices, control panels, and interactive interfaces. With 250 cd/m² brightness and an operating range of -10℃ to +50℃, it ensures reliable performance in everyday home environments.
- Product Details
| Size(inch) | 8.0 |
| Mode |
LTK080FTNCT29-V0 |
|
Display Mode |
IPS |
|
Resolution |
1024*768 |
|
Interface |
LVDS |
|
Luminance (cd/m²) |
250 |
|
Active Area(mm) |
162.05(H)×121.54(V) |
|
Outline Dimension(mm) |
187.05(H)×148.54(V)×4.65(T) |
|
Touch Screen |
CTP |
|
CTP Type |
G+G |
| CTP Driver IC | ILI2511 |
|
Operating Temp |
-10~+50℃ |
|
Storage Temp |
-20~+60℃ |
