7 inch TFT LCD with 1024*600 Resolution LVDS Interface LCD Display
This 7-inch IPS LCD display (LTK700WS12H-V0) is designed for smart home applications, offering a high-resolution 1024x600 display for clear and vibrant visuals. With an LVDS interface and expandable RGB options, it provides versatile connectivity for a range of devices. The display offers a brightness of 400 cd/m², ensuring excellent visibility in various lighting conditions. Its slim profile (3.05 mm thickness) make it ideal for integration into space-constrained smart home systems. The product operates in a wide temperature range of -20°C to +70°C offers added durability.
- Product Details
|
Size (inch) |
7 inch |
| Part Number. |
LTK700WS12H-V0 |
| Display Mode |
IPS |
|
Resolution |
1024*600 |
| Interface | LVDS |
|
Expandable Interface |
RGB |
|
Luminance (cd/m²) |
400 |

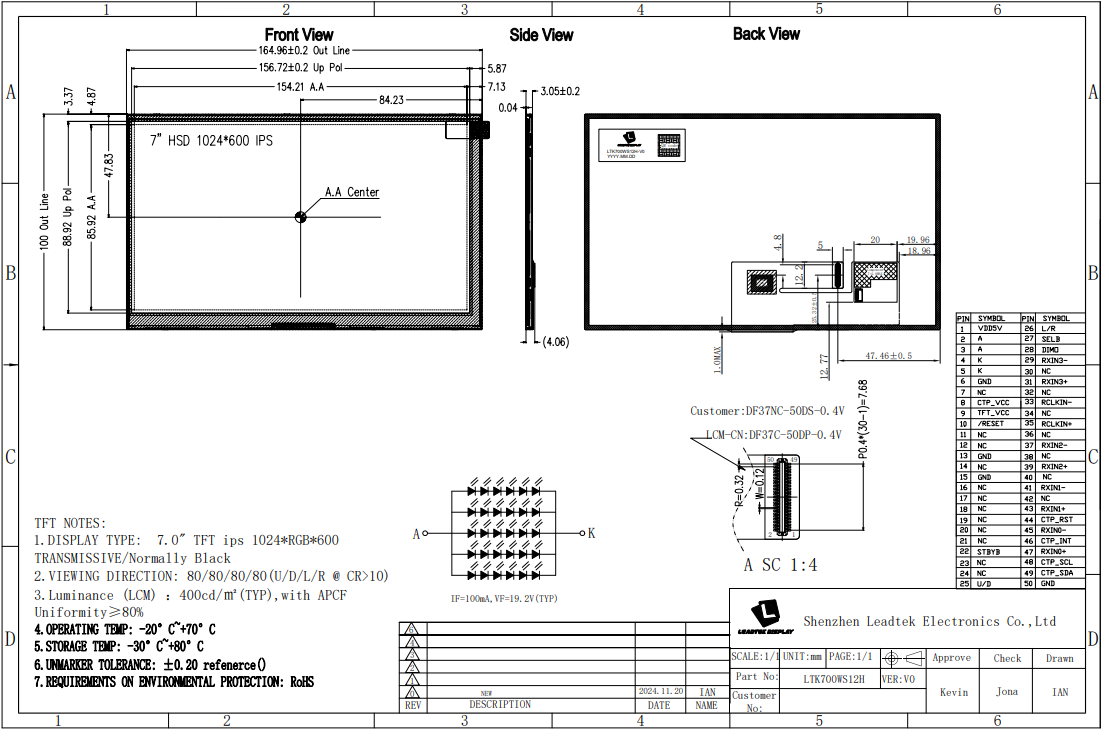

| LCD Active area (mm) | 154.21*85.92 |
| Outline dimension (mm) | 164.90*100.00*3.05 |
| Operating Temp | -20℃ ~ +70℃ |
| Storage Temp | -30℃ ~ +80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
