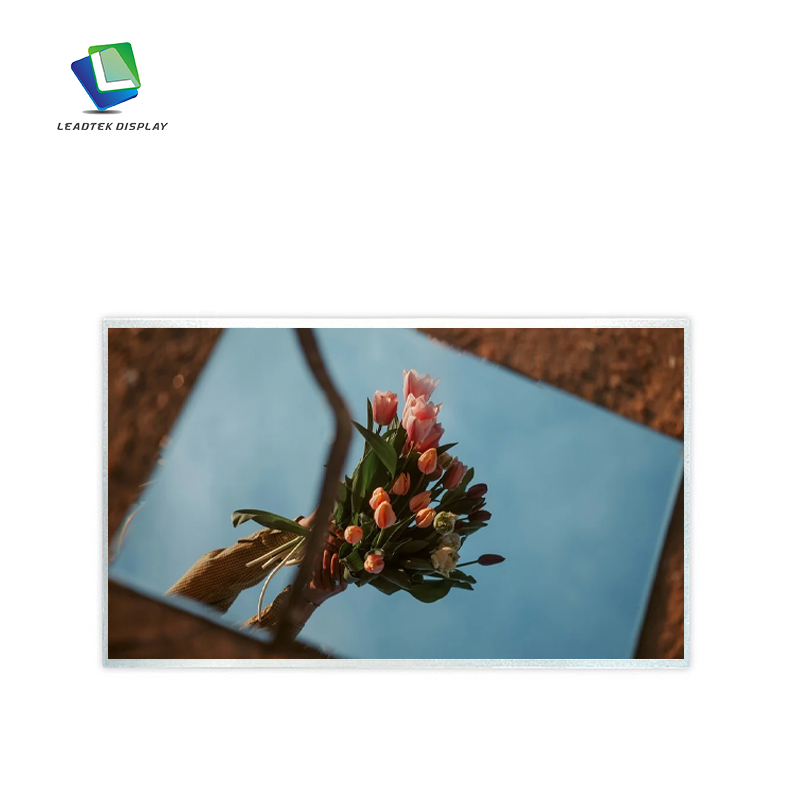

21.5 Inch 1920*1080 TFT LCD Panel With LVDS Interface
LTK215FHBLM02-V0 is color active matrix thin film transistor (TFT) liquid crystal display (LCD) that
uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel
and a driving circuit.This TFT LCD has a 21.5 (16:9) inch diagonally measured active display area with
(1920 horizontal by 1080 vertical pixel) resolution
- Product Details
| Part Number. |
LTK215FHBLM02-V0 |
| Size(inch) | 21.5 |
| Display Mode | IPS |
| Resolution |
1920*1080 |
| Interface | LVDS |
|
Luminance (cd/m²) |
400 |
|
Active Area (mm) |
476.06*267.79 |
|

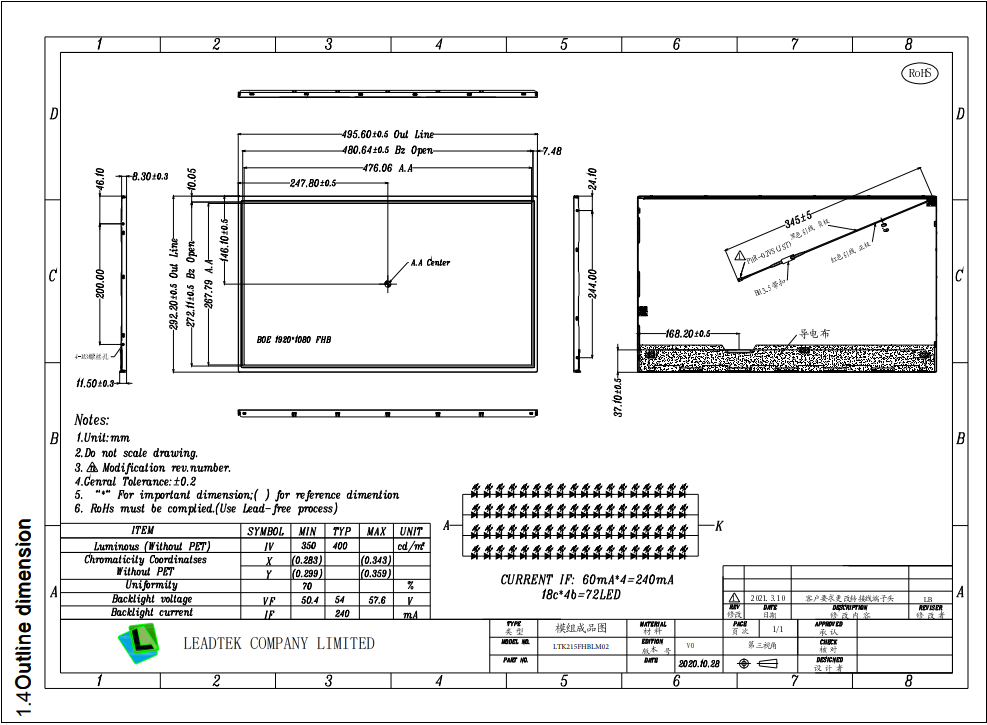

Outline Dimension (mm) |
495.60*292.20*11.50 |
| Operating Temp | -10℃ ~ +50℃ |
| Storage Temp | -20℃ ~ +60℃ |
