7 inch 800*480 Resolution TFT LCD Display Module

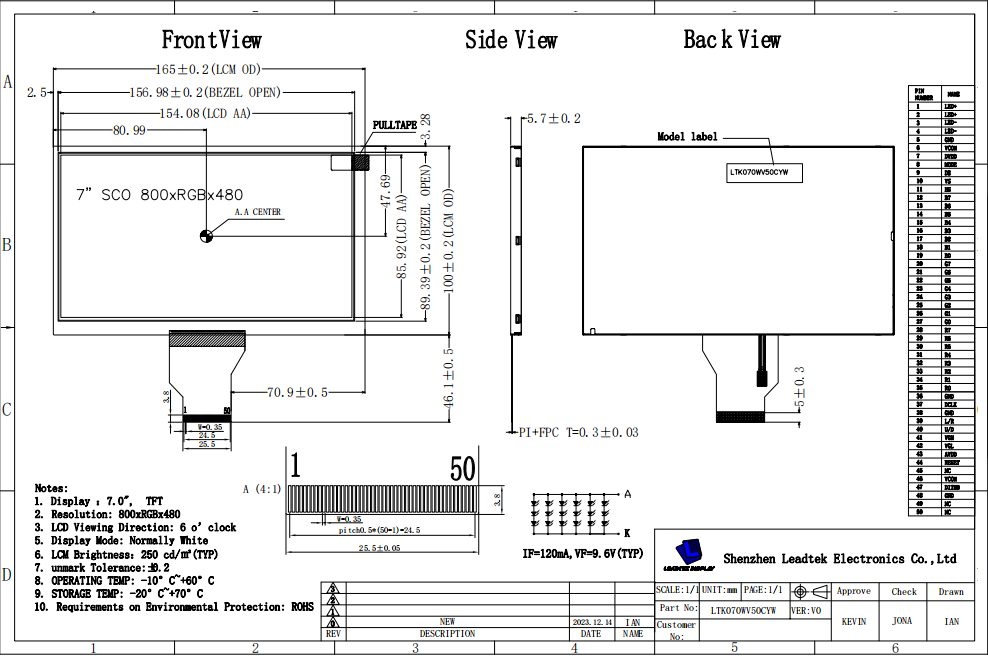

The LTK070WV50CYW-V0 is a 7.0-inch TN TFT LCD display with 800×480 (WVGA) resolution, designed for industrial HMI, automation, and IoT applications. Featuring a 250 cd/m² brightness level and an RGB interface, it delivers clear visibility in various lighting conditions. Its compact design (164.90 × 100.00 × 5.70 mm) and wide operating temperature range (-10°C to +60°C) ensure reliable performance in harsh industrial environments, making it ideal for factory control systems, smart machinery, and rugged embedded devices.
- Product Details
| Mode |
LTK070WV50CYW-V0 |
| Size(inch) | 7.0 |
|
Display Mode |
TN |
|
Resolution |
800*480 |
|
Interface |
RGB |
|
Luminance (cd/m²) |
250 |
|
Active Area(mm) |
154.08*85.92 |
|
Outline Dimension(mm) |
164.90*100.00*5.70 |
|
Operating Temp |
-10~+60℃ |
|
Storage Temp |
-20~+70℃ |
