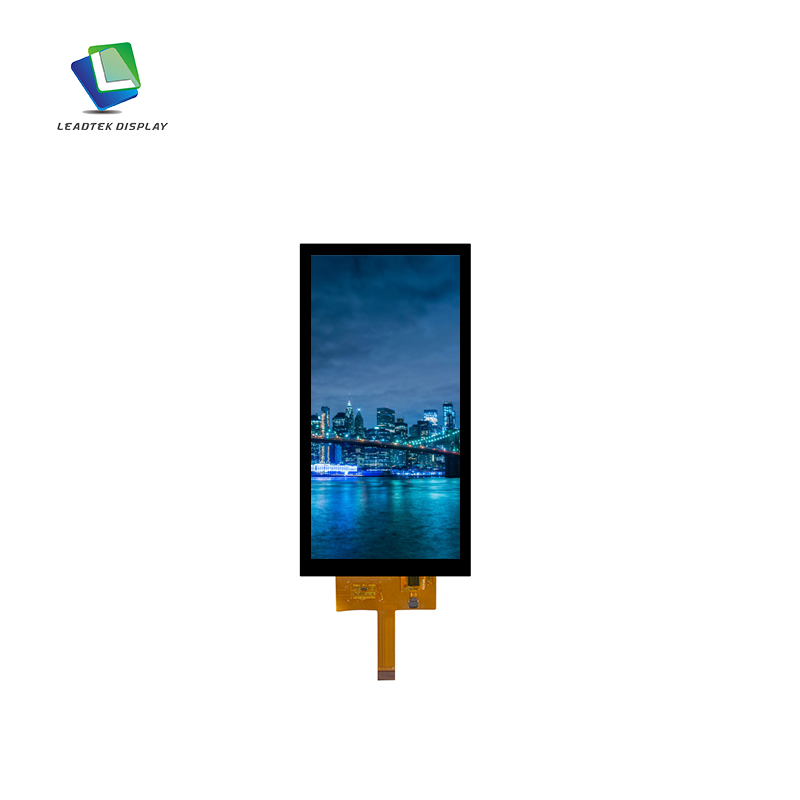

6.9 Inch TFT LCD with CTP 720*1440 Resolution MIPI Interface for Smart Home
The LTK069MNBCT12-V1 is a 6.9-inch TFT LCD Module with a capacitive touch panel, tailored for smart home devices, combining vibrant visuals and intuitive touch functionality to enhance user experience. With its slim design (89.02×170.65×4.38mm) and robust construction, the LTK069MNBCT12-V1 is the ideal solution for smart home applications, enabling seamless control and interaction with connected devices. It delivers both functionality and aesthetic appeal for modern living spaces.
- Product Details
| Part Number. | LTK069MNBCT12-V1 |
| Type of LCD panel | 6.9" TFT LCM + CTP |
| View angle | IPS |
| Interface | MIPI |
| Resolution | 720*1440 |
| Luminance (cd/m²) | 270 |
| Active Area(mm) | 78.02*156.04 |
|
CTP+LCM Outline Dimension(mm) |
89.02*170.65*4.38 |
| Touch Screen | CTP |
| Touch Screen Structure | G+G |
| Touch screen IC model | GT911 |
| Touch screen interface | IIC |
| Operating Temp | -20-70℃ |
| Storage Temp | -30-80℃ |
| Application | Smart Home |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
