5.0 inch 720*1280 500nits TDDI TFT Display with MIPI Interface

The LTK050FTBLM47-V0 is a 5.0-inch TDDI color display module designed for reliable performance in modern embedded applications. It features a MIPI interface and IPS technology, ensuring consistent viewing quality and stable operation. With a brightness of 520 cd/m², it is well-suited for indoor and semi-outdoor environments. Its slim and compact form factor allows easy integration into various devices, while its wide operating temperature range of -20°C to +70°C ensures durability under different conditions. This module is ideal for smart transportation and smart home applications, such as access control systems and security monitoring devices.

Inquire Now

BackPrevious Next

Product Details

Part Number	LTK050FTBLM47-V0
Size(inch)	5.0
Display Mode	IPS
Resolution	720*1280
Interface	MIPI
Luminance (cd/m²)	520

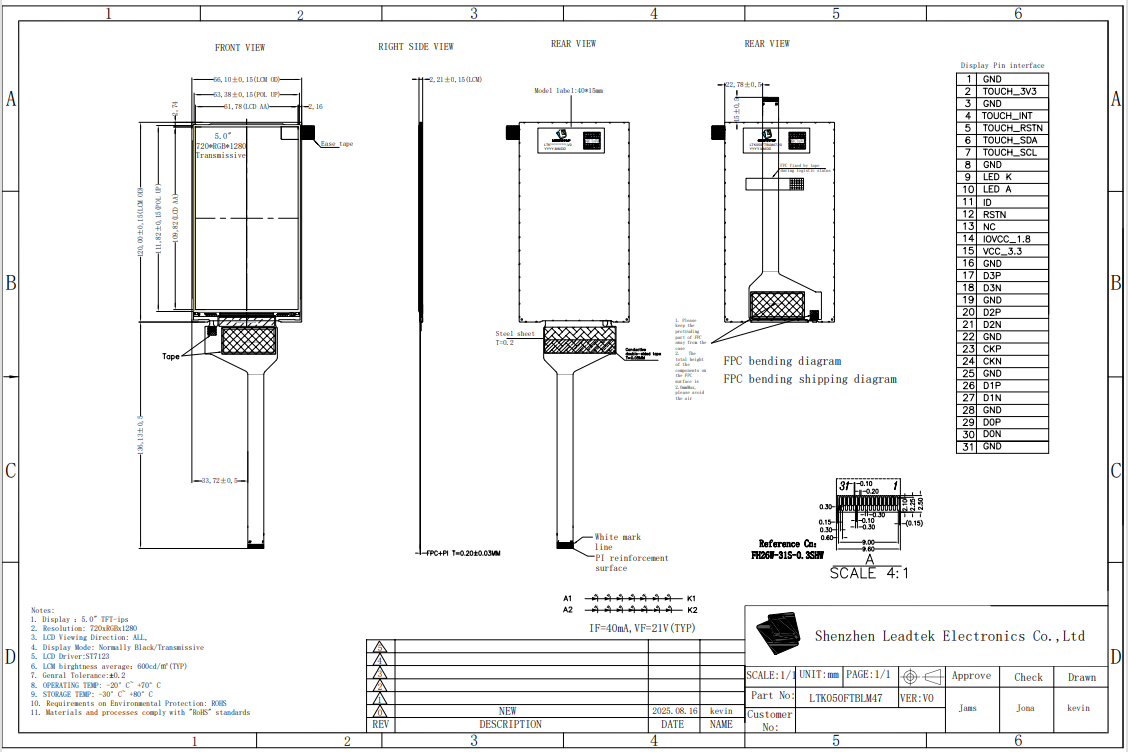

Active Area(mm)	62.10(W)*110.40(L)
Outline Dimension(mm)	66.10(W)120.00(L)2.21(T)
CTP Driver IC	ST7123
Operating Temp	-20~+70℃
Storage Temp	-30~+80℃
