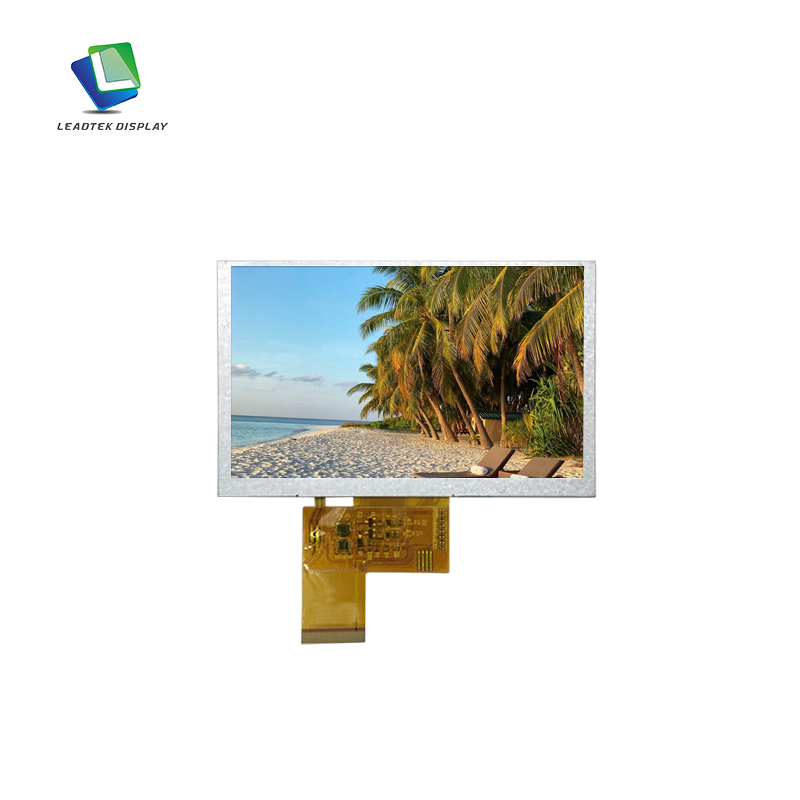

4.3" 800*480 IPS TFT LCD Display with High Brightness 1200Nits
The LTK043WVHLM26-V0 4.3-inch display uses an IPS panel with a resolution of up to 800x480 pixels and is equipped with an RGB interface for vivid and sharp visual effects. The effective display area measures 95.04 (H) x 53.86 (V) mm, and the overall size is 104.96 (H) x 66.66 (V) x 2.80 (T) mm. The display has a brightness of up to 1200nits and an operating temperature range of -20℃ to +70℃, which is very suitable for smart medical scene applications. It also has a long battery life and can work normally even in harsh environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 4.3 |
| Part Number. | LTK043WVHLM26-V0 |
| Display Mode | IPS |
| Resolution | 800*480 |
| Interface | RGB |
| Luminance (cd/m²) | 1200 |
| Active Area (mm) | 95.04 (H) × 53.86(V) |
| Outline Dimension (mm) | 104.96(H)×66.66(V)×2.80(T) |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp | -30℃~ +80℃ |

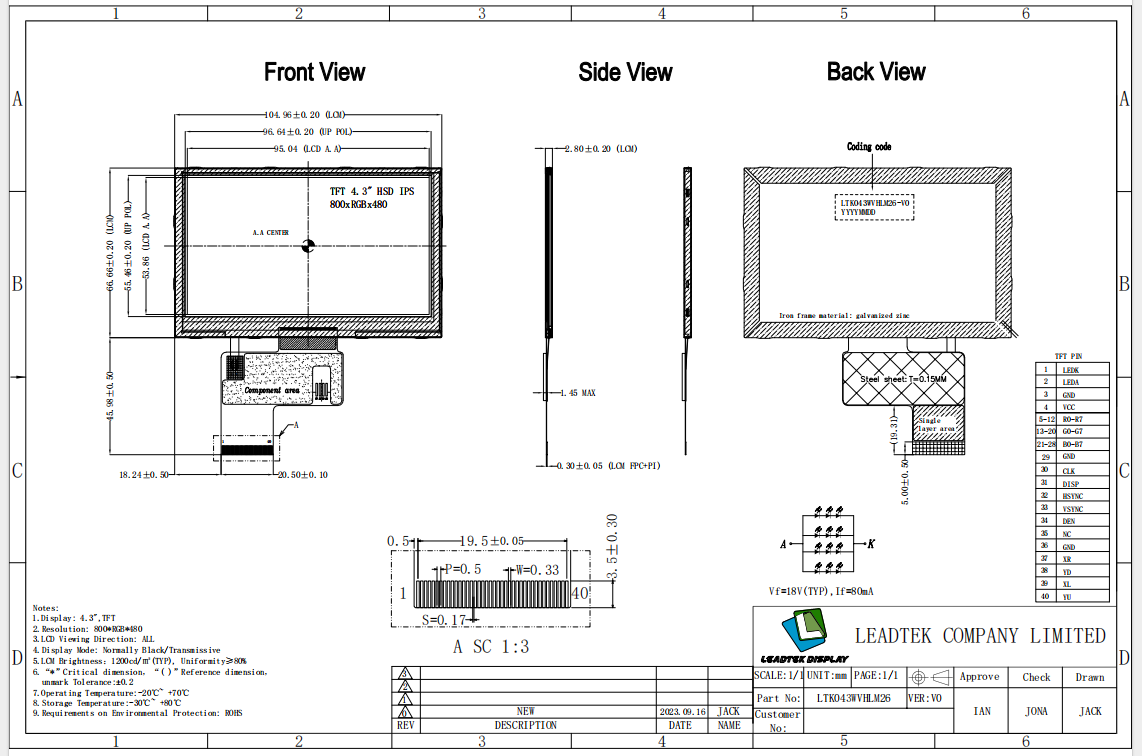

PRODUCT DRAWING
