4.3" 480*272 Normally Black TFT LCD with RGB Interface,600 nits
The LTK430WQ12B-V0 4.3-inch display features a resolution of 480x272 pixels with an RGB interface, delivering clear and vibrant visuals on a normally black background. The active area measures 95.04(W) x 53.856(H) mm, with overall dimensions of 105.5(W) x 67.2(H) x 2.9(T) mm. This display operates within a temperature range of -20℃ to +70℃, making it ideal for a variety of applications, from consumer electronics to industrial controls, even in challenging environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 4.3 |
| Part Number. | LTK430WQ12B-V0 |
| Display Mode | Normally Black |
| Viewing Angle | IPS |
| Resolution | 480*272 |
| Interface | RGB |
| Luminance (cd/m²) | 600 |
| Active Area (mm) | 95.04*53.86 |
| Outline Dimension (mm) | 105.50*67.20*3.00 |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp | -30℃~ +80℃ |

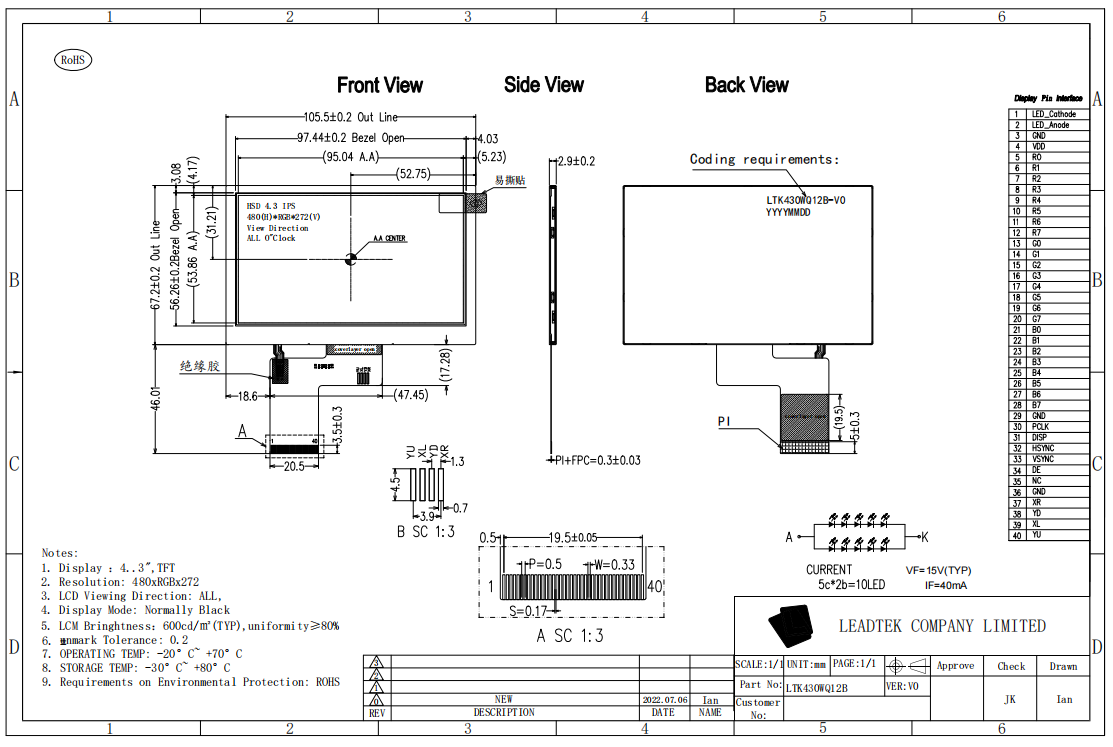

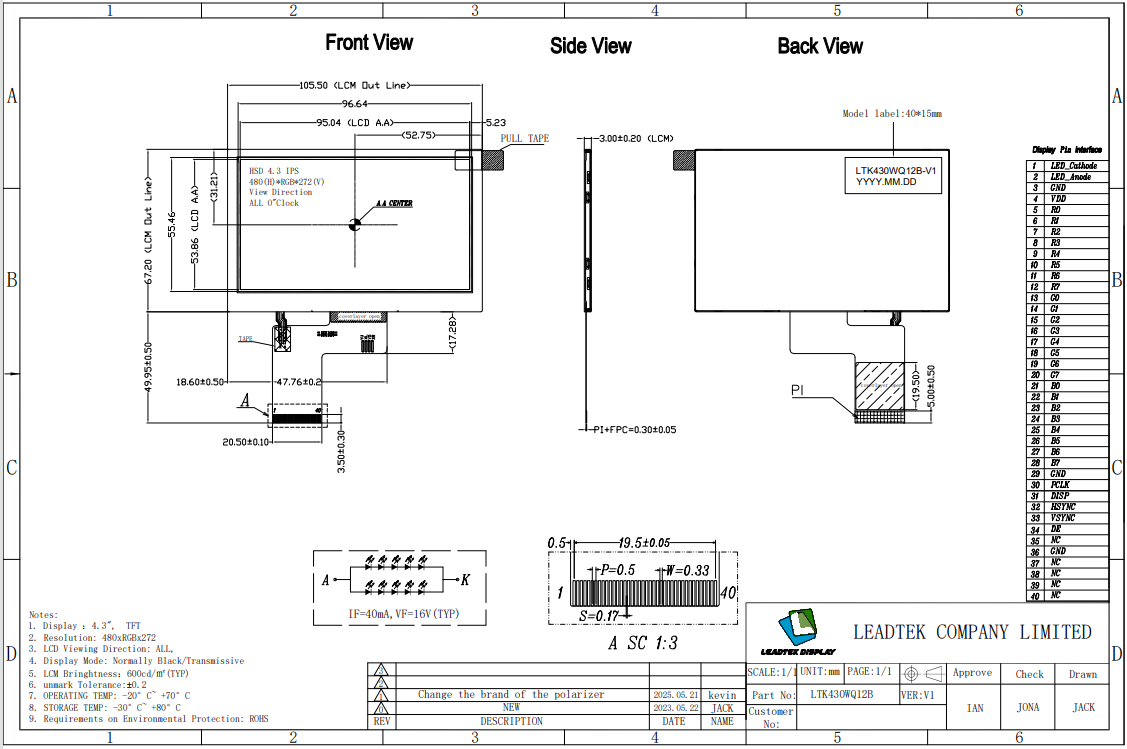

PRODUCT DRAWING
