3.97-inch Portrait IPS MIPI TFT LCD Module for Smart Industrial Applications
The LTK040FTBLM60-V0 is a 3.97-inch portrait TFT LCD module designed for smart industrial and embedded HMI applications. Featuring a 480 × 800 resolution, IPS wide viewing angle, and 350 cd/m² brightness, it delivers clear and consistent image performance. The module supports a MIPI interface with expandable RGB and SPI interfaces, providing greater flexibility for system integration. Its compact design and reliable operating temperature range of -20°C to +70°C make it an ideal display solution for industrial control panels, handheld terminals, instrumentation, and other smart industrial devices.

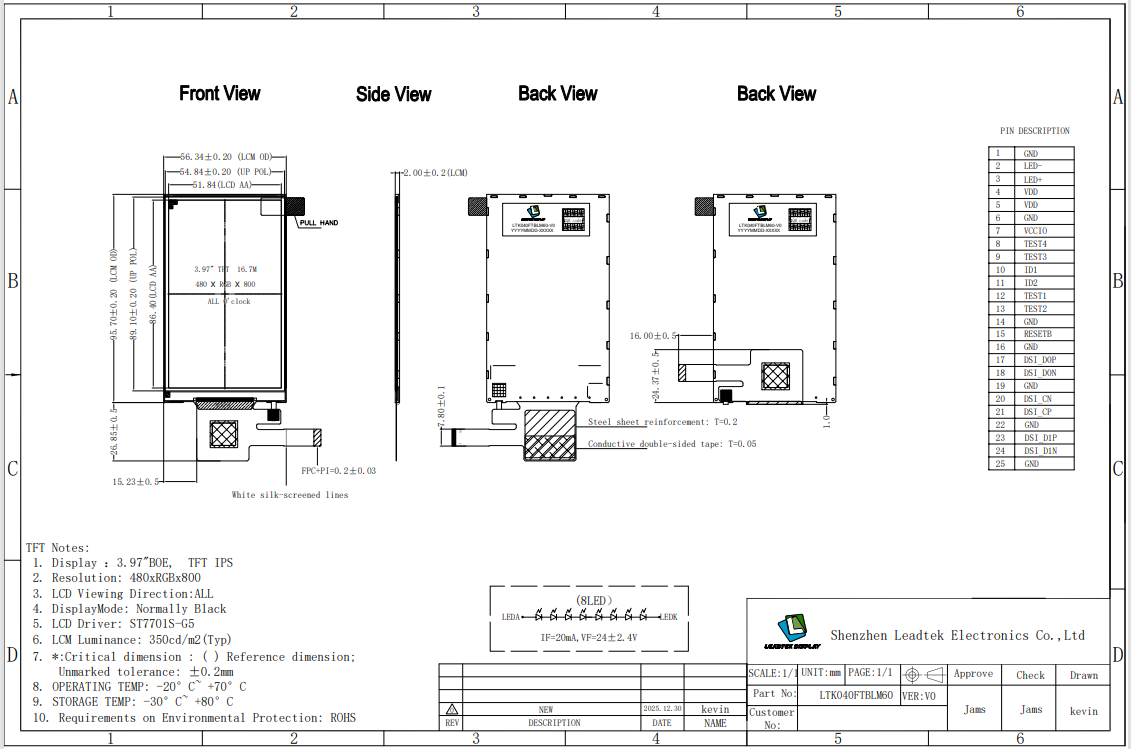

- Product Details
| Part Number. |
LTK040FTBLM60-V0 |
| LCD Size(inch) | 3.97 |
|
Display Mode |
IPS |
|
Resolution |
480*800 |
|
Interface |
MIPI |
|
Expandable Interfaces |
RGB+SPI |
|
Brightness(cd/m²) |
350 |
| Module IC | ST7701S-G5 |
|
Active Area(mm) |
51.84*86.40 |
|
Outline Dimension(mm) |
56.34*95.70*2.00 |
| Touch Screen | NA |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
